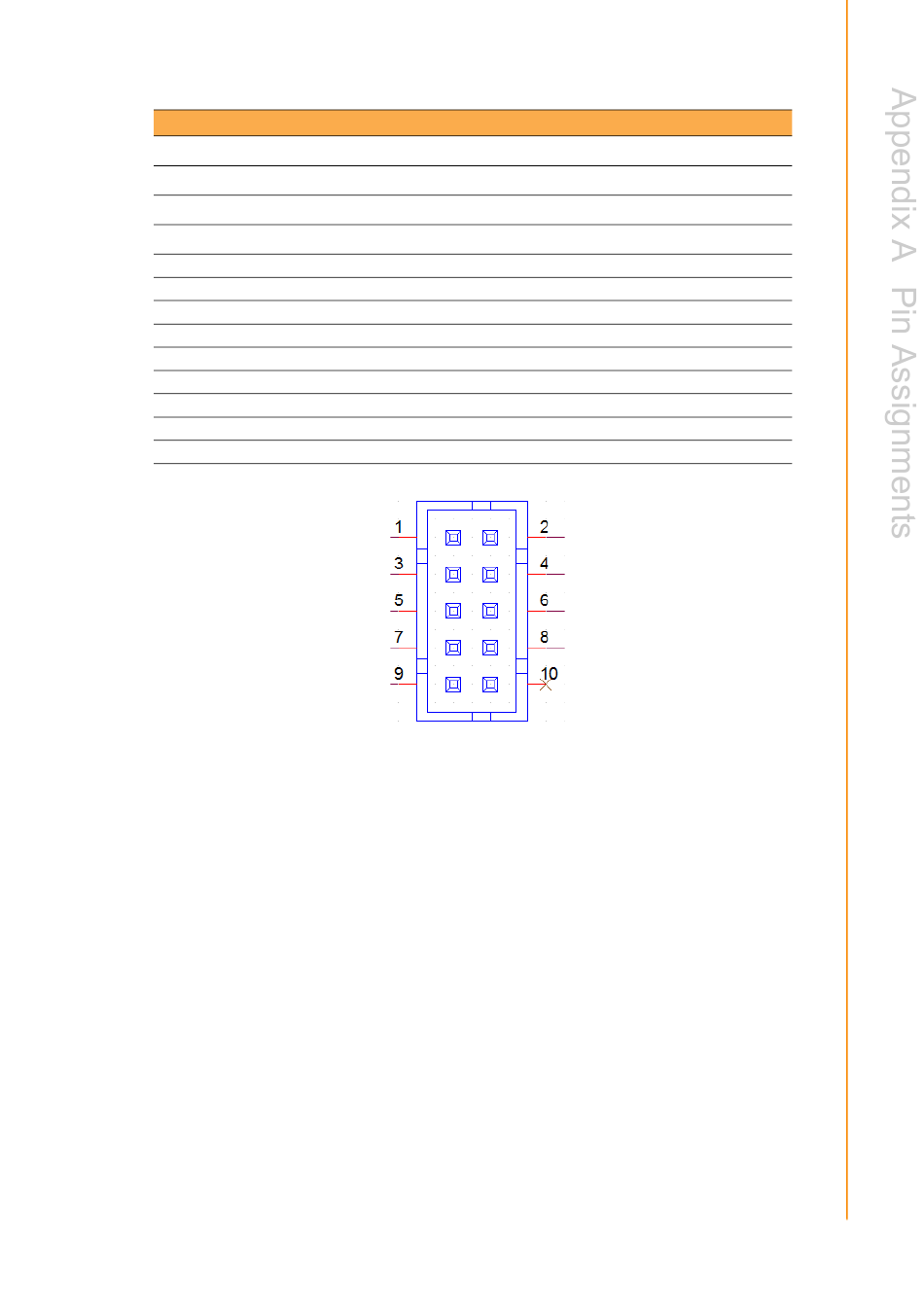

Table A.26: CN11(E): CSAFE
1655000197
Part Number
WF_5x2P_79_BOX_D_P1R
Footprint
1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Description
Pin
Pin Name
1
LINE_IN1_L
2
LINIE_IN1_R
3
COM3_ RX+
4
COM3_TX
5
V_CSAFE
6
COM3_CTS#
7
GND
8
GND
9
59
