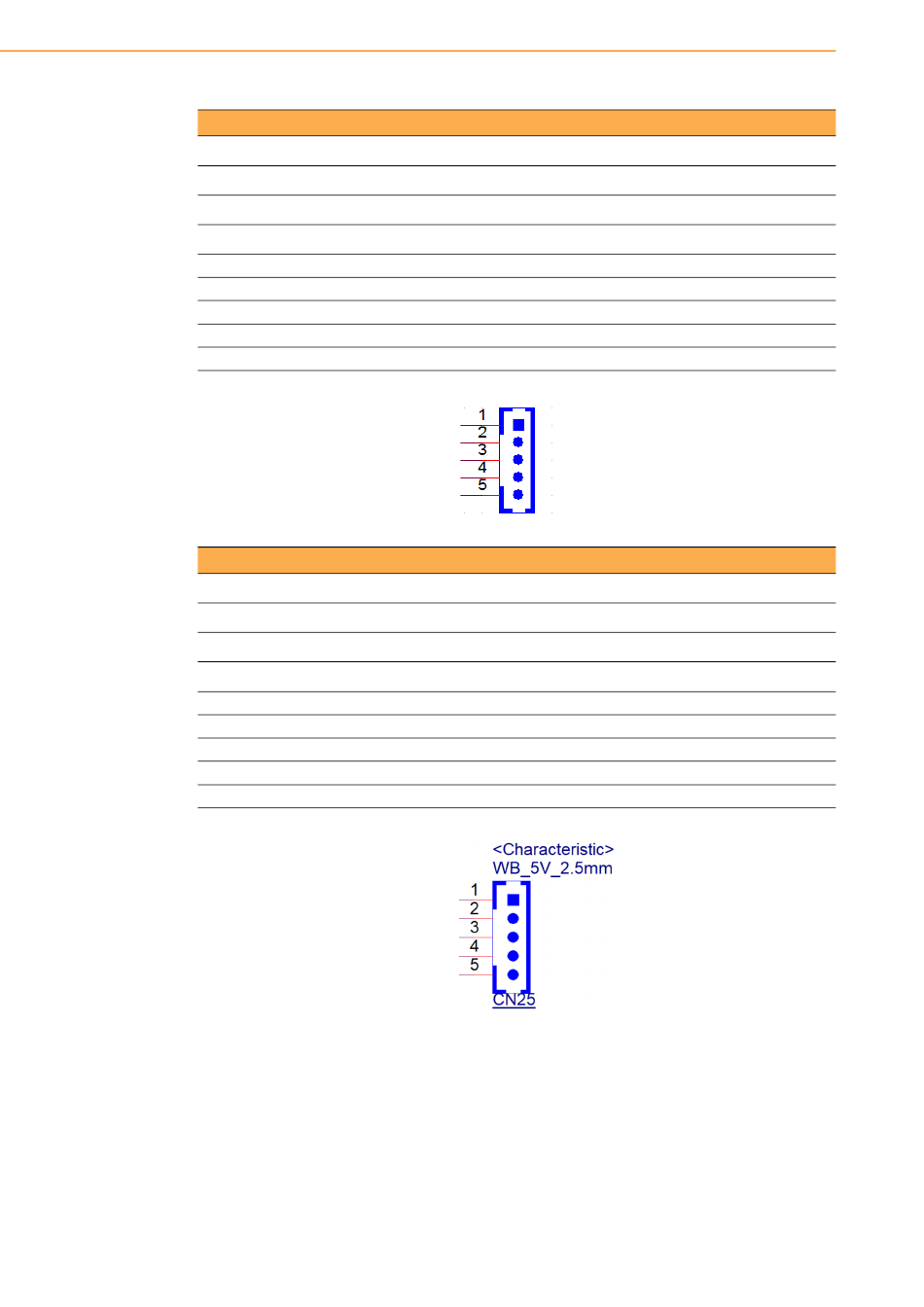

Table A.15: CN7(D), CN3(EFG), CN25(H): SATA POWER
Part Number
Footprint
Description
Pin
1
2
3
4
5
Table A.16: CN25(I): SATA POWER
Part Number
Footprint
Description
Pin
1
2
3
4
5
UTC-318 User Manual
1659254005
SATA_7P_WATM-07DBN4A3B8UW_D
Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8
Pin Name
+3.3V
GND
+5V
GND
+12V
1653006503-01
WF_5P_98_BOX_D_24W1170
WAFER BOX 5P 2.5mm 180D(M) DIP 24W1170-05S10-01T
Pin Name
+12V
GND
+5V
GND
+3.3V
