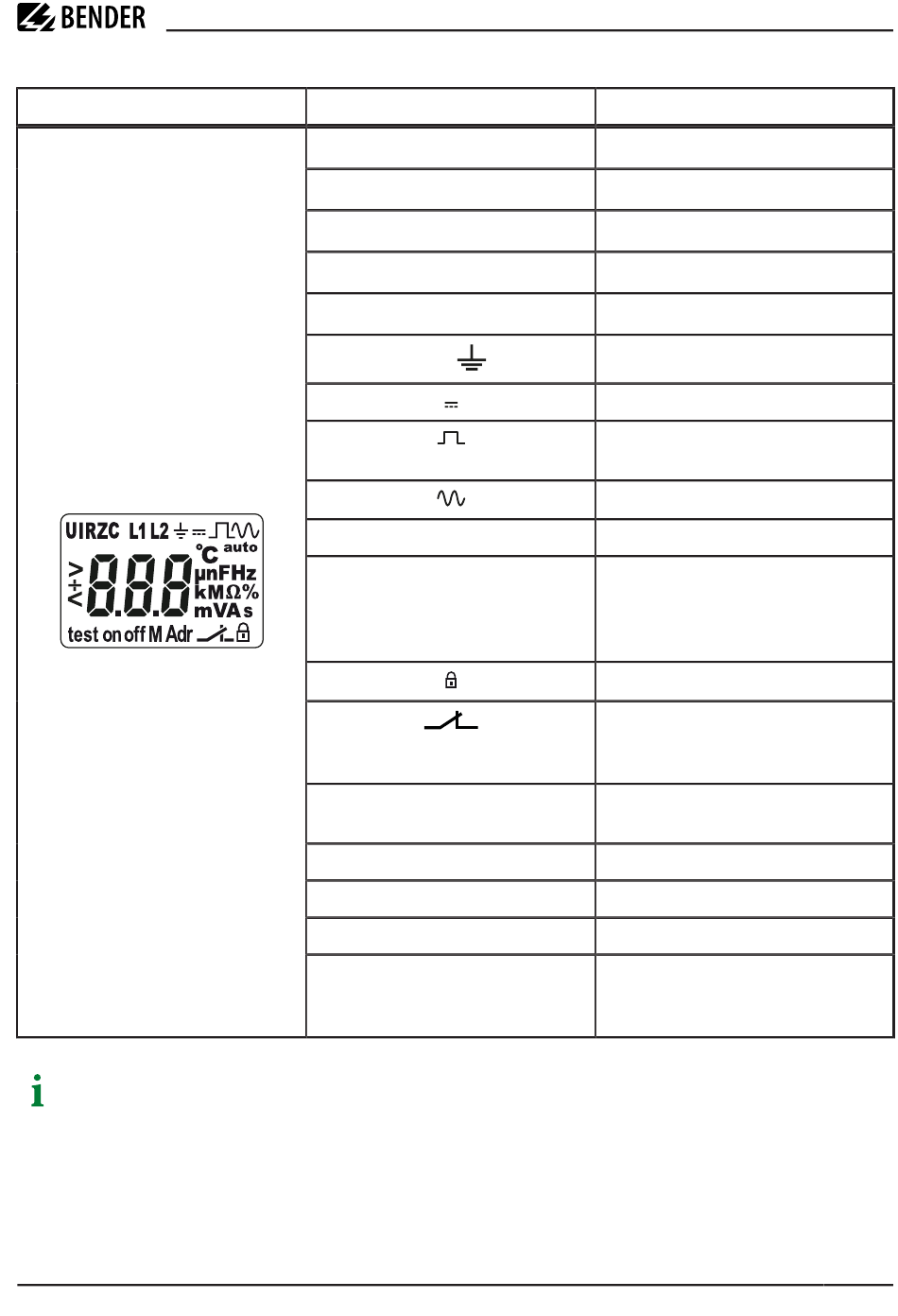

Display
The display parameters that can be configured flash.
Display elements
U
I
R
Z
C
L1 L2
auto
°C
μ n F Hz
k M Ω %
m V A s
Adr
M
on / off
test
>
+
<
ISOMETER® isoGEN423
Function
Nominal system voltage U
Amperage I
n
Insulation resistance R
Impedance Z
F
System leakage capacitance C
Monitored conductors
Voltage type DC
Pulse symbol: error-free measured
value update
Voltage type AC
Automatic self test active
Measured values and units
Password protection is activated
In the menu mode, the operating
mode of the respective alarm relay is
displayed.
Communication interface with
measured value: isoData operation
Fault memory is activated
Condition symbols
Self test is active
Identification for response values and
response value violation
