6.3.3.2 Control unit connection

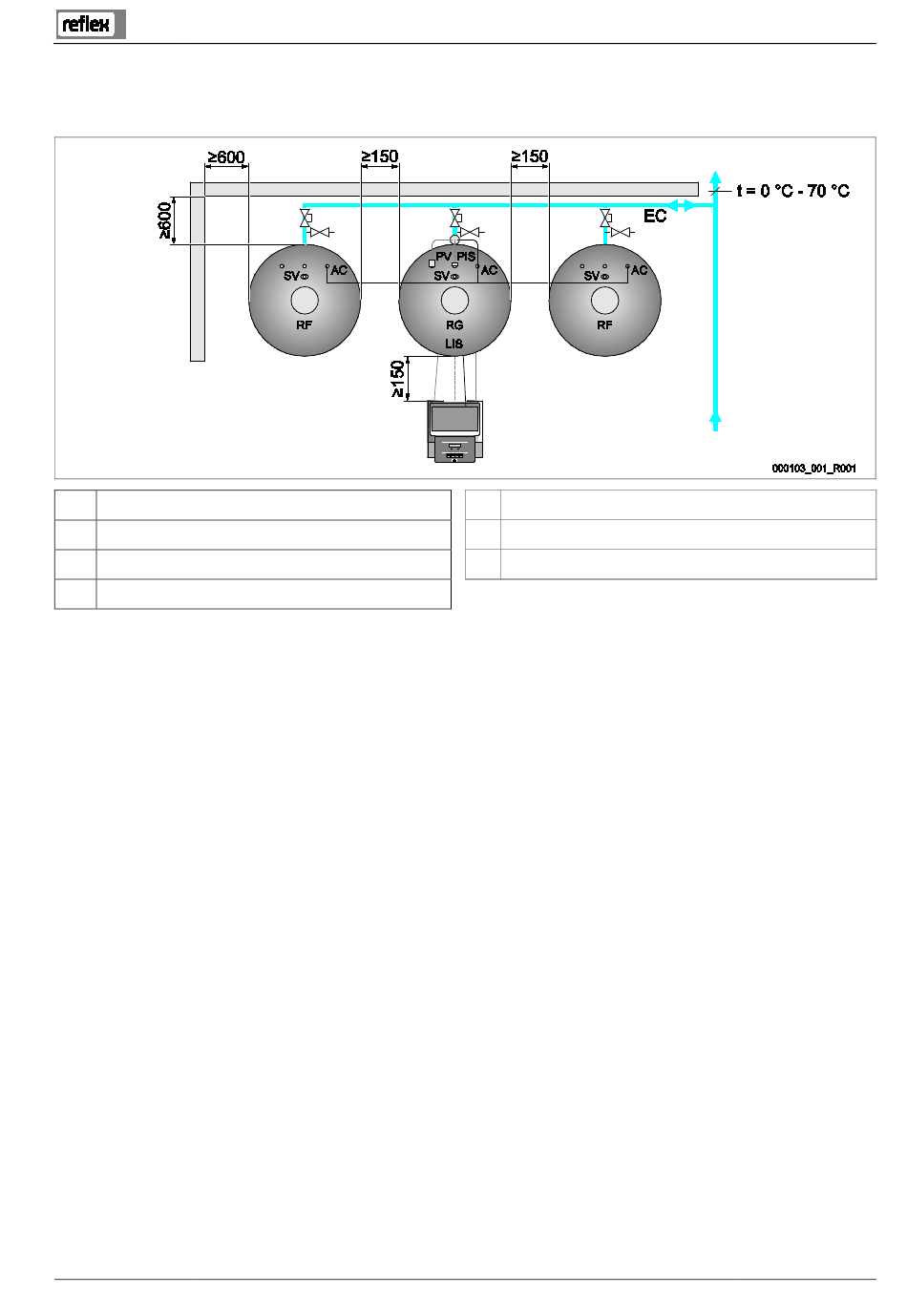

The following describes the exemplary installation of the control unit before the primary tank and the connection of two secondary
tanks. Proceed accordingly for other installation variants.
RF Secondary tank
RG Primary tank
SV Safety valve
PV Overflow solenoid valve
• The "PV" overflow solenoid valve, the "PIS" pressure transducer and the corresponding cables are factory-installed on the primary
tank.
– Run the cable through the assembly pipe on the rear of the primary tank to the control unit.
– Cables are factory-installed in compact models.
• Subsequently install the level sensor at the primary tank, see chapter 6.3.5 "Fitting the level sensor" on page 25 .
– Attach the cable to the "LIS" pressure pick-up of the level sensor and run the cable to the control unit.
– For compact models, run the cable through the assembly pipe on the rear of the primary tank if it has not been factory-
installed.
• The flexible compressed air hose is connected with the control unit. Run the compressed air hose through the assembly pipe as well.
– If you install only the primary tank, you must connect the compressed air hose directly to the "AC" compressed air connection
of the primary tank.
– If you install secondary tanks, you install first the supplied distributor at the compressed air connection of the primary tank.
– Use the supplied connection sets to connect the secondary tanks.
PIS Pressure sensor
AC
EC
Reflexomat with Basic controller — 20.06.2017 - Rev. C
Compressed air line
Expansion line
