6.5.1

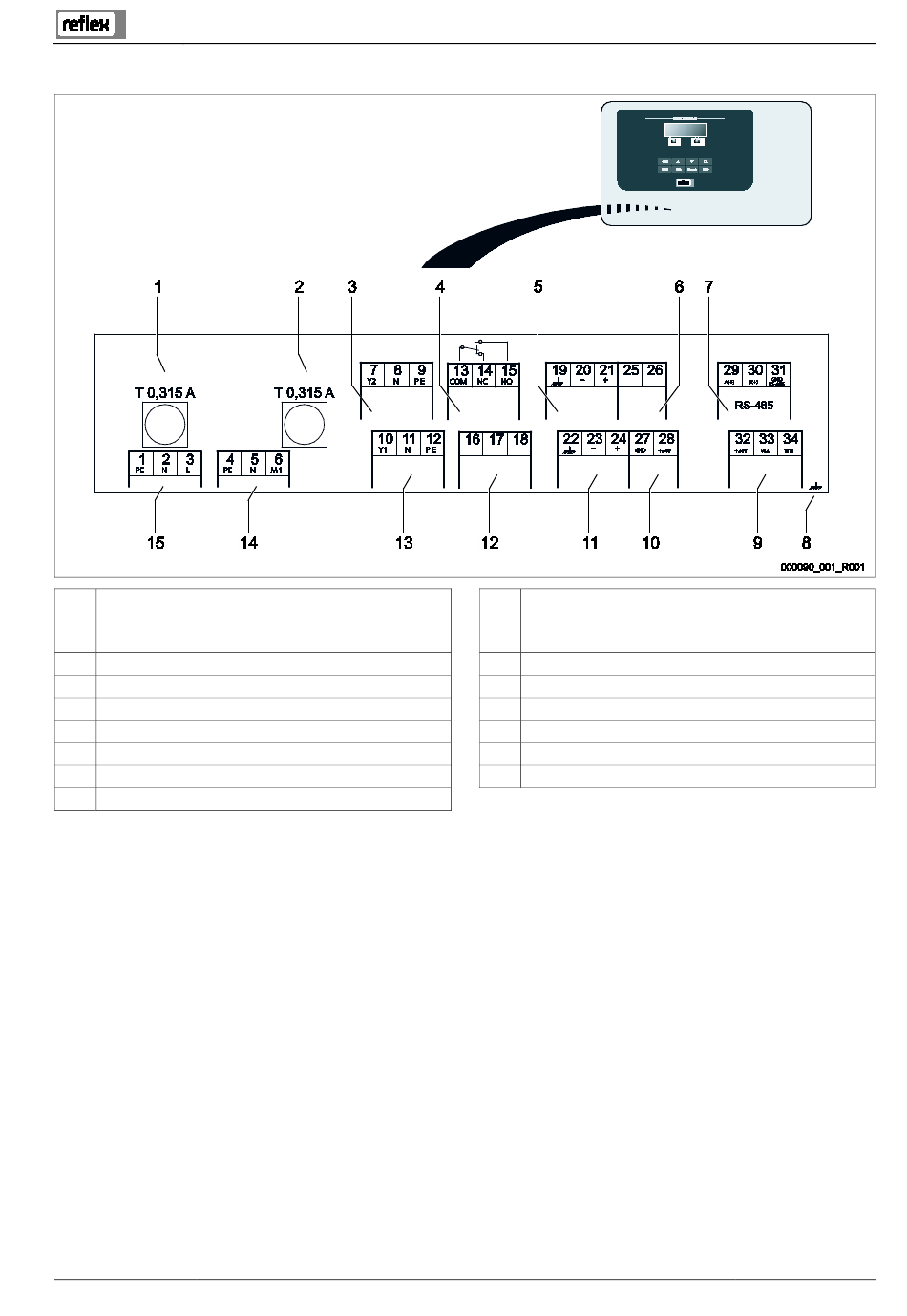

Terminal diagram

1 "L" fuse for electronics and solenoid valves
2 "N" fuse for solenoid valves
3 Overflow valve (not for motor ball valve)
4 Group message
5 Optional for second pressure value
6 Motor ball valve (control connection)
7 RS-485 interface
8 Shielding
Reflexomat with Basic controller — 20.06.2017 - Rev. C
9 Digital inputs
• Water meter
• Insufficient water
10 Motor ball valve (energy connection)
11 Pressure analogue input
12 External make-up request
13 Make-up valve
14 "CO" compressor
15 Mains supply
Installation
English — 29
