2.1

Quick Start

Connect the adapter to the "DC Input Jack". Please note that using a non-genuine
adapter may pose a potential risk to the system.
Press "Power On/Off". The button will turn white.
Installed only by qualified service person. Go to
contact information.
2.2

COM Ports Setup

2.2.1

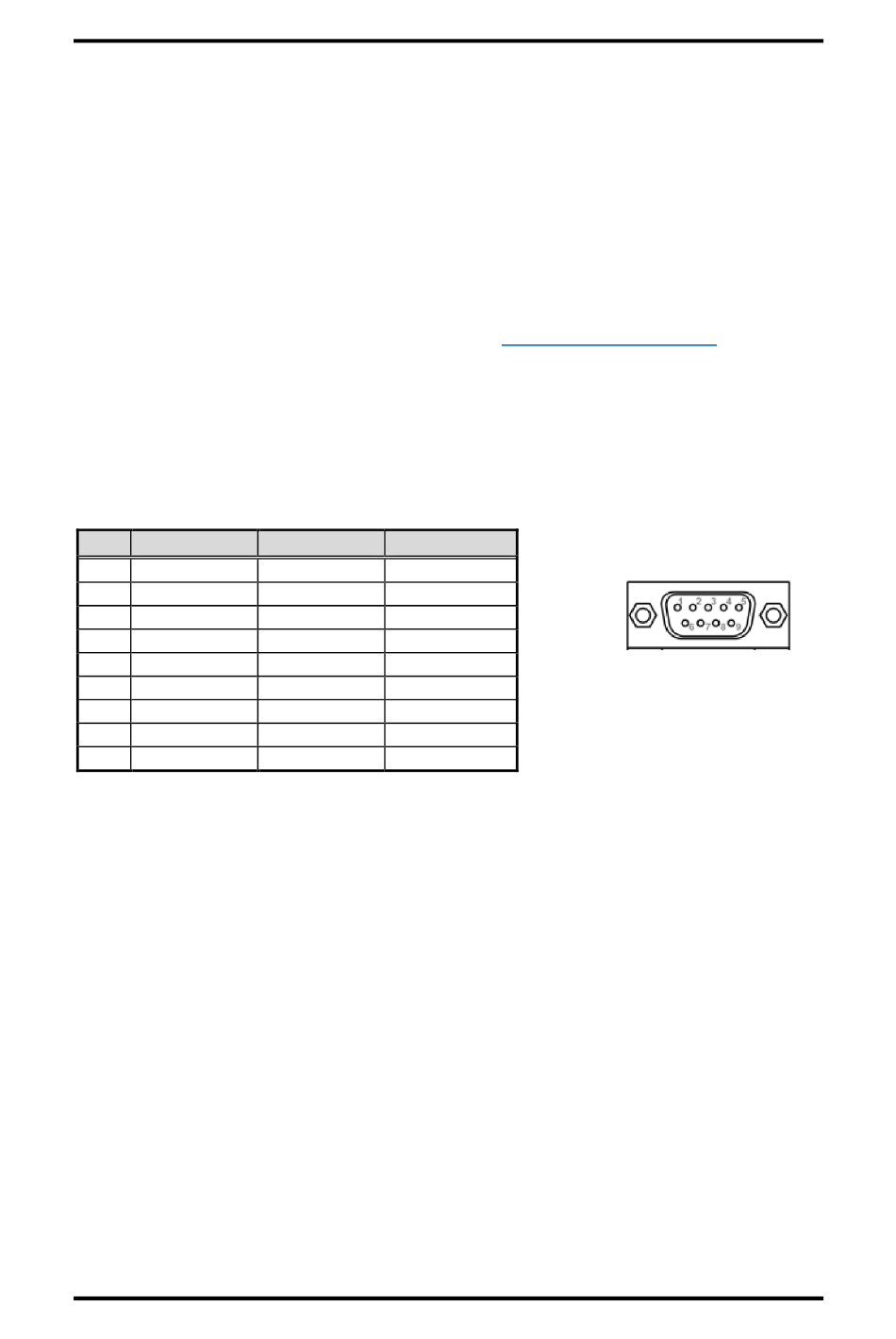

COM Ports Pin Definition

Pin RS-232
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
2.2.2

COM Ports Mode Selection

The users can choose to use RS232, RS422 or RS485 function through BIOS settings.

System Setup

RS-422 RS-485
TX- Data-
TX+ Data+
RX+ No use
RX- No use
No use No use
No use No use
No use No use
No use No use
No use No use
