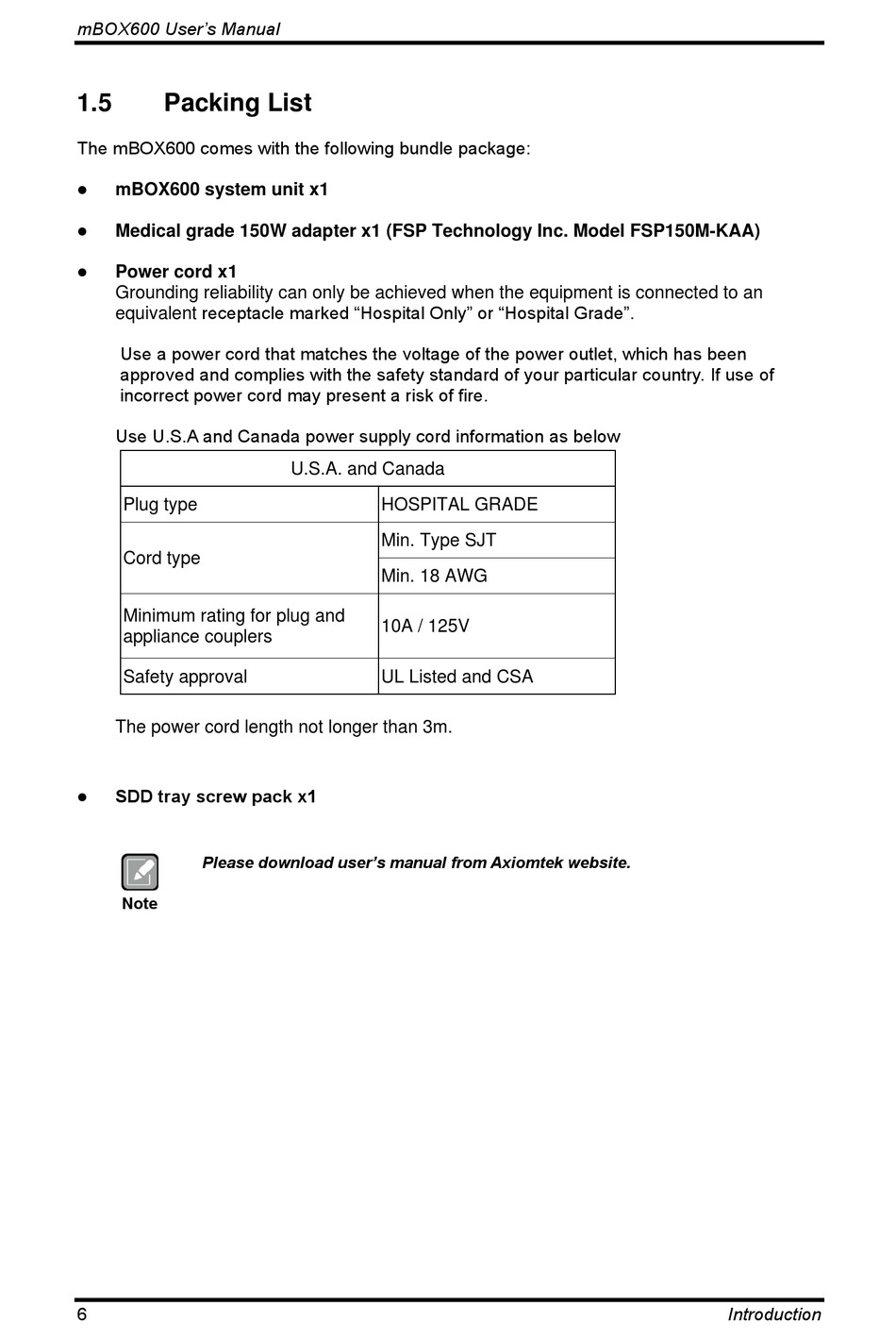

Packing List - AXIOMTEK mBOX600 User Manual

mBOX600 User's Manual
1.5

Packing List

The mBOX600 comes with the following bundle package:
⚫ mBOX600 system unit x1
⚫ Medical grade 150W adapter x1 (FSP Technology Inc. Model FSP150M-KAA)
⚫ Power cord x1
Grounding reliability can only be achieved when the equipment is connected to an
equivalent receptacle marked "Hospital Only" or "Hospital Grade".
Use a power cord that matches the voltage of the power outlet, which has been
approved and complies with the safety standard of your particular country. If use of
incorrect power cord may present a risk of fire.
Use U.S.A and Canada power supply cord information as below
Plug type
Cord type
Minimum rating for plug and
appliance couplers
Safety approval
The power cord length not longer than 3m.
SDD tray screw pack x1
⚫
Please download user's manual from Axiomtek website.
Note
6
U.S.A. and Canada
HOSPITAL GRADE
Min. Type SJT
Min. 18 AWG
10A / 125V
UL Listed and CSA
Introduction
