Cabling

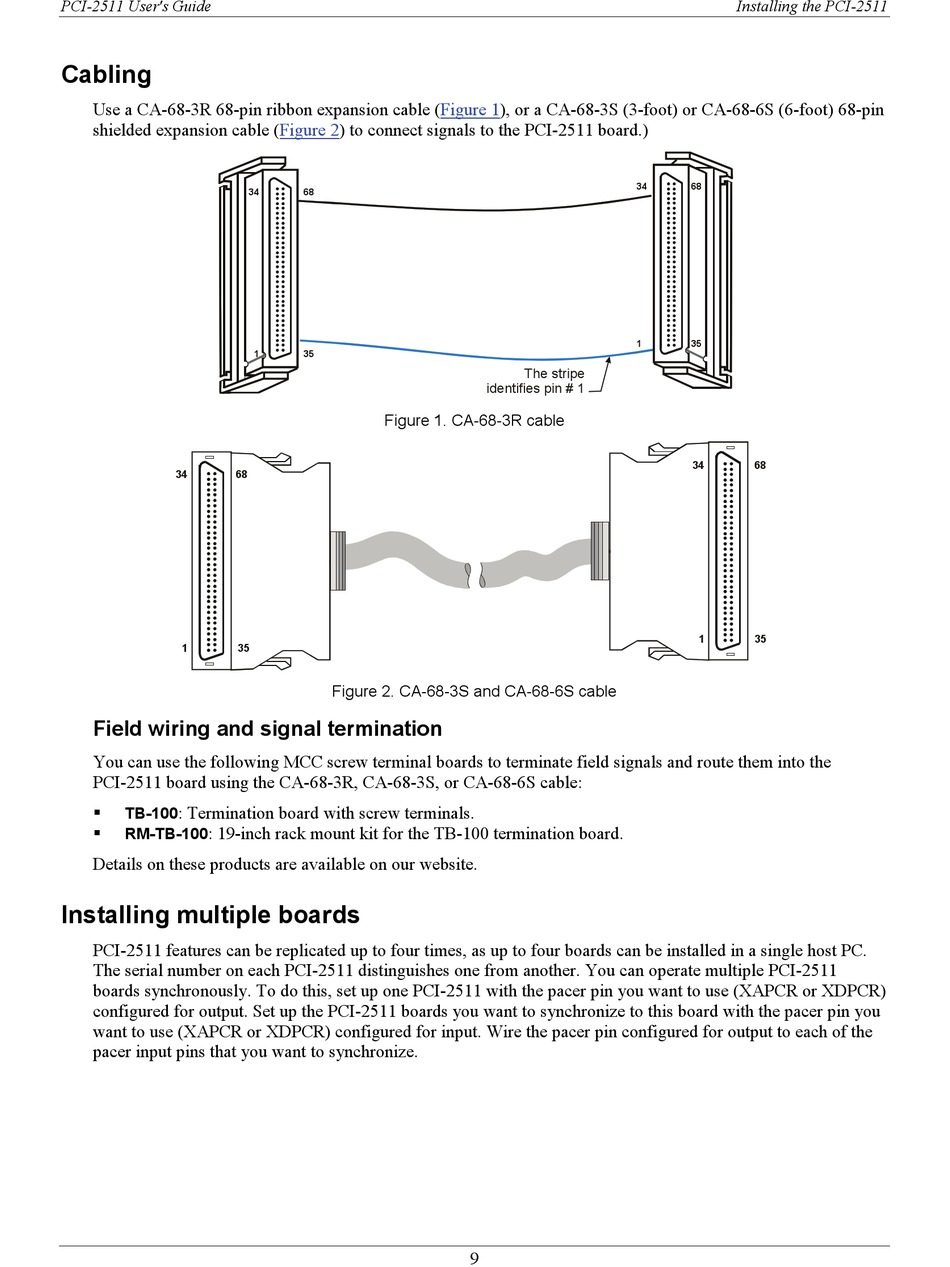

Use a CA-68-3R 68-pin ribbon expansion cable
shielded expansion cable
34 68
1 35

Field wiring and signal termination

You can use the following MCC screw terminal boards to terminate field signals and route them into the
PCI-2511 board using the CA-68-3R, CA-68-3S, or CA-68-6S cable:
: Termination board with screw terminals.
TB-100

: 19-inch rack mount kit for the TB-100 termination board.
 RM-TB-100
Details on these products are available on our website.

Installing multiple boards

PCI-2511 features can be replicated up to four times, as up to four boards can be installed in a single host PC.
The serial number on each PCI-2511 distinguishes one from another. You can operate multiple PCI-2511
boards synchronously. To do this, set up one PCI-2511 with the pacer pin you want to use (XAPCR or XDPCR)
configured for output. Set up the PCI-2511 boards you want to synchronize to this board with the pacer pin you
want to use (XAPCR or XDPCR) configured for input. Wire the pacer pin configured for output to each of the
pacer input pins that you want to synchronize.
(Figure 2) to connect signals to the PCI-2511 board.)
34 68
1 35
Figure 1. CA-68-3R cable
Figure 2. CA-68-3S and CA-68-6S cable
(Figure 1), or a CA-68-3S (3-foot) or CA-68-6S (6-foot) 68-pin
The stripe
identifies pin # 1
