PCI-2517 User's Guide

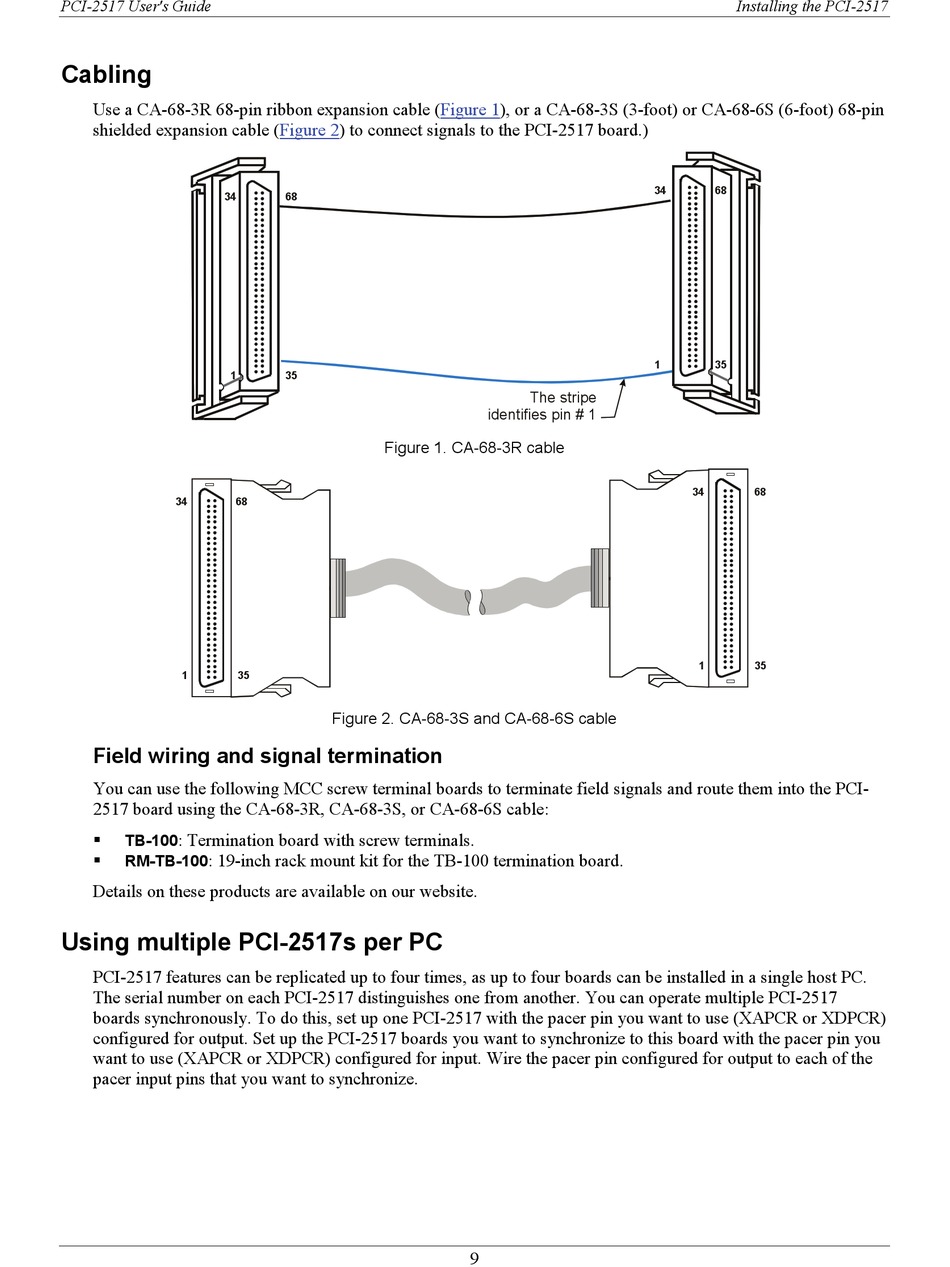

Cabling

Use a CA-68-3R 68-pin ribbon expansion cable
shielded expansion cable
34
1
34 68
1 35

Field wiring and signal termination

You can use the following MCC screw terminal boards to terminate field signals and route them into the PCI-
2517 board using the CA-68-3R, CA-68-3S, or CA-68-6S cable:
: Termination board with screw terminals.
TB-100

: 19-inch rack mount kit for the TB-100 termination board.
 RM-TB-100
Details on these products are available on our website.

Using multiple PCI-2517s per PC

PCI-2517 features can be replicated up to four times, as up to four boards can be installed in a single host PC.
The serial number on each PCI-2517 distinguishes one from another. You can operate multiple PCI-2517
boards synchronously. To do this, set up one PCI-2517 with the pacer pin you want to use (XAPCR or XDPCR)
configured for output. Set up the PCI-2517 boards you want to synchronize to this board with the pacer pin you
want to use (XAPCR or XDPCR) configured for input. Wire the pacer pin configured for output to each of the
pacer input pins that you want to synchronize.
(Figure
(Figure 2) to connect signals to the PCI-2517 board.)
68
35
Figure 1. CA-68-3R cable
Figure 2. CA-68-3S and CA-68-6S cable
1), or a CA-68-3S (3-foot) or CA-68-6S (6-foot) 68-pin
The stripe
identifies pin # 1
9
Installing the PCI-2517
34 68
1 35
34 68
1 35
