Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections. This document is available on our web site at www.mccdaq.com/signals/signals.pdf.

Cabling

1
19
1
20
37
19

Field wiring and signal termination

You can connect the PCI-DIO24 to the following termination boards using the C37FF-x or C37FFS-x cable:
 SCB-37 — 37-conductor, shielded signal connection/screw terminal box that provides two independent 37-
pin connections.
 CIO-MINI37 — 4 x 4, 37-pin screw terminal board.
 CIO-MINI37-VERT — 37-pin screw terminal accessory with vertical 37-pin male D connector.
 CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.
Details on these products are available on our web site at
www.mccdaq.com/products/screw_terminal_bnc.aspx.
The following relay racks and accessory boards can be used with the PCI-DIO24:
 SSR-RACK24 — 24-position solid state relay rack..
 SSR-RACK08 — Eight-channel solid state relay rack.
 CIO-ERB08 — Eight-channel electromechanical relay accessory for digital I/O boards.
 CIO-SERB08 — Eight Form C and ten socketed relay accessory for digital I/O boards.
 CIO-ERB24 — 24-channel electromechanical relay accessory for digital I/O boards.
Details on these products are available on our web site at www.mccdaq.com/products/signal_conditioning.aspx.
20
37

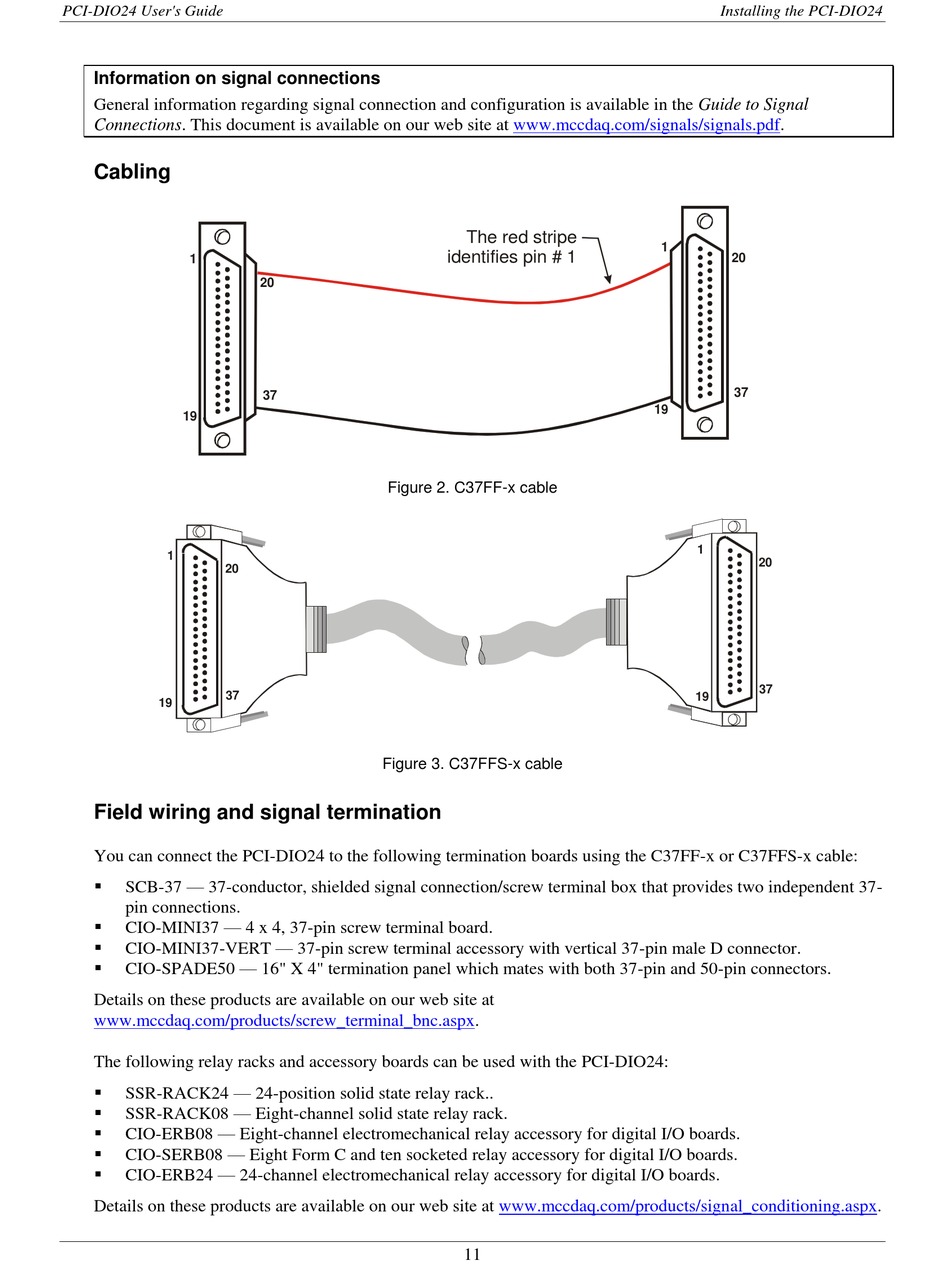

Figure 2. C37FF-x cable
Figure 3. C37FFS-x cable
The red stripe
identifies pin # 1
11
Installing the PCI-DIO24
