USB-2020 User's Guide

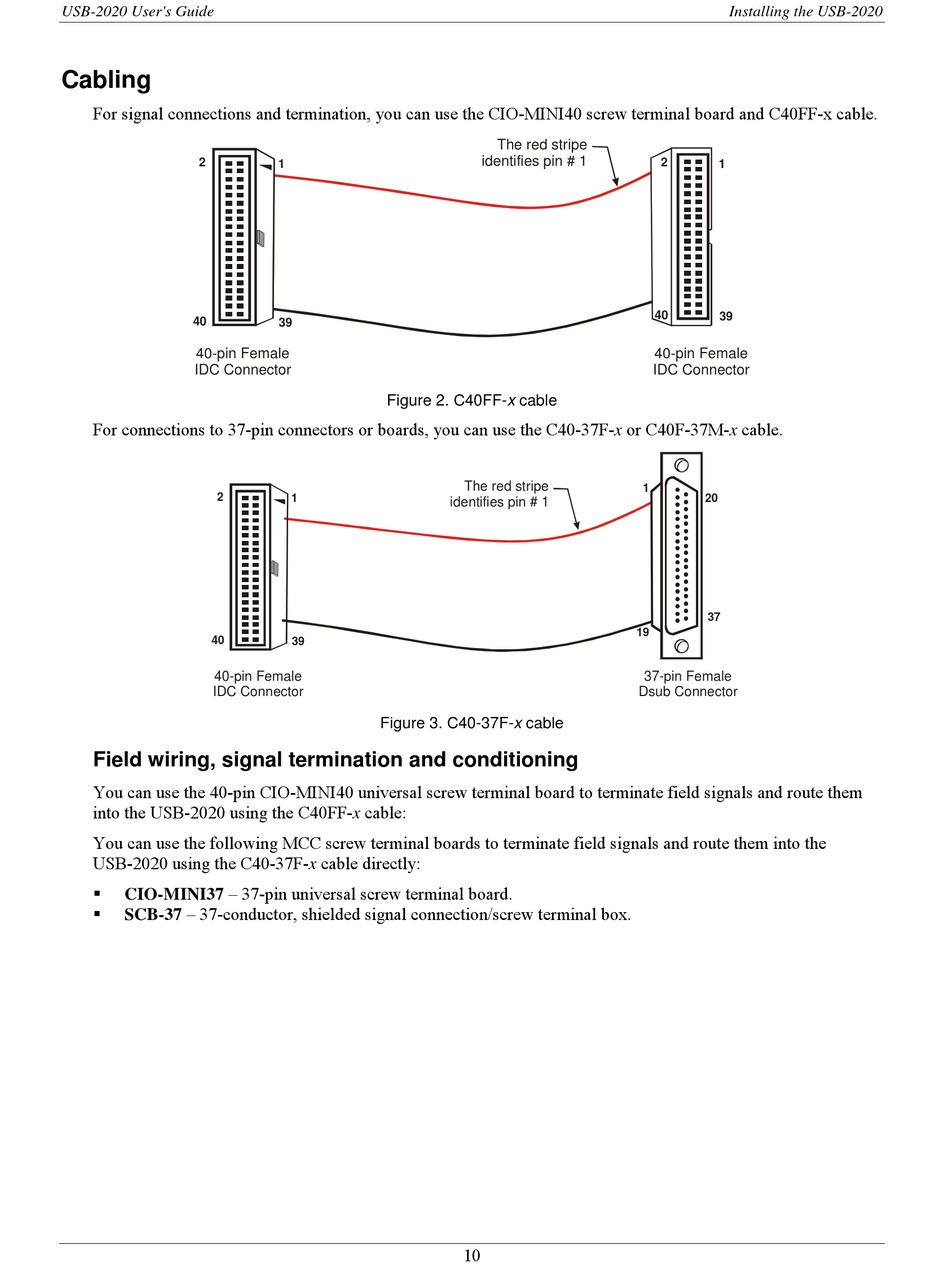

Cabling

For signal connections and termination, you can use the CIO-MINI40 screw terminal board and C40FF-x cable.
2
40
40-pin Female
IDC Connector
For connections to 37-pin connectors or boards, you can use the C40-37F-x or C40F-37M-x cable.
2
40
40-pin Female
IDC Connector

Field wiring, signal termination and conditioning

You can use the 40-pin CIO-MINI40 universal screw terminal board to terminate field signals and route them
into the USB-2020 using the C40FF-x cable:
You can use the following MCC screw terminal boards to terminate field signals and route them into the
USB-2020 using the C40-37F-x cable directly:
CIO-MINI37 – 37-pin universal screw terminal board.

SCB-37 – 37-conductor, shielded signal connection/screw terminal box.

1
39
Figure 2. C40FF-x cable
1
identifies pin # 1
39
Figure 3. C40-37F-x cable
The red stripe
identifies pin # 1
The red stripe
19
Dsub Connector
10
Installing the USB-2020
2
1
40
39
40-pin Female
IDC Connector
1
20
37
37-pin Female
