PCI-2511 User's Guide
By applying a setpoint on analog input channel 2, that setpoint gets evaluated every 10 µs with respect to the
sampled data for channel 2.
Due to the pipelined architecture of the analog-to-digital converter system, the setpoint cannot be evaluated
until 2 µs after the ADC conversion. In the example above, the FIRSTPORTC digital output port can be
updated no sooner than 2 µs after channel 2 has been sampled, or 3 µs after the start of the scan. This 2 µs delay
is due to the pipelined ADC architecture. The setpoint is evaluated 2 µs after the ADC conversion and then
FIRSTPORTC can be updated immediately.
The detection circuit works on data that is put into the acquisition stream at the scan rate. This data is acquired
according to the pre-acquisition setup (scan group, scan period, etc.) and returned to the PC. Counters are
latched into the acquisition stream at the beginning of every scan. The actual counters may be counting much
faster than the scan rate, and therefore only every 10
As a result, you can set a small detection window on a totalizing counter channel and have the detection setpoint
"stepped over" since the scan period was too long. Even though the counter value stepped into and out of the
detection window, the actual values going back to the PC may not. This is true no matter what mode the counter
channel is in.
When setting a detection window, keep a scan period in mind. This applies to analog inputs and counter inputs.
Quickly changing analog input voltages can step over a setpoint window if not sampled often enough.
There are three possible solutions for overcoming this problem:
Shorten the scan period to give more timing resolution on the counter values or analog values.

Widen the setpoint window by increasing limit A, and/or lowering limit B.

A combination of both solutions (1 and 2) could be made.


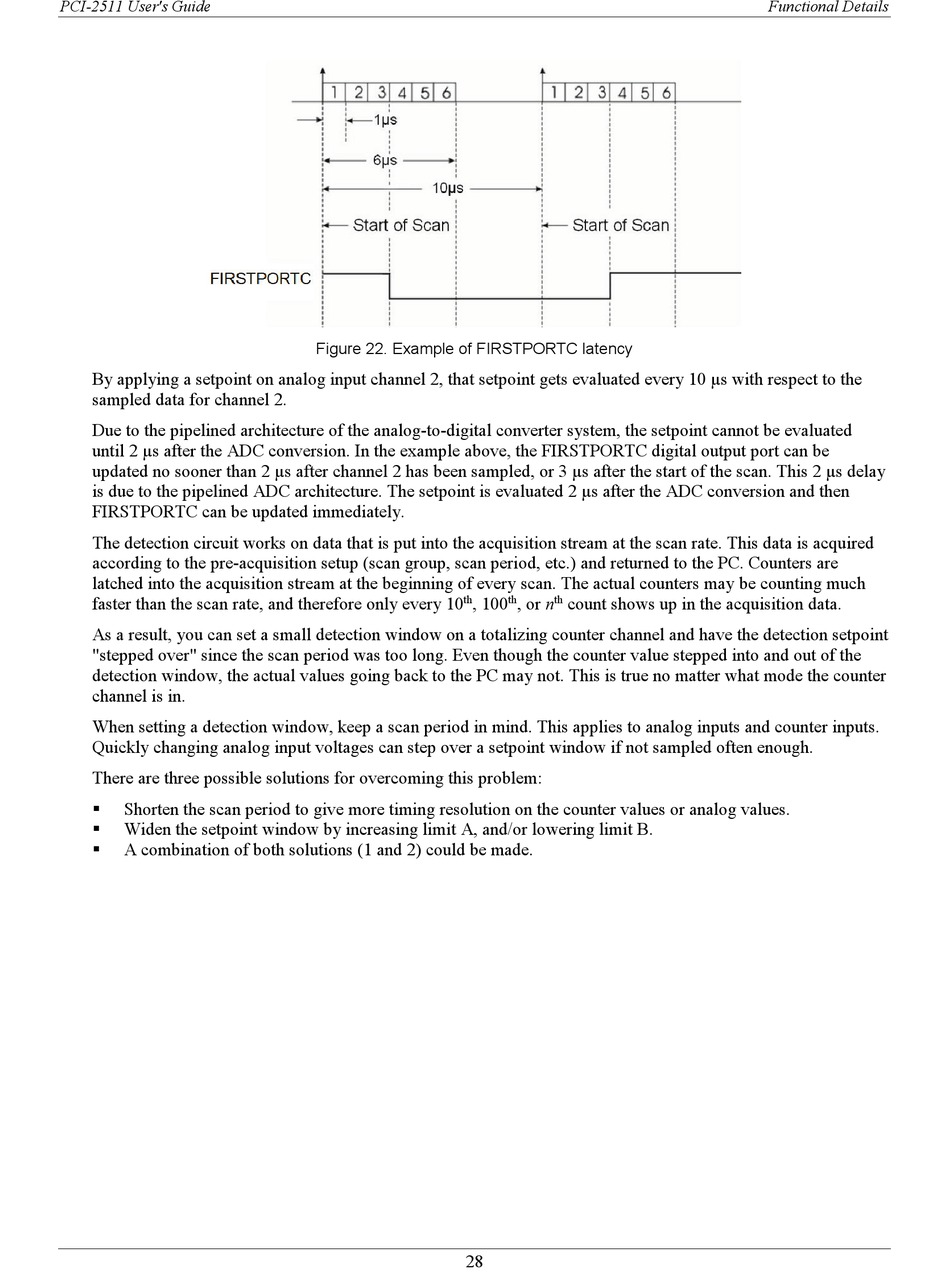

Figure 22. Example of FIRSTPORTC latency
th , 100
28
th , or n th count shows up in the acquisition data.
