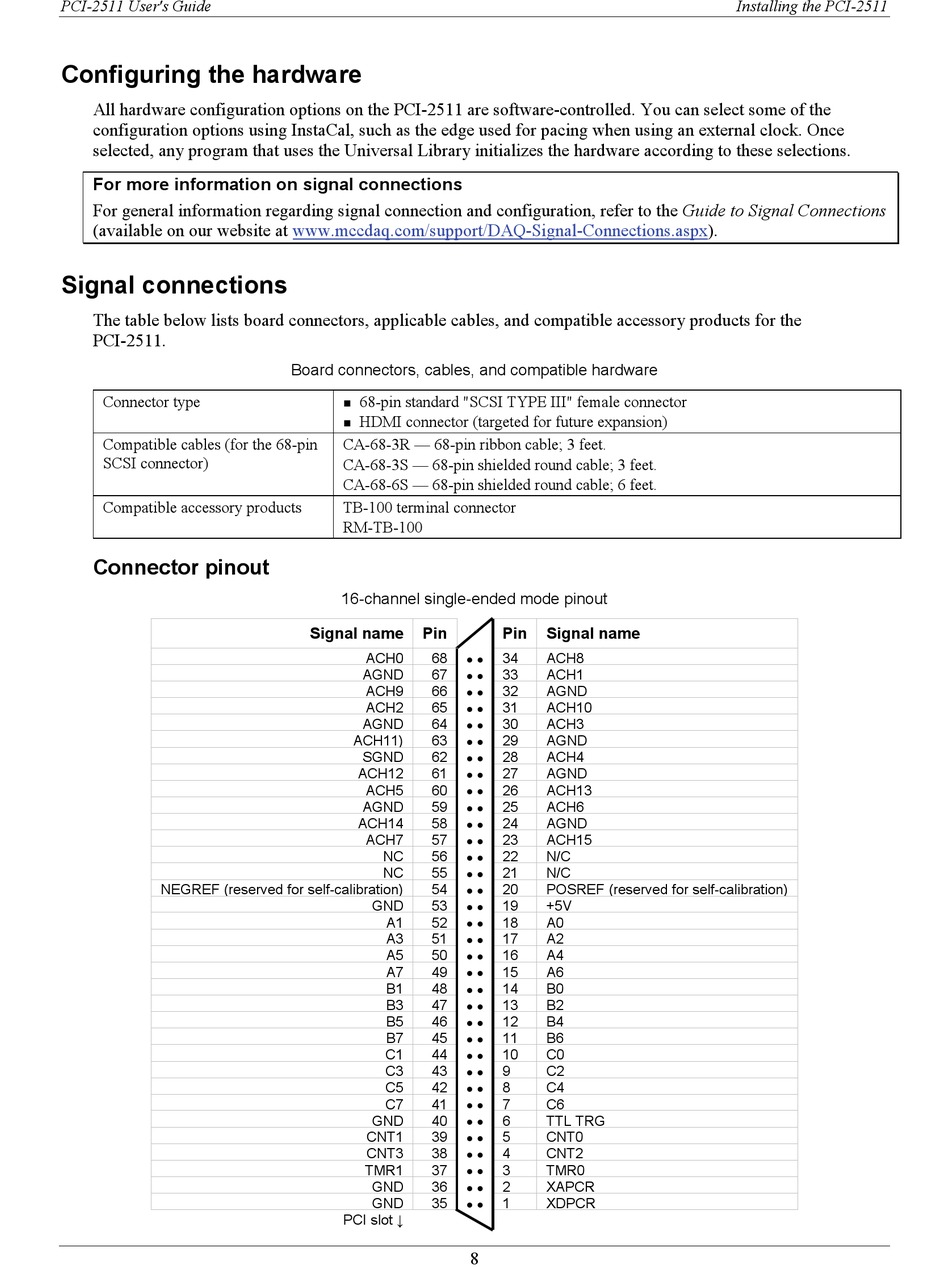

PCI-2511 User's Guide
Configuring the hardware
All hardware configuration options on the PCI-2511 are software-controlled. You can select some of the
configuration options using InstaCal, such as the edge used for pacing when using an external clock. Once
selected, any program that uses the Universal Library initializes the hardware according to these selections.
For more information on signal connections
For general information regarding signal connection and configuration, refer to the Guide to Signal Connections
(available on our website at www.mccdaq.com/support/DAQ-Signal-Connections.aspx).
Signal connections
The table below lists board connectors, applicable cables, and compatible accessory products for the
PCI-2511.
Connector type
Compatible cables (for the 68-pin
SCSI connector)
Compatible accessory products
Connector pinout
NEGREF (reserved for self-calibration)
Board connectors, cables, and compatible hardware
68-pin standard "SCSI TYPE III" female connector
HDMI connector (targeted for future expansion)
CA-68-3R — 68-pin ribbon cable; 3 feet.
CA-68-3S — 68-pin shielded round cable; 3 feet.
CA-68-6S — 68-pin shielded round cable; 6 feet.
TB-100 terminal connector
RM-TB-100
16-channel single-ended mode pinout
Signal name
Pin
ACH0
68
• •
AGND
67
• •
ACH9
66
• •
ACH2
65
• •
AGND
64
• •
ACH11)
63
• •
SGND
62
• •
ACH12
61
• •
ACH5
60
• •
AGND
59
• •
ACH14
58
• •
ACH7
57
• •
NC
56
• •
NC
55
• •
54
• •
GND
53
• •
A1
52
• •
A3
51
• •
A5
50
• •
A7
49
• •
B1
48
• •
B3
47
• •
B5
46
• •
B7
45
• •
C1
44
• •
C3
43
• •
C5
42
• •
C7
41
• •
GND
40
• •
CNT1
39
• •
CNT3
38
• •
TMR1
37
• •
GND
36
• •
GND
35
• •
PCI slot ↓
8
Pin
Signal name
34
ACH8
33
ACH1
32
AGND
31
ACH10
30
ACH3
29
AGND
28
ACH4
27
AGND
26
ACH13
25
ACH6
24
AGND
23
ACH15
22
N/C
21
N/C
20
POSREF (reserved for self-calibration)
19
+5V
18
A0
17
A2
16
A4
15
A6
14
B0
13
B2
12
B4
11
B6
10
C0
9
C2
8
C4
7
C6
6
TTL TRG
5
CNT0
4
CNT2
3
TMR0
2
XAPCR
1
XDPCR
Installing the PCI-2511
