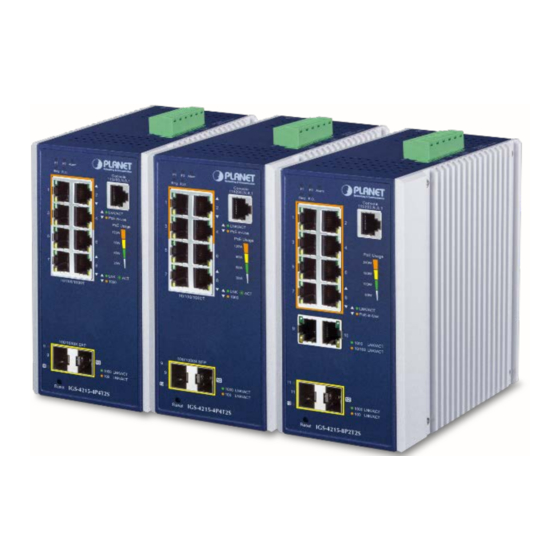

Planet IGS-4215-4P4Tv2 User Manual

Industral l2/l4 managed gigabit poe switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

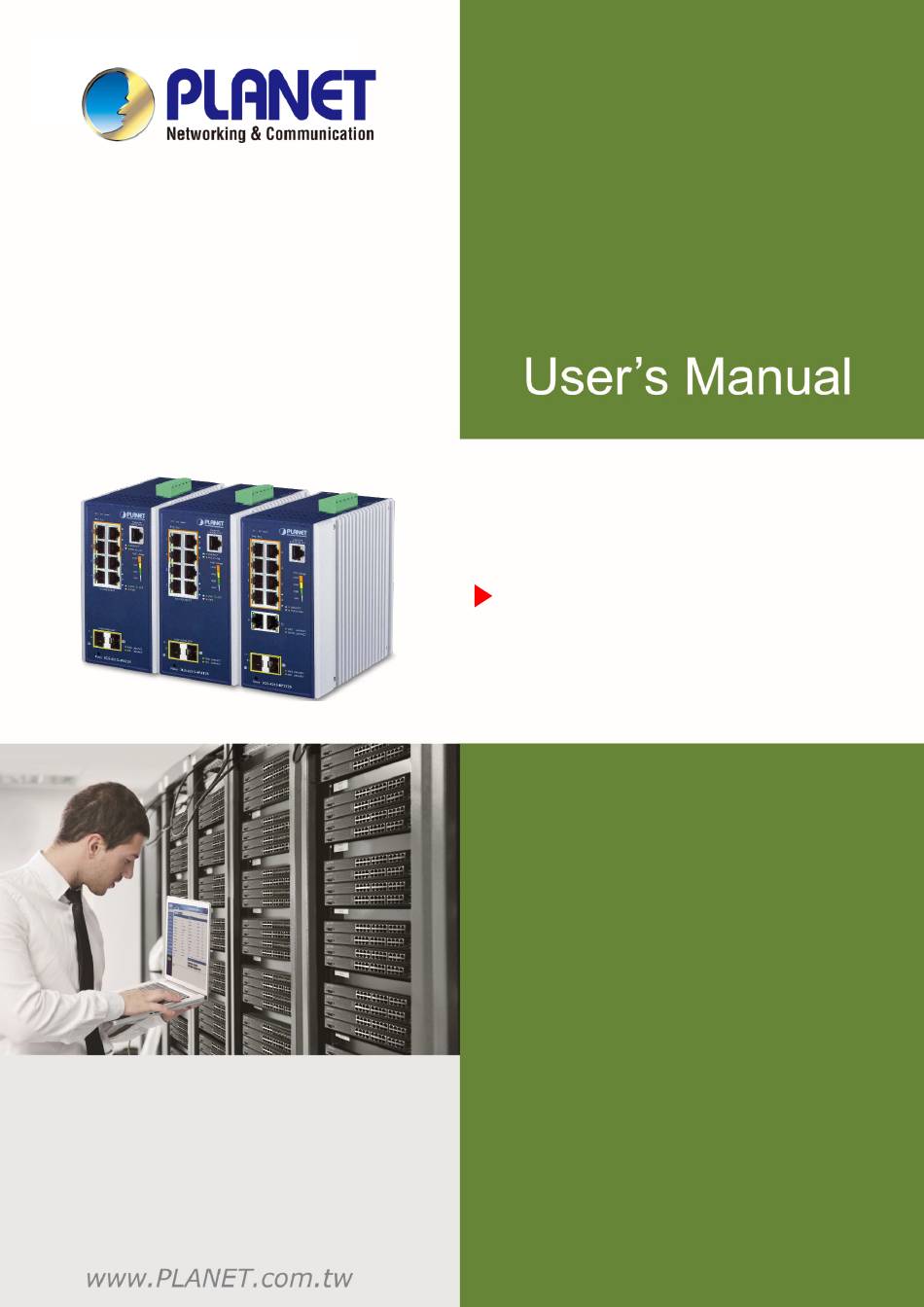

User's Manual of IGS-4215 PoE Series
Industrial L2/L4
Managed Gigabit PoE Switch
IGS-4215 PoE Series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-4215-4P4Tv2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet IGS-4215-4P4Tv2

Summary of Contents for Planet IGS-4215-4P4Tv2

  • Page 1 User’s Manual of IGS-4215 PoE Series Industrial L2/L4 Managed Gigabit PoE Switch IGS-4215 PoE Series...
  • Page 2 PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

  • Page 3: Table Of Contents

    3.2 Management Access Overview ........................49 3.3 Administration Console ..........................50 3.4 Web Management ............................51 3.5 SNMP-based Network Management ......................52 3.6 PLANET Smart Discovery Utility ........................ 52 4. WEB CONFIGURATION ...................... 54 4.1 Main Web Page ............................. 57 4.1.1 Save Button ................................59 4.1.2 Configuration Manager ............................
  • Page 4 User’s Manual of IGS-4215 PoE Series 4.2.6.2 Local Log ................................73 4.2.6.3 Remote Syslog ..............................74 4.2.6.4 Log Message ..............................76 4.2.7 SNMP Management .............................. 78 4.2.7.1 SNMP Overview ..............................78 4.2.7.2 SNMP Setting ..............................79 4.2.7.3 SNMP View ................................ 80 4.2.7.4 SNMP Access Group ............................
  • Page 5 User’s Manual of IGS-4215 PoE Series 4.5.1 VLAN Overview ..............................133 4.5.2 IEEE 802.1Q VLAN ............................. 134 4.5.3 Management VLAN ............................. 138 4.5.4 Create VLAN ............................... 139 4.5.5 Interface Settings ..............................140 4.5.6 Port to VLAN ............................... 144 4.5.7 Port VLAN Membership ............................145 4.5.8 Protocol VLAN Group Setting ..........................
  • Page 6 User’s Manual of IGS-4215 PoE Series 4.9.7 MLD Snooping Statics ............................208 4.9.8 MLD Filter Setting ..............................209 4.10.1 Link Layer Discovery Protocol ........................... 210 4.10.2 LLDP Global Setting ............................211 4.10.3 LLDP Port Setting .............................. 213 4.10.4 LLDP Local Device ............................216 4.10.5 LLDP Remote Device ............................
  • Page 7 User’s Manual of IGS-4215 PoE Series 4.13.1.3 HTTP ................................257 4.13.1.4 HTTPs ................................258 4.13.2 Access Method Profile Rules ..........................259 4.13.2.1 Profile Rules ..............................259 4.13.2.2 Access Profiles ............................... 261 4.13.3 AAA ................................... 262 4.13.3.1 Login List ................................ 263 4.13.3.2 Enable List..............................
  • Page 8 User’s Manual of IGS-4215 PoE Series 4.13.10.2 MAC-based ACE ............................312 4.13.10.3 IPv4-based ACL ............................315 4.13.10.4 IPv4-based ACE ............................316 4.13.10.5 IPv6-based ACL ............................321 4.13.10.6 IPv6-based ACE ............................322 4.13.10.7 ACL Binding ..............................327 4.14 Ring ................................328 4.14.1 Ring Wizard ...............................

  • Page 9: Introduction

    1. INTRODUCTION Thank you for purchasing PLANET IGS-4215 Industrial Managed Switch series, which comes with multiple Gigabit Ethernet copper and SFP fiber optic connectibility and robust Layer 2 and Layer 4 features. The description of this model is shown below: IGS-4215-4P4T Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/100T Managed Ethernet Switch...

  • Page 10: Product Description

    PLANET IGS-4215 Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch series features PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4/8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+ or 95-watt 802.3bt PoE++, 2/4 additional Gigabit copper ports...
  • Page 11 User’s Manual of IGS-4215 PoE Series Scheduled Power Recycling The IGS-4215 series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection, the IGS-4215 series can effectively control the power supply besides its capability of giving high watts power.
  • Page 12 User’s Manual of IGS-4215 PoE Series PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage Via the power usage chart in the web management interface, the IGS-4215 series enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
  • Page 13 User’s Manual of IGS-4215 PoE Series Redundant Ring, Fast Recovery for Critical Network Applications The IGS-4215 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
  • Page 14 User’s Manual of IGS-4215 PoE Series IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IGS-4215 series helps the system integrators to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 network is set up. Robust Layer 2 Features The IGS-4215 series can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD...
  • Page 15 User’s Manual of IGS-4215 PoE Series Advanced Network Security PLANET IGS-4215 series offer a comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users.

  • Page 16: How To Use This Manual

    User’s Manual of IGS-4215 PoE Series 1.3 How to Use This Manual This User Manual is structured as follows: Section 2, INSTALLATION The section explains the functions of the Switch and how to physically install the Industrial Managed Switch. Section 3, SWITCH MANAGEMENT The section contains the information about the software function of the Industrial Managed Switch.

  • Page 17: Product Features

    User’s Manual of IGS-4215 PoE Series  1.4 Product Features  Physical Port ■ Eight 10/100/1000BASE-T Gigabit RJ45 copper ports with 4-/8-port IEEE 802.3at/af PoE Injector ■ Two or four 10/100/1000BASE-T Gigabit Ethernet RJ45 ports ■ Two 100/1000BASE-X SFP slots, SFP type auto detection ■...
  • Page 18 User’s Manual of IGS-4215 PoE Series  Layer 2 Features ■ Supports VLAN − IEEE 802.1Q tagged VLAN − Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support − Protocol VLAN − Voice VLAN − Private VLAN (Protected port) − Management VLAN −...
  • Page 19 − ICMPv6/ICMPv4 Remote Ping − SFP-DDM (Digital Diagnostic Monitor)  Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED  Event message logging to remote syslog server  PLANET Smart Discovery Utility for deployment management  PLANET NMS system and CloudViewer for deployment management...

  • Page 20: Product Specifications

    User’s Manual of IGS-4215 PoE Series  1.5 Product Specifications IGS-4215- IGS-4215- IGS-4215- IGS-4215- IGS-4215- Product 4P4T 4P4T2S 8P2T2S 4UP4T2S 8UP2T2S Hardware Specifications Hardare Version Copper Ports 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port PoE Injector Port 802.3at PoE+ 802.3at PoE+ 802.3at PoE+ 802.3bt PoE++ 802.3bt PoE++ SFP Ports...
  • Page 21 User’s Manual of IGS-4215 PoE Series Power over Ethernet IEEE 802.3bt IEEE 802.3bt IEEE 802.3at IEEE 802.3at IEEE 802.3at PoE Standard PoE++ Type 4 PoE++ Type 4 PoE+ PSE PoE+ PSE PoE+ PSE PoE Power Supply Type End-span + End-span + Mid-span Mid-span End-span...
  • Page 22 User’s Manual of IGS-4215 PoE Series Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs IEEE 802.3ad LACP and static trunk Link Aggregation Supports 8 groups with 8 ports per trunk IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) Spanning Tree Protocol...
  • Page 23 SSHv2, TLS v1.2, SNMP v3 Interfaces Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol System Management SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer Remote/Local Syslog Event Management System log RFC 1213 MIB-II RFC 1215 Generic Traps...
  • Page 24 User’s Manual of IGS-4215 PoE Series RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring Environment Operating Temperature -40 ~ 75 degrees C Storage Temperature -40 ~ 85 degrees C Humidity 5 ~ 95% (non-condensing)

  • Page 25: Installation

    User’s Manual of IGS-4215 PoE Series 2. INSTALLATION 2.1 Hardware Description The Industrial Managed Switch provides three different running speeds – 10Mbps, 100Mbps or 10000Mbps and automatically distinguishes the speed of incoming connection. This section describes the hardware features and installation of the Industrial Managed Switch. For easier management and control of the Industrial Managed Switch, familiarize yourself with its display indicators and ports.

  • Page 26: Physical Dimensions

    User’s Manual of IGS-4215 PoE Series 2.1.1 Physical Dimensions IGS-4215-4P4T  Dimensions (W x D x H) : 76.8 x 107.3 x 152mm...
  • Page 27 User’s Manual of IGS-4215 PoE Series IGS-4215-4P4T2S / IGS-4215-4UP4T2S  Dimensions (W x D x H) : 76.8 x 107.3 x 152mm...
  • Page 28 User’s Manual of IGS-4215 PoE Series IGS-4215-8P2T2S IGS-4215-8UP2T2S  Dimensions (W x D x H) : 76.8 x 107.3 x 152mm...

  • Page 29: Switch Front Panel

    User’s Manual of IGS-4215 PoE Series  2.1.2 Switch Front Panel The front panel provides a simple interface monitoring of the Industrial Managed Switch. Figure 2-1-2a shows the front panel of the Industrial Managed Switch. Front Panel IGS-4215-4P4T(v2) IGS-4215-4P4T2S(v2) IGS-4215-8P2T2S(v2) IGS-4215-4UP4T2S IGS-4215-8UP2T2S Figure 2-1-2a: IGS-4215 PoE series Front Panel...
  • Page 30 User’s Manual of IGS-4215 PoE Series ■ Gigabit TP Interface 10/100/1000BASE-T copper, RJ45 twisted-pair: Up to 100 meters. ■ 100/1000BASE-X SFP Slots Each of the SFP (Small Form-factor Pluggable) slots supports dual-speed, 1000BASE-SX/LX or 100BASE-FX For 1000BASE-SX/LX SFP transceiver module: From 550 meters (multi-mode fiber) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber).

  • Page 31: Led Indications

    User’s Manual of IGS-4215 PoE Series  2.1.3 LED Indications The front panel LEDs indicate instant status of port links, data activity and system power; it helps monitor and troubleshoot when needed. Figure 2-1-3a shows the LED indications of these Industrial Managed Switches. IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S LED Indication Figure 2-1-3a: IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S LED Panel ■...
  • Page 32 User’s Manual of IGS-4215 PoE Series ■ PoE 10/100/1000BASE-T Interfaces Color Function Lights: To indicate the link through that port is successfully established. LNK/ACT Green Blinks: To indicate that the switch is actively sending or receiving data over that port. Lights: To indicate the port is providing DC in-line power.
  • Page 33 User’s Manual of IGS-4215 PoE Series ■ PoE Power Usage (Unit: Watt) IGS-4215-4P4T/IGS-4215-4P4T2S IGS-4215-4P4T and IGS-4215-4P4T2S Color Function 120W Amber Lights: To indicate the system consumes over 120-watt PoE power budget Amber Lights: To indicate the system consumes over 90-watt PoE power budget Amber Lights: To indicate the system consumes over 60-watt PoE power budget Amber...
  • Page 34 User’s Manual of IGS-4215 PoE Series IGS-4215-4UP4T2S/IGS-4215-8UP2T2S LED Indication IGS-4215-4UP4T2S IGS-4215-8UP2T2S ■ System Color Function Green Lights to indicate Power 1 has power. Green Lights to indicate Power 2 has power. Alarm Lights to indicate power or port failure Ring Green Lights to indicate that the ERPS Ring has been created successfully.
  • Page 35 User’s Manual of IGS-4215 PoE Series ■ 802.3bt PoE++ 10/100/1000BASE-T Interfaces Color Function 1000 Lights to indicate that the port is operating at 1000Mbps. Green LNK/ACT Off to indicate that the switch is actively sending or receiving data over that port. 10/100 Lights to indicate that the port is operating at 10/100Mbps.
  • Page 36 User’s Manual of IGS-4215 PoE Series ■ PoE Power Usage (Unit: watts) IGS-4215-4UP4T2S Color Function 240W Amber Lights: To indicate the system consumes over 240-watt PoE power budget 180W Amber Lights: To indicate the system consumes over 180-watt PoE power budget 120W Amber Lights: To indicate the system consumes over 120-watt PoE power budget...

  • Page 37: Switch Upper Panel

    User’s Manual of IGS-4215 PoE Series  2.1.4 Switch Upper Panel The upper panel of the Industrial Managed Switch consists of one terminal block connector within two DC power inputs. Figure 2-1-4a & Figure 2-1-4b shows the upper panel of the Industrial Managed Switch. IGS-4215-4P4T/IGS-4215-4P4T2S/IGS-4215-8P2T2S Figure 2-1-4a: Industrial Managed Switch Upper Panel.

  • Page 38: Wiring The Power Inputs

    User’s Manual of IGS-4215 PoE Series  2.1.5 Wiring the Power Inputs The 6-contact terminal block connector on the top panel of Industrial Managed Switch is used for two DC redundant power input. Please follow the steps below to insert the power wire. Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1, or 5 and 6 for power.

  • Page 39: Wiring The Faulty Alarm Contact

    Pin 2/6 The wire gauge for the terminal block should be in the range from 12 to 24 AWG. Please check the wire AWG Ampere specification before connecting PLANET Industrial Managed POE+ Switch. PWR1 and PWR2 must provide exactly the same DC voltage for power load balance while operating with dual power input.

  • Page 40: Installing The Industrial Managed Switch

    User’s Manual of IGS-4215 PoE Series The wire gauge for the terminal block should be in the range of 12 ~ 24 AWG. Alarm relay circuit accepts a maximum of up to 24V, 1A current. 2.2 Installing the Industrial Managed Switch This section describes how to install your Industrial Managed Switch and make connections to the Industrial Managed Switch.

  • Page 41: Din-Rail Mounting

    User’s Manual of IGS-4215 PoE Series  2.2.2 DIN-rail Mounting This section describes how to install the Industrial Managed Switch. There are two methods to install the Industrial Managed Switch -- DIN-rail mounting and wall-mount plate mounting. Please read the following topics and perform the procedures in the order being presented.
  • Page 42 User’s Manual of IGS-4215 PoE Series Step 3: Check whether the DIN rail is tightly on the track. Please refer to the following procedures to remove the Industrial Managed Switch from the track. Step 4: Lightly remove the DIN rail from the track.

  • Page 43: Wall-Mount Plate Mounting

    User’s Manual of IGS-4215 PoE Series  2.2.3 Wall-mount Plate Mounting To install the Industrial Managed Switch on the wall, please follow the instructions below. Follow all the DIN-rail installation steps as shown in the example. Step 1: Remove the DIN rail from the Industrial Managed Switch. Use the screwdriver to loosen the screws to remove the DIN rail.

  • Page 44: Installing The Sfp Transceiver

    Approved PLANET SFP Transceivers  PLANET Industrial Managed Switch supports 100/1000 dual mode with both single mode and multi-mode SFP transceivers. The following list of approved PLANET SFP transceivers is correct at the time of publication: Fast Ethernet Transceiver (100BASE-X SFP) Connector...
  • Page 45 User’s Manual of IGS-4215 PoE Series Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP) Connector Wavelength Wavelength Model Speed (Mbps) Fiber Mode Distance Operating Temp. Interface (TX) (RX) MFB-FA20 WDM(LC) Single Mode 20km 1310nm 1550nm 0 ~ 60 degrees C MFB-FB20 WDM(LC) Single Mode 20km...
  • Page 46 User’s Manual of IGS-4215 PoE Series It is recommended to use PLANET SFPs on the Industrial Managed Switch. If you insert an SFP transceiver that is not supported, the Industrial Managed Switch might not recognize it. Please choose the SFP transceiver which can be operated in the temperature range of -40~75 degrees C.

  • Page 47: Removing The Sfp Transceiver

    User’s Manual of IGS-4215 PoE Series 2.2.5 Removing the SFP Transceiver Make sure there is no network activity by consulting or checking with the network administrator. Or through the management interface of the switch/converter (if available) to disable the port in advance. Remove the fiber optic cable gently.

  • Page 48: Switch Management

    User’s Manual of IGS-4215 PoE Series 3. SWITCH MANAGEMENT This chapter explains the methods that you can use to configure management access to the Industrial Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system.

  • Page 49: Management Access Overview

    User’s Manual of IGS-4215 PoE Series  3.2 Management Access Overview The Industrial Managed Switch gives you the flexibility to access and manage it using any or all of the following methods: An administration console  Web browser interface  An external SNMP-based network management application ...

  • Page 50: Administration Console

    User’s Manual of IGS-4215 PoE Series  3.3 Administration Console The administration console is an internal, character-oriented, and command line user interface for performing system administration such as displaying statistics or changing option settings. Using this method, you can view the administration console from a terminal, personal computer, Apple Macintosh, or workstation connected to the Industrial Managed Switch's console port.

  • Page 51: Web Management

    User’s Manual of IGS-4215 PoE Series 3.4 Web Management The Industrial Managed Switch offers management features that allow users to manage the Industrial Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch, you can access the Industrial Managed Switch's Web interface applications directly in your Web browser by entering the IP address of the Industrial Managed Switch.

  • Page 52: Snmp-Based Network Management

    3.6 PLANET Smart Discovery Utility For easily listing the Industrial Managed Switch in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual CD-ROM is an ideal solution. The following installation instructions are to guide you to running the Planet Smart Discovery Utility.
  • Page 53 To click the “Control Packet Force Broadcast” function, it allows you to assign a new setting value to the Web Smart Switch under a different IP subnet address. Press the “Connect to Device” button and the Web login screen appears in Figure 3-1-4. Press the “Exit” button to shut down the Planet Smart Discovery Utility.

  • Page 54: Web Configuration

    User’s Manual of IGS-4215 PoE Series 4. WEB CONFIGURATION This section introduces the configuration and functions of the Web-based management. About Web-based Management The Industrial Managed Switch offers management features that allow users to manage the Industrial Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
  • Page 55 User’s Manual of IGS-4215 PoE Series When the following login screen appears, please enter the default username "admin" with password “admin” (or the username/password you have changed via console) to login the main screen of Industrial Managed Switch. The login screen in Figure 4-1-2 appears.
  • Page 56 User’s Manual of IGS-4215 PoE Series Now, you can use the Web management interface to continue the switch management or manage the Industrial Managed Switch by Web interface. The Switch Menu on the left of the web page lets you access all the commands and statistics the Industrial Managed Switch provides.

  • Page 57: Main Web Page

    User’s Manual of IGS-4215 PoE Series  4.1 Main Web Page The Industrial Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Industrial Managed Switch using the Web browser of your choice. This chapter describes how to use the Industrial Managed Switch’s Web browser interface to configure and manage it.
  • Page 58 User’s Manual of IGS-4215 PoE Series Main Menu Using the onboard Web agent, you can define system parameters, manage and control the Industrial Managed Switch, and all its ports, or monitor network conditions. Via the Web-Management, the administrator can set up the Industrial Managed Switch by selecting the functions those listed in the Main Function.

  • Page 59: Save Button

    User’s Manual of IGS-4215 PoE Series 4.1.1 Save Button This save button allows you to save the running/startup/backup configuration or reset switch in default parameter. The screen in Figure 4-1-6 appears. Figure 4-1-6: Save Button Screenshot The page includes the following fields: Object Description •...

  • Page 60: Saving Configuration

    User’s Manual of IGS-4215 PoE Series so-called configuration save. If the device supports multi-config file, name the configuration file to be .cfg file, the default is startup.cfg. If the device does not support multi-config file, mandates the name of startup configuration file to be startup-config.

  • Page 61: System

    User’s Manual of IGS-4215 PoE Series  4.2 System Use the System menu items to display and configure basic administrative details of the Industrial Managed Switch. Under the System, the following topics are provided to configure and view the system information. This section has the following items: ■...
  • Page 62 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • System Name Display the current system name • System Location Display the current system location System Contact • Display the current system contact MAC Address •...

  • Page 63: Ip Configurations

    User’s Manual of IGS-4215 PoE Series  4.2.2 IP Configurations The IP Configuration includes the IP Address, Subnet Mask and Gateway. The configured column is used to view or change the IP configuration. Fill out the IP Address, Subnet Mask and Gateway for the device. The screens in Figure 4-2-2 Figure 4-2-3 appear.
  • Page 64 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-2-3: IP Information Page Screenshot The page includes the following fields: Object Description • DHCP State Displays the current DHCP state. • IP Address Displays the current IP address. •...

  • Page 65: Ipv6 Configuration

    User’s Manual of IGS-4215 PoE Series  4.2.3 IPv6 Configuration The IPv6 Configuration includes Auto Configuration, IPv6 Address and Gateway. The configured column is used to view or change the IPv6 configuration. Fill out the Auto Configuration, IPv6 Address and Gateway for the device. The screens in Figure 4-2-4 Figure 4-2-5...
  • Page 66 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-2-5: IPv6 Information Page Screenshot The page includes the following fields: Object Description • Auto Configuration Displays the current auto configuration state • IPv6-in-Use Address Displays the currently-used IPv6 address •...

  • Page 67: User Configuration

    User’s Manual of IGS-4215 PoE Series  4.2.4 User Configuration This page provides an overview of the current users and privilege type. Currently the only way to login as another user on the Web server is to close and reopen the browser. After the setup is completed, please press the “Apply” button to take effect. Please login Web interface with a new user name and password;...

  • Page 68: Time Settings

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Username Displays the current username • Password Type Displays the current password type • Privilege Type Displays the current privilege type • Modify Click to modify the local user entry : Delete the current user 4.2.5 Time Settings 4.2.5.1 System Time...
  • Page 69 User’s Manual of IGS-4215 PoE Series • Day - Select the starting day. • Hours - Select the starting hour. • Minutes - Select the starting minute. • Seconds - Select the starting seconds. • Time Zone Allows to select the time zone according to the current location of switch. •...
  • Page 70 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-2-9: Time Information Page Screenshot The page includes the following fields: Object Description • Current Data/Time Displays the current data/time. • SNTP Displays the current SNTP state. •...

  • Page 71: Sntp Server Settings

    User’s Manual of IGS-4215 PoE Series  4.2.5.2 SNTP Server Settings The SNTP Server Configuration screens in Figure 4-2-10 Figure 4-2-11 appear. Figure 4-2-10: SNTP Setup Page Screenshot The page includes the following fields: Object Description • SNTP Server Address Type the IP address or domain name of the SNTP server.

  • Page 72: Log Management

    User’s Manual of IGS-4215 PoE Series  4.2.6 Log Management The Industrial Managed Switch log management is provided here. The local logs allow you to configure and limit system messages that are logged to flash or RAM memory. The default is for event levels 0 to 3 to be logged to flash and levels 0 to 6 to be logged to RAM.

  • Page 73: Local Log

    User’s Manual of IGS-4215 PoE Series 4.2.6.2 Local Log The switch system local log information is provided here. The local Log screens in Figure 4-2-14 Figure 4-2-15 appear. Figure 4-2-14: Local Log Target Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 74: Remote Syslog

    User’s Manual of IGS-4215 PoE Series 4.2.6.3 Remote Syslog Configure remote syslog on this page. The Remote Syslog page allows you to configure the logging of messages that are sent to syslog servers or other management stations. You can also limit the event messages sent to only those messages below a specified level.
  • Page 75 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Server Address Provides the remote syslog IP address of this switch. • Server Port Provides the port number of remote syslog server. Default Port no.: 514 •...

  • Page 76: Log Message

    User’s Manual of IGS-4215 PoE Series 4.2.6.4 Log Message The switch log view is provided here. The Log View screens in Figure 4-2-18, Figure 4-2-19 Figure 4-2-20 appear. Figure 4-2-18: Log Information Select Page Screenshot The page includes the following fields: Object Description •...
  • Page 77 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Target Displays the current log target. • Severity Displays the current log severity. • Category Displays the current log category. • Total Entries Displays the current log entries. Figure 4-2-20: Logging Messages Page Screenshot The page includes the following fields: Object...

  • Page 78: Snmp Management

    User’s Manual of IGS-4215 PoE Series 4.2.7 SNMP Management 4.2.7.1 SNMP Overview The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.

  • Page 79: Snmp Setting

    User’s Manual of IGS-4215 PoE Series  4.2.7.2 SNMP Setting Configure SNMP setting on this page. The SNMP System global setting screens in Figure 4-2-21 & Figure 4-2-22 appear. Figure 4-2-21: SNMP Global Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 80: Snmp View

    User’s Manual of IGS-4215 PoE Series  4.2.7.3 SNMP View Configure SNMPv3 view table on this page. The entry index keys are View Name and OID Subtree. The SNMPv3 View Table Setting screens in Figure 4-2-23 Figure 4-2-24 appear. Figure 4-2-23: SNMPv3 View Table Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 81: Snmp Access Group

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description View Name • Displays the current SNMP view name. • Subtree OID Displays the current SNMP subtree OID. • OID Mask Displays the current SNMP OID mask. •...

  • Page 82: Snmp Community

    User’s Manual of IGS-4215 PoE Series the contents of the agent. The allowed string length is 1 to 16. • Notify View Name Notify view name is the name of the view in which you specify a notify, inform, or trap.
  • Page 83 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description Community Name • Indicates the community read/write access string to permit access to SNMP agent. The allowed string length is 0 to 16. • Community Mode Indicates the SNMP community supported mode.

  • Page 84: Snmp User

    User’s Manual of IGS-4215 PoE Series 4.2.7.6 SNMP User Configure SNMPv3 users table on this page. Each SNMPv3 user is defined by a unique name. Users must be configured with a specific security level and assigned to a group. The SNMPv3 group restricts users to a specific read, write, and notify view. The entry index key is User Name.
  • Page 85 User’s Manual of IGS-4215 PoE Series Buttons : Click to add a new user entry. Figure 4-2-30: SNMPv3 Users Status Page Screenshot The page includes the following fields: Object Description User Name • Displays the current user name. • Group Displays the current group.

  • Page 86: Snmpv1, 2 Notification Recipients

    User’s Manual of IGS-4215 PoE Series 4.2.7.7 SNMPv1, 2 Notification Recipients Configure SNMPv1 and 2 notification recipients on this page. The SNMPv1, 2 Notification Recipients screens in Figure 4-2-31 Figure 4-2-32 appear. Figure 4-2-31: SNMPv1, 2 Notification Recipients Page Screenshot The page includes the following fields: Object Description...

  • Page 87: Snmpv3 Notification Recipients

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description Server Address • Displays the current server address • SNMP Version Displays the current SNMP version • Notify Type Displays the current notify type • Community Name Displays the current community name •...
  • Page 88 User’s Manual of IGS-4215 PoE Series Buttons : Click to add a new SNMPv3 host entry. Figure 4-2-34: SNMPv3 Host Status Page Screenshot The page includes the following fields: Object Description Server Address • Displays the current server address. • Notify Type Displays the current notify type.

  • Page 89: Snmp Engine Id

    User’s Manual of IGS-4215 PoE Series  4.2.7.9 SNMP Engine ID Configure SNMPv3 Engine ID on this page. The entry index key is Engine ID. The remote engine ID is used to compute the security digest for authenticating and encrypting packets sent to a user on the remote host. The SNMPv3 Engine ID Setting screens in Figure 4-2-35 Figure 4-2-36...

  • Page 90: Snmp Remote Engine Id

    User’s Manual of IGS-4215 PoE Series  4.2.7.10 SNMP Remote Engine ID Configure SNMPv3 remote Engine ID on this page. The SNMPv3 Remote Engine ID Setting screens in Figure 4-2-37 Figure 4-2-38 appear. Figure 4-2-37: SNMPv3 Remote Engine ID Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 91: Rmon

    User’s Manual of IGS-4215 PoE Series  4.2.8 RMON RMON is the most important expansion of the standard SNMP. RMON is a set of MIB definitions, used to define standard network monitor functions and interfaces, enabling the communication between SNMP management terminals and remote monitors.
  • Page 92 User’s Manual of IGS-4215 PoE Series The Page includes the following fields: Object Description • Port Select port from this drop-down list • Drop Events The total number of events in which packets were dropped by the probe due to lack of resources •...

  • Page 93: Rmon Event

    User’s Manual of IGS-4215 PoE Series 4.2.8.2 RMON Event Configure RMON Event table on this page. The RMON Event screens in Figure 4-2-40 & Figure 4-2-41 appear. Figure 4-2-40: RMON Event Configuration Page Screenshot The page includes the following fields: Object Description •...

  • Page 94: Rmon Event Log

    User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-2-41: RMON Event Status Page Screenshot The page includes the following fields: Object Description • Index Displays the current event index • Event Type Displays the current event type •...

  • Page 95: Rmon Alarm

    User’s Manual of IGS-4215 PoE Series 4.2.8.4 RMON Alarm Configure RMON Alarm table on this page. The RMON Alarm screens in Figure 4-2-43& Figure 4-2-44 appear. Figure 4-2-43: RMON Alarm Table Page Screenshot The page includes the following fields: Object Description •...
  • Page 96 User’s Manual of IGS-4215 PoE Series otherwise well formed.  OverSizePkts: The total number of frames received that were longer than 1518 octets(excluding framing bits, but including FCS octets) and were otherwise well formed. Fragments: The total number of frames received that were less than 64 ...
  • Page 97 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-2-44: RMON Alarm Status Page Screenshot The page includes the following fields: Object Description • Index Indicates the index of Alarm control entry • Sample Port Displays the current sample port •...

  • Page 98: Rmon History

    User’s Manual of IGS-4215 PoE Series 4.2.8.5 RMON History Configure RMON History table on this page. The RMON History screens in Figure 4-2-45 & Figure 4-2-46 appear. Figure 4-2-45: RMON History Table Page Screenshot The page includes the following fields: Object Description •...

  • Page 99: Rmon History Log

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Index Displays the current index • Data Source Displays the current data source • Bucket Requested Displays the current bucket requested • Interval Displays the current interval •...

  • Page 100: Fault Alarm Configuration

    User’s Manual of IGS-4215 PoE Series 4.2.9 Fault Alarm Configuration This Page facilitates a fault alarm controlling the switch. The Fault Alarm Control Configuration screen in Figure 4-2-48 appears. Figure 4-2-48: Fault Alarm Control Configuration Page Screenshot The page includes the following fields: Object Description •...

  • Page 101: Remote Management

    APs, VoIP phones, IP cameras, etc., compliant with the SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. The CloudViewer is a free networking service just for PLANET Products. This service provides simplified network monitoring and real-time network status. Working with PLANET CloudViewer app, user can easily check network status, device information, Port and PoE status from Internet.
  • Page 102 User’s Manual of IGS-4215 PoE Series CloudViewer Server – Internet screens in Figure 4-2-51 appear. Figure 4-2-51 CloudViewer Server – Internet Configuration Page Screenshot Object Description • Remote NMS Enable Enable NMS management • Subscriber email The email registered on CloudViewer Server Password •...

  • Page 103: Port Management

    User’s Manual of IGS-4215 PoE Series  4.3 Port Management Use the Port Menu to display or configure the Industrial Managed Switch's ports. This section has the following items: Port Configuration  Configures port configuration settings Port Counters  Lists Ethernet and RMON port statistics Bandwidth Utilization ...
  • Page 104 User’s Manual of IGS-4215 PoE Series 100M – Set up 100M Force mode.  1000M – Set up 1000M Force mode.  Duplex • Select any available link duplex for the given switch port. Draw the menu bar to select the mode. Auto –...

  • Page 105: Port Counters

    User’s Manual of IGS-4215 PoE Series 4.3.2 Port Counters This page provides an overview of traffic and trunk statistics for all switch ports. The Port Statistics screens in Figure 4-3-3, Figure 4-3-4, Figure 4-3-5 Figure 4-3-6 appear. Figure 4-3-3: Port MIB Counters Page Screenshot The page includes the following fields: Object Description...
  • Page 106 User’s Manual of IGS-4215 PoE Series • Received Discards A number of inbound packets are chosen to be discarded even though no errors Packets have been detected to prevent them from being delivered to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
  • Page 107 User’s Manual of IGS-4215 PoE Series Object Description • Alignment Errors The number of alignment errors (mis-synchronized data packets). • FCS Errors A count of frames received on a particular interface that are an integral number of octets in length but do not pass the FCS check. This count does not include frames received with frame-too-long or frame-too-short error.
  • Page 108 User’s Manual of IGS-4215 PoE Series Object Description • Drop Events The total number of events in which packets were dropped due to lack of resources. • Octets The total number of octets received and transmitted on the interface, including framing characters.

  • Page 109: Bandwidth Utilization

    User’s Manual of IGS-4215 PoE Series  4.3.3 Bandwidth Utilization The Bandwidth Utilization page displays the percentage of the total available bandwidth being used on the ports. Bandwidth utilization statistics can be viewed using a line graph. The Bandwidth Utilization screen in Figure 4-3-7 appears.

  • Page 110: Port Mirroring

    User’s Manual of IGS-4215 PoE Series  4.3.4 Port Mirroring Configure port Mirroring on this page. This function provides monitoring of network traffic that forwards a copy of each incoming or outgoing packet from one port of a network switch to another port where the packet can be studied. It enables the manager to keep close track of switch performance and alter it if necessary.
  • Page 111 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Session ID Set the port mirror session ID. Possible ID are: 1 to 4. • Monitor Session Enable or disable the port mirroring function. State •...

  • Page 112: Jumbo Frame

    User’s Manual of IGS-4215 PoE Series  4.3.5 Jumbo Frame This page provides to select the maximum frame size allowed for the switch port. The Jumbo Frame screen in Figure 4-3-11 Figure 4-3-12 appear. Figure 4-3-11: Jumbo Frame Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 113: Port Error Disabled Configuration

    User’s Manual of IGS-4215 PoE Series  4.3.6 Port Error Disabled Configuration This page provides to set port error disable function. The Port Error Disable Configuration screens in Figure 4-3-13 Figure 4-3-14 appear. Figure 4-3-13: Error Disabled Recovery Page Screenshot The page includes the following fields: Object Description...
  • Page 114 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-3-14: Error Disabled Information Page Screenshot The page includes the following fields: Object Description • Recovery Interval Displays the current recovery interval time. • BPDU Guard Displays the current BPDU guard status. •...

  • Page 115: Port Error Disabled Status

    User’s Manual of IGS-4215 PoE Series  4.3.7 Port Error Disabled Status This page provides disable that transitions a port into error disable and the recovery options. The ports were disabled by some protocols such as BPDU Guard, Loopback and UDLD. The Port Error Disable screen in Figure 4-3-15 appears.

  • Page 116: Protected Ports

    User’s Manual of IGS-4215 PoE Series  4.3.8 Protected Ports Overview When a switch port is configured to be a member of protected group (also called Private VLAN), communication between protected ports within that group can be prevented. Two application examples are provided in this section: •...
  • Page 117 User’s Manual of IGS-4215 PoE Series The configuration of promiscuous and isolated ports applies to all private VLANs. When traffic comes in on a promiscuous port in a private VLAN, the VLAN mask from the VLAN table is applied. When traffic comes in on an isolated port, the private VLAN mask is applied in addition to the VLAN mask from the VLAN table.

  • Page 118: Eee

    User’s Manual of IGS-4215 PoE Series  4.3.9 EEE What is EEE? Energy Efficient Ethernet (EEE) is a power saving option that reduces the power usage when there is low or no traffic utilization.EEE works by powering down circuits when there is no traffic. When a port gets data to be transmitted, all circuits are powered up.
  • Page 119 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-3-19: EEE-enabled Status Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • EEE State Displays the current EEE state.

  • Page 120: Sfp Module Information

    User’s Manual of IGS-4215 PoE Series 4.3.10 SFP Module Information Industrial Managed Switch has supported the SFP module with digital diagnostics monitoring (DDM) function; this feature is also known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP module via the SFP Module Information page.
  • Page 121 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port Select port number from this drop-down list. Figure 4-3-21: Fiber Port Status Page Screenshot The page includes the following fields: Object Description • OE-Present Displays the current SFP OE-present.

  • Page 122: Sfp Module Detail Status

    User’s Manual of IGS-4215 PoE Series  4.3.10.2 SFP Module Detail Status The SFP Module Detail Status screen in Figure 4-3-22 appears. Figure 4-3-22: SFP Module Detail Status Page Screenshot with Sample Switch The page includes the following fields: Object Description •...

  • Page 123: Link Aggregation

    User’s Manual of IGS-4215 PoE Series  4.4 Link Aggregation Port Aggregation optimizes port usage by linking a group of ports together to form a single Link Aggregated Groups (LAGs). Port Aggregation multiplies the bandwidth between the devices, increases port flexibility, and provides link redundancy. Each LAG is composed of ports of the same speed, set to full-duplex operations.
  • Page 124 User’s Manual of IGS-4215 PoE Series The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems that require high-speed redundant links. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection.

  • Page 125: Lag Setting

    User’s Manual of IGS-4215 PoE Series  4.4.1 LAG Setting This page allows configuring load balance algorithm configuration settings. The LAG Setting screens in Figure 4-4-2 Figure 4-4-3 appear. Figure 4-4-2: LAG Setting Page Screenshot The page includes the following fields: Object Description Load Balance...

  • Page 126: Lag Management

    User’s Manual of IGS-4215 PoE Series  4.4.2 LAG Management This page is used to configure the LAG management. The LAG Management screens in Figure 4-4-4 Figure 4-4-5 appear. Figure 4-4-4: LAG Management Page Screenshot The page includes the following fields: Object Description •...

  • Page 127: Lag Port Setting

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • The LAG for the settings contained in the same row. • Name Displays the current name. • Type Displays the current type. • Link State Displays the link state.
  • Page 128 User’s Manual of IGS-4215 PoE Series • Flow Control When Auto Speed is selected for a port, this section indicates the flow control capability that is advertised to the link partner. When a fixed-speed setting is selected, that is what is used. The current Rx column indicates whether pause frames on the port are obeyed.

  • Page 129: Lacp Setting

    User’s Manual of IGS-4215 PoE Series 4.4.4 LACP Setting This page is used to configure the LACP system priority setting. The LACP Setting screens in Figure 4-4-8 Figure 4-4-9 appear. Figure 4-4-8: LACP Setting Page Screenshot The page includes the following fields: Object Description System Priority...

  • Page 130: Lacp Port Setting

    User’s Manual of IGS-4215 PoE Series  4.4.5 LACP Port Setting This page is used to configure the LACP port setting. The LACP Port Setting screens in Figure 4-4-10 Figure 4-4-11 appear. Figure 4-4-10: LACP Port Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 131: Lag Status

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port Name The switch port number of the logical port. • Priority Displays the current LACP priority parameter. Timeout • Displays the current timeout parameter. 4.4.6 LAG Status This page displays LAG status.
  • Page 132 User’s Manual of IGS-4215 PoE Series Object Description Trunk • Displays the current trunk ID. • Port Displays the current port number. • PartnerSysId The system ID of link partner. This field would be updated when the port receives LACP PDU from link partner. •...

  • Page 133: Vlan Overview

    User’s Manual of IGS-4215 PoE Series  4.5 VLAN 4.5.1 VLAN Overview A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN.

  • Page 134: Ieee 802.1Q Vlan

    User’s Manual of IGS-4215 PoE Series This section has the following items: Management VLAN  Configures the management VLAN Create VLAN  Creates the VLAN group Interface Settings  Configures mode and PVID on the VLAN port Port to VLAN ...
  • Page 135 User’s Manual of IGS-4215 PoE Series ■ IEEE 802.1Q Standard IEEE 802.1Q (tagged) VLAN is implemented on the Switch. 802.1Q VLAN requiring tagging, which enables them to span the entire network (assuming all switches on the network are IEEE 802.1Q-compliant). VLAN allows a network to be segmented in order to reduce the size of broadcast domains.
  • Page 136 User’s Manual of IGS-4215 PoE Series The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or Logical Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC) must be recalculated.
  • Page 137 User’s Manual of IGS-4215 PoE Series ■ Assigning Ports to VLANs Before enabling VLANs for the switch, you must first assign each port to the VLAN group(s) in which it will participate. By default all ports are assigned to VLAN 1 as untagged ports. Add a port as a tagged port if you want it to carry traffic for one or more VLANs, and any intermediate network devices or the host at the other end of the connection supports VLANs.

  • Page 138: Management Vlan

    User’s Manual of IGS-4215 PoE Series  4.5.3 Management VLAN Configure Management VLAN on this page. The screens in Figure 4-5-1 Figure 4-5-2 appear. Figure 4-5-1: Management VLAN Setting Page Screenshot The page includes the following fields: Object Description • Management VLAN Provides the managed VLAN ID.

  • Page 139: Create Vlan

    User’s Manual of IGS-4215 PoE Series  4.5.4 Create VLAN Create/delete VLAN on this page. The screens in Figure 4-5-3 Figure 4-5-4 appear. Figure 4-5-3: VLAN Setting Page Screenshot The page includes the following fields: Object Description VLAN List • Indicates the ID of this particular VLAN.

  • Page 140: Interface Settings

    User’s Manual of IGS-4215 PoE Series 4.5.5 Interface Settings This page is used for configuring the Industrial Managed Switch port VLAN. The VLAN per Port Configuration page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page.
  • Page 141 User’s Manual of IGS-4215 PoE Series The Industrial Managed Switch supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge, aggregating traffic from numerous independent customer LANs into the MAN (Metro Access Network) space. One of the purposes of the provider bridge is to recognize and use VLAN tags so that the VLANs in the MAN space can be used independent of the customers’...
  • Page 142 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description Port Select • Select port number from this drop-down list to set VLAN port setting. • Interface VLAN Mode Set the port in access, trunk, hybrid and tunnel mode. Trunk means the port allows traffic of multiple VLANs.
  • Page 143 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-5-6: Edit Interface Setting Page Screenshot The page includes the following fields: Object Description Port • The switch port number of the logical port. • Interface VLAN Mode Displays the current interface VLAN mode.

  • Page 144: Port To Vlan

    User’s Manual of IGS-4215 PoE Series 4.5.6 Port to VLAN Use the VLAN Static Table to configure port members for the selected VLAN index. This page allows you to add and delete port members of each VLAN. The screen in Figure 4-5-7 appears.

  • Page 145: Port Vlan Membership

    User’s Manual of IGS-4215 PoE Series 4.5.7 Port VLAN Membership This page provides an overview of membership status for VLAN users. The VLAN Membership Status screen in Figure 4-5-8 appears. Figure 4-5-8: Port VLAN Membership Table Page Screenshot The page includes the following fields: Object Description Port...

  • Page 146: Protocol Vlan Group Setting

    User’s Manual of IGS-4215 PoE Series  4.5.8 Protocol VLAN Group Setting The network devices required to support multiple protocols cannot be easily grouped into a common VLAN. This may require non-standard devices to pass traffic between different VLANs in order to encompass all the devices participating in a specific protocol.
  • Page 147 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-5-10: Protocol VLAN Group State Page Screenshot The page includes the following fields: Object Description Group ID • Displays the current group ID. • Frame Type Displays the current frame type. •...

  • Page 148: Protocol Vlan Port Setting

    User’s Manual of IGS-4215 PoE Series  4.5.9 Protocol VLAN Port Setting This page allows you to map an already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port Setting/State screens in Figure 4-5-11 Figure 4-5-12 appear.

  • Page 149: Gvrp Setting

    User’s Manual of IGS-4215 PoE Series  4.5.10 GVRP Setting GARP VLAN Registration Protocol (GVRP) defines a way for switches to exchange VLAN information in order to register VLAN members on ports across the network. VLANs are dynamically configured based on join messages issued by host devices and propagated throughout the network. GVRP must be enabled to permit automatic VLAN registration, and to support VLANs which extend beyond the local switch.
  • Page 150 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description GVRP • Controls whether GVRP is enabled or disabled on this switch. • Join Timeout The interval between transmitting requests/queries to participate in a VLAN group. Range: 20-16375 centiseconds.

  • Page 151: Gvrp Port Setting

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description GVRP Status • Displays the current GVRP status. • Join Timeout Displays the current join timeout parameter. • Leave Timeout Displays the current leave timeout parameter. •...

  • Page 152: Gvrp Vlan

    User’s Manual of IGS-4215 PoE Series Figure 4-5-16: GVRP Port Status Page Screenshot The page includes the following fields: Object Description Port • The switch port number of the logical port. • Enable Status Displays the current GVRP port state. •...

  • Page 153: Gvrp Statistics

    User’s Manual of IGS-4215 PoE Series 4.5.13 GVRP Statistics The GVRP Port Statistics and Error Statistics screens in Figure 4-5-18 Figure 4-5-19 appear. Figure 4-5-18: GVRP Port Statistics Page Screenshot The page includes the following fields: Object Description Port • The switch port number of the logical port.
  • Page 154 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description Port • The switch port number of the logical port. • Invalid Protocol ID Displays the current invalid protocol ID. • Invalid Attribute Type Displays the current invalid attribute type. •...

  • Page 155: Vlan Setting Example

    User’s Manual of IGS-4215 PoE Series  4.5.14 VLAN Setting Example: - Separate VLANs - 802.1Q VLAN Trunk 4.5.14.1 Two Separate 802.1Q VLANs The diagram shows how the Industrial Managed Switch handles Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and VLAN Group 3 are separated VLANs.
  • Page 156 User’s Manual of IGS-4215 PoE Series Tagged packet entering VLAN 2  While [PC-3] transmits a tagged packet with VLAN Tag=2 entering Port-3. [PC-1] and [PC-2] will receive the packet through Port-1 and Port-2. While the packet leaves Port-1 and Port-2, it will be stripped away its tag becoming an untagged packet. Untagged packet entering VLAN 3 ...
  • Page 157 User’s Manual of IGS-4215 PoE Series Assign Tagged/Untagged to each port: VLAN ID = 2: Port-1 & 2 = Untagged, Port-3 = Tagged, Port -4~6 = Excluded. VLAN ID = 3: Port-4 & 5 = Untagged, Port -6 = Tagged, Port-1~3 = Excluded.

  • Page 158: Vlan Trunking Between Two 802.1Q Aware Switches

    User’s Manual of IGS-4215 PoE Series  4.5.14.2 VLAN Trunking between two 802.1Q aware switches In most cases, they are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access other switches within the same VLAN group. The screens in following appear.
  • Page 159 User’s Manual of IGS-4215 PoE Series Setup steps Create VLAN Group 2 and 3 Add VLAN group 2 and group 3 Assign VLAN mode and PVID to each port: Port-1,Port-2 and Port-3 : VLAN Mode = Hybrid, PVID=2 Port-4,Port-5 and Port-6 : VLAN Mode = Hybrid, PVID=3 Port-7 : VLAN Mode = Hybrid, PVID=1...
  • Page 160 User’s Manual of IGS-4215 PoE Series Assign Tagged/Untagged to each port: VLAN ID = 1: Port-1~6 = Untagged, Port -7 = Excluded. VLAN ID = 2: Port-1 & 2 = Untagged, Port-3 & 7 = Tagged, Port -4~6 = Excluded. VLAN ID = 3: Port-4 &...

  • Page 161: Spanning Tree Protocol

    User’s Manual of IGS-4215 PoE Series  4.6 Spanning Tree Protocol 4.6.1 Theory The Spanning Tree Protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
  • Page 162 User’s Manual of IGS-4215 PoE Series The switch sends BPDUs to communicate and construct the spanning-tree topology. All switches connected to the LAN on which the packet is transmitted will receive the BPDU. BPDUs are not directly forwarded by the switch, but the receiving switch uses the information in the frame to calculate a BPDU, and, if the topology changes, initiates a BPDU transmission.
  • Page 163 User’s Manual of IGS-4215 PoE Series Figure 4-6-1: STP Port State Transitions You can modify each port state by using management software. When you enable STP, every port on every switch in the network goes through the blocking state and then transitions through the states of listening and learning at power up. If properly configured, each port stabilizes to the forwarding or blocking state.
  • Page 164 User’s Manual of IGS-4215 PoE Series Priority A relative priority for each switch – lower 32768 numbers give a higher priority and a greater chance of a given switch being elected as the root bridge Hello Time The length of time between broadcasts of 2 seconds the hello message by the switch Maximum Age Timer...
  • Page 165 User’s Manual of IGS-4215 PoE Series Max. Age – The Max Age can be from 6 to 40 seconds. At the end of the Max Age, if a BPDU has still not been received from the Root Bridge, your Switch will start sending its own BPDU to all other Switches for permission to become the Root Bridge. If it turns out that your Switch has the lowest Bridge Identifier, it will become the Root Bridge.
  • Page 166 User’s Manual of IGS-4215 PoE Series Figure 4-6-2: Before Applying the STA Rules In this example, only the default STP values are used. Figure 4-6-3: After Applying the STA Rules...
  • Page 167 User’s Manual of IGS-4215 PoE Series The switch with the lowest Bridge ID (switch C) was elected the root bridge, and the ports were selected to give a high port cost between switches B and C. The two (optional) Gigabit ports (default port cost = 20,000) on switch A are connected to one (optional) Gigabit port on both switch B and C.

  • Page 168: Stp Global Settings

    User’s Manual of IGS-4215 PoE Series  4.6.2 STP Global Settings This page allows you to configure STP system settings. The settings are used by all STP Bridge instances in the Switch. The Industrial Managed Switch support the following Spanning Tree protocols: ‧...
  • Page 169 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-6-5: STP Information Page Screenshot The page includes the following fields: Object Description • STP Displays the current STP state. • BPDU Forward Displays the current BPDU forward mode. •...

  • Page 170: Stp Port Setting

    User’s Manual of IGS-4215 PoE Series  4.6.3 STP Port Setting This page allows you to configure per port STP settings. The STP Port Setting screens in Figure 4-6-6 Figure 4-6-7 appear. Figure 4-6-6: STP Port Configuration Page Screenshot The page includes the following fields: Object Description Port Select...
  • Page 171 User’s Manual of IGS-4215 PoE Series By default, the system automatically detects the speed and duplex mode used on each port, and configures the path cost according to the values shown below. Path cost “0” is used to indicate auto-configuration mode. When the short path cost method is selected and the default path cost recommended by the IEEE 8021w standard exceeds 65,535, the default is set to 65,535.
  • Page 172 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description Port • The switch port number of the logical STP port. • Admin Enable Displays the current STP port mode status. External Cost • Displays the current external cost. •...

  • Page 173: Cist Instance Setting

    User’s Manual of IGS-4215 PoE Series  4.6.4 CIST Instance Setting This page allows you to configure CIST instance settings. The CIST Instance Setting and Information screens in Figure 4-6-8 & Figure 4-6-9 appear. Figure 4-6-8: CIST Instance Setting Page Screenshot The page includes the following fields: Object Description...
  • Page 174 User’s Manual of IGS-4215 PoE Series Tx Hold Count • The number of BPDU's a bridge port can send per second. When exceeded, transmission of the next BPDU will be delayed. Valid values are in the range 1 to 10 BPDU's per second. •...

  • Page 175: Cist Port Setting

    User’s Manual of IGS-4215 PoE Series  4.6.5 CIST Port Setting This page allows you to configure per port CIST priority and cost. The CIST Port Setting and Status screens in Figure 4-6-10 Figure 4-6-11 appear. Figure 4-6-10: CIST Port Setting Page Screenshot The page includes the following fields: Object Description...
  • Page 176 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-6-11: CIST Port Status Page Screenshot The page includes the following fields: Object Description Port • The switch port number of the logical STP port. • Indentifier (Priority / Displays the current indentifier (Priority / Port ID).

  • Page 177: Mst Instance Configuration

    User’s Manual of IGS-4215 PoE Series 4.6.6 MST Instance Configuration This page allows the user to configure MST Instance Configuration. The MST Instance Setting, Information and Status screens Figure 4-6-12, Figure 4-6-13 Figure 4-6-14 appear. Figure 4-6-12: MST Instance Setting Page Screenshot The page includes the following fields: Object Description...
  • Page 178 User’s Manual of IGS-4215 PoE Series Figure 4-6-14: MST Instance Status Page Screenshot The page includes the following fields: Object Description • MSTI ID Displays the MSTI ID. • Regional Root Bridge Displays the current designated root bridge. • Internal Root Cost Displays the current internal root cost.

  • Page 179: Mst Port Setting

    User’s Manual of IGS-4215 PoE Series  4.6.7 MST Port Setting This page allows the user to inspect the current STP MSTI port configurations, and possibly change them as well. A MSTI port is a virtual port, which is instantiated separately for each active CIST (physical) port for each MSTI instance configured and applicable for the port.
  • Page 180 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-6-16 : MST Port Status Page Screenshot The page includes the following fields: Object Description • MSTI ID Displays the current MSTI ID. • Port The switch port number of the logical STP port. •...

  • Page 181: Stp Statistics

    User’s Manual of IGS-4215 PoE Series  4.6.8 STP Statistics This page displays STP statistics. The STP statistics screen in Figure 4-6-17 appears. Figure 4-6-17: STP Statistics Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical STP port. •...

  • Page 182: Properties

    User’s Manual of IGS-4215 PoE Series 4.7.1 Properties This page provides multicast properties related configuration. The multicast Properties and Information screen in Figure 4-7-1 Figure 4-7-2 appear. Figure 4-7-1: Properties Setting Page Screenshot The page includes the following fields: Object Description Unknown Multicast •...

  • Page 183: Multicast Throttling Setting

    User’s Manual of IGS-4215 PoE Series 4.7.2 Multicast Throttling Setting Multicast throttling sets a maximum number of multicast groups that a port can join at the same time. When the maximum number of groups is reached on a port, the switch can take one of two actions; either “deny” or “replace”. If the action is set to deny, any new multicast join reports will be dropped.

  • Page 184: Multicast Profile Setting

    User’s Manual of IGS-4215 PoE Series Figure 4-7-4: IGMP Port Max Groups Information Page Screenshot The page includes the following fields: Object Description Port • The switch port number of the logical port. • Max Groups Displays the current Max groups. •...
  • Page 185 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description IP Type • Select IPv4 or IPv6 from this drop-down list. • Profile Index Indicates the ID of this particular profile. • Group from Specifies multicast groups to include in the profile. Specify a multicast group range by entering a start IP address.

  • Page 186: Igmp Snooping

    User’s Manual of IGS-4215 PoE Series  4.8 IGMP Snooping The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing.
  • Page 187 User’s Manual of IGS-4215 PoE Series Figure 4-8-2: Multicast Flooding Figure 4-8-3: IGMP Snooping Multicast Stream Control...
  • Page 188 User’s Manual of IGS-4215 PoE Series IGMP Versions 1 and 2  Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group. IGMP version 1 is defined in RFC 1112.
  • Page 189 User’s Manual of IGS-4215 PoE Series Figure 4-8-4: IGMP State Transitions IGMP Querier –  A router, or multicast-enabled switch, can periodically ask their hosts if they want to receive multicast traffic. If there is more than one router/switch on the LAN performing IP multicasting, one of these devices is elected “querier” and assumes the role of querying the LAN for group members.

  • Page 190: Igmp Setting

    User’s Manual of IGS-4215 PoE Series 4.8.1 IGMP Setting This page provides IGMP Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the current unit, as reflected by the page header. The IGMP Snooping Setting and Information screens in Figure 4-8-5, Figure 4-8-6...
  • Page 191 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • IGMP Snooping Status Displays the current IGMP snooping status. • IGMP Snooping Version Displays the current IGMP snooping version. IGMP Snooping V2 Report • Displays the current IGMP snooping v2 report suppression. Suppression Figure 4-8-7: IGMP Snooping Information Page Screenshot The page includes the following fields:...

  • Page 192: Igmp Querier Setting

    User’s Manual of IGS-4215 PoE Series 4.8.2 IGMP Querier Setting This page provides IGMP Querier Setting. The IGMP Querier Setting screens in Figure 4-8-8 Figure 4-8-9 appear. Figure 4-8-8: IGMP VLAN Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 193: Igmp Static Group

    User’s Manual of IGS-4215 PoE Series 4.8.3 IGMP Static Group Multicast filtering can be dynamically configured using IGMP Snooping and IGMP Query messages as described in above sections. For certain applications that require tighter control, you may need to statically configure a multicast service on the Industrial Managed Switch.

  • Page 194: Igmp Group Table

    User’s Manual of IGS-4215 PoE Series 4.8.4 IGMP Group Table This page provides Multicast Database. The IGMP Group Table screen in Figure 4-8-12 appears. Figure 4-8-12: IGMP Group Table Page Screenshot The page includes the following fields: Object Description • VLAN ID Displays the current VID.
  • Page 195 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description VLAN ID • Selects the VLAN to propagate all multicast traffic coming from the attached multicast router. • Type Sets the Router port type. The types of Router port as below: Static ...

  • Page 196: Igmp Router Table

    User’s Manual of IGS-4215 PoE Series 4.8.6 IGMP Router Table This page provides Router Table. The Dynamic, Static and Forbidden Router Table screens in Figure 4-8-15, Figure 4-8-16 Figure 4-8-17 appear. Figure 4-8-15: Dynamic Router Table Page Screenshot The page includes the following fields: Object Description VLAN ID...

  • Page 197: Igmp Forward All

    User’s Manual of IGS-4215 PoE Series 4.8.7 IGMP Forward All This page provides IGMP Forward All. The Forward All screen in Figure 4-8-18 appears. Figure 4-8-18: Forward All Setting Page Screenshot The page includes the following fields: Object Description VLAN ID •...

  • Page 198: Igmp Snooping Statics

    User’s Manual of IGS-4215 PoE Series 4.8.8 IGMP Snooping Statics This page provides IGMP Snooping Statics. The IGMP Snooping Statics screen in Figure 4-8-19appears. Figure 4-8-19: IGMP Snooping Statistics Screenshot...
  • Page 199 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Total RX Displays the current total RX • Valid RX Displays the current valid RX • Invalid RX Displays the current invalid RX • Other RX Displays the current other RX •...

  • Page 200: Igmp Filter Setting

    User’s Manual of IGS-4215 PoE Series 4.8.9 IGMP Filter Setting The Filter Setting and Status screens in Figure 4-8-20and Figure 4-8-21 appear. Figure 4-8-20: Filter Setting Page Screenshot The page includes the following fields: Object Description • Port Select Select port number from this drop-down list. •...

  • Page 201: Mld Snooping

    User’s Manual of IGS-4215 PoE Series  4.9 MLD Snooping 4.9.1 MLD Setting This page provides MLD Snooping related configuration. Most of the settings are global, whereas the Router Port configuration is related to the current unit, as reflected by the page header.
  • Page 202 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • MLD Snooping Status Displays the current MLD snooping status. • MLD Snooping Version Displays the current MLD snooping version. MLD Snooping Report • Displays the current MLD snooping report suppression. Suppression Figure 4-9-3: MLD Snooping Table Page Screenshot The page includes the following fields:...

  • Page 203: Mld Static Group

    User’s Manual of IGS-4215 PoE Series  4.9.2 MLD Static Group The MLD Static Group configuration screens in Figure 4-9-4 Figure 4-9-5 appear. Figure 4-9-4: Add MLD Static Group Page Screenshot The page includes the following fields: Object Description • VLAN ID Select VLAN ID from this drop-down list.

  • Page 204: Mld Group Table

    User’s Manual of IGS-4215 PoE Series  4.9.3 MLD Group Table This page provides MLD Group Table. The MLD Group Table screen in Figure 4-9-6 appears. Figure 4-9-6: MLD Group Table Page Screenshot The page includes the following fields: Object Description •...
  • Page 205 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description VLAN ID • Selects the VLAN to propagate all multicast traffic coming from the attached multicast router. • Type Sets the Router port type. The types of Router port as below: Static Forbid •...

  • Page 206: Mld Router Table

    User’s Manual of IGS-4215 PoE Series  4.9.5 MLD Router Table This page provides Router Table. The Dynamic, Static and Forbidden Router Table screens in Figure 4-9-9, Figure 4-9-10 Figure 4-9-11 appear. Figure 4-9-9: Dynamic Router Table Page Screenshot The page includes the following fields: Object Description VLAN ID...

  • Page 207: Mld Forward All

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description VLAN ID • Displays the current VLAN ID. • Port Mask Displays the current port mask. 4.9.6 MLD Forward All This page provides MLD Forward All. The Forward All screen in Figure 4-9-12 appears.

  • Page 208: Mld Snooping Statics

    User’s Manual of IGS-4215 PoE Series 4.9.7 MLD Snooping Statics This page provides MLD Snooping Statics. The MLD Snooping Statics screen in Figure 4-9-13 appears. Figure 4-9-13: MLD Snooping Statistics Page Screenshot The page includes the following fields: Object Description •...

  • Page 209: Mld Filter Setting

    User’s Manual of IGS-4215 PoE Series • Special Group Query Displays the current special group query TX. • Special Group & Displays the current special group & source query TX. Source Query TX Buttons : Click to clear the MLD Snooping Statistics. 4.9.8 MLD Filter Setting The Filter Setting and Status screens in Figure 4-9-14...

  • Page 210: Link Layer Discovery Protocol

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port Displays the current port. • Filter Profile ID Displays the current filter profile ID. • Action Click to display detail profile parameter. Click to delete the MLD filter profile entry. : Click to refresh the MLD Snooping Statistics.

  • Page 211: Lldp Global Setting

    User’s Manual of IGS-4215 PoE Series 4.10.2 LLDP Global Setting This Page allows the user to inspect and configure the current LLDP port settings. The LLDP Global Setting and Config screens Figure 4-10-1 Figure 4-10-2 appear. Figure 4-10-1: Global Setting Page Screenshot The page includes the following fields: Object Description...
  • Page 212 User’s Manual of IGS-4215 PoE Series information isn't valid anymore. Tx Reinit controls the amount of seconds between the shutdown frame and a new LLDP initialization. Valid values are restricted to 1 - 10 seconds. • Transmit Delay If some configuration is changed (e.g. the IP address) a new LLDP frame is transmitted, but the time between the LLDP frames will always be at least the value of Transmit Delay seconds.

  • Page 213: Lldp Port Setting

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • LLDP Enable Displays the current LLDP status. • LLDP PDU Disable Displays the current LLDP PDU disable action. Action • Transmission Interval Displays the current transmission interval. •...
  • Page 214 User’s Manual of IGS-4215 PoE Series • Port Select Select port from this drop-down list. • Optional TLV Select Configures the information included in the TLV field of advertised messages. System Name: When checked the "System Name" is included in LLDP ...
  • Page 215 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port The switch port number of the logical port. • State Displays the current LLDP status. • Selected Optional Displays the current selected optional TLVs. TLVs The VLAN Name TLV VLAN Selection and LLDP Port VLAN TLV Status screens in Figure 4-10-5...

  • Page 216: Lldp Local Device

    User’s Manual of IGS-4215 PoE Series 4.10.4 LLDP Local Device Use the LLDP Local Device Information screen to display information about the switch, such as its MAC address, chassis ID, management IP address, and port information. The Local Device Summary and Port Status screens in Figure 4-10-7 Figure 4-10-8 appear.

  • Page 217: Lldp Remote Device

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Interface The switch port number of the logical port. • LLDP Status Displays the current LLDP status. • LLDP MED Status Displays the current LLDP MED Status. 4.10.5 LLDP Remote Device This Page provides a status overview for all LLDP remote devices.

  • Page 218: Med Network Policy

    User’s Manual of IGS-4215 PoE Series  4.10.6 MED Network Policy Network Policy Discovery enables the efficient discovery and diagnosis of mismatch issues with the VLAN configuration, along with the associated Layer 2 and Layer 3 attributes, which apply for a set of specific protocol applications on that port. Improper network policy configurations are a very significant issue in VoIP environments that frequently result in voice quality degradation or loss of service.
  • Page 219 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • LLDP MED Policy for Set the LLDP MED policy for voice application mode. Voice Application • Network Policy Select network policy number for this drop down list. Number •...
  • Page 220 User’s Manual of IGS-4215 PoE Series Untagged indicates that the device is using an untagged frame format and as such does not include a tag header as defined by IEEE 802.1Q-2003. In this case, both the VLAN ID and the Layer 2 priority fields are ignored and only the DSCP value has relevance.

  • Page 221: Med Port Setting

    User’s Manual of IGS-4215 PoE Series 4.10.7 MED Port Setting The Port LLDP MED Configuration/Port Setting Table screens in Figure 4-10-12 Figure 4-10-13 appear. Figure 4-10-12: Port LLDP MED Configuration Page Screenshot The page includes the following fields: Object Description •...
  • Page 222 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Interface The switch port number of the logical port. • LLDP MED Status Displays the current LLDP MED status. • Active Displays the current active status. •...
  • Page 223 User’s Manual of IGS-4215 PoE Series Figure 4-10-15: LLDP MED Port Location Table Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • Coordinate Displays the current coordinate. • Civic Address Displays the current civic address.

  • Page 224: Lldp Statistics

    User’s Manual of IGS-4215 PoE Series 4.10.8 LLDP Statistics Use the LLDP Device Statistics screen to general statistics for LLDP-capable devices attached to the switch, and for LLDP protocol messages transmitted or received on all local interfaces. The LLDP Global and Port Statistics screens in Figure 4-10-16 Figure 4-10-17...
  • Page 225 User’s Manual of IGS-4215 PoE Series Figure 4-10-17: LLDP Port Statistics Page Screenshot The page includes the following fields: Object Description • Port The port on which LLDP frames are received or transmitted. • TX Frame – Total The number of LLDP frames transmitted on the port. •...

  • Page 226: Mac Address Table

    User’s Manual of IGS-4215 PoE Series 4.11 MAC Address Table Switching of frames is based upon the DMAC address contained in the frame. The Industrial Managed Switch builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame).
  • Page 227 User’s Manual of IGS-4215 PoE Series Buttons : Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields : Flushes all dynamic entries Figure 4-11-2: MAC Address Information Page Screenshot Object Description • MAC Address The MAC address of the entry.

  • Page 228: Dynamic Address Setting

    User’s Manual of IGS-4215 PoE Series 4.11.2 Dynamic Address Setting By default, dynamic entries are removed from the MAC table after 300 seconds. The Dynamic Address Setting/Status screens Figure 4-11-5 Figure 4-11-6 appear. Figure 4-11-3: Dynamic Addresses Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 229: Static Mac Setting

    User’s Manual of IGS-4215 PoE Series 4.11.3 Static MAC Setting The static entries in the MAC table are shown in this table. The MAC table is sorted first by VLAN ID and then by MAC address. The Static MAC Setting screens in Figure 4-11-5 Figure 4-11-6 appear.

  • Page 230: Mac Filtering

    User’s Manual of IGS-4215 PoE Series 4.11.4 MAC Filtering By filtering MAC address, the switch can easily filter the per-configured MAC address and reduce the un-safety. The Static MAC Setting screens in Figure 4-11-7 Figure 4-11-8 appear. Figure 4-11-7: MAC Filtering Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 231: Quality Of Service

    User’s Manual of IGS-4215 PoE Series 4.12 Quality of Service 4.12.1 Understanding QoS Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.

  • Page 232: General

    User’s Manual of IGS-4215 PoE Series 4.12.2 General 4.12.2.1 QoS Properties The QoS Global Setting and Information screen in Figure 4-12-1 Figure 4-12-2 appear. Figure 4-12-1: QoS Global Setting Page Screenshot The page includes the following fields: Object Description • QoS Mode Enable or disable QoS mode.

  • Page 233: Qos Port Settings

    User’s Manual of IGS-4215 PoE Series  4.12.2.2 QoS Port Settings The QoS Port Settings and Status screen in Figure 4-12-3 Figure 4-12-4 appear. Figure 4-12-3: QoS Port Setting Page Screenshot The page includes the following fields: Object Description • Port Select Select port number for this drop down list.

  • Page 234: Queue Settings

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port The switch port number of the logical port. • CoS Value Displays the current CoS value. • Remark CoS Displays the current remark CoS. •...

  • Page 235: Cos Mapping

    User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-12-6: Queue Information Page Screenshot The page includes the following fields: Object Description • Information Name Displays the current queue method information. • Information Value Displays the current queue value information. 4.12.2.4 CoS Mapping The CoS to Queue and Queue to CoS Mapping screens in Figure 4-12-7...
  • Page 236 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. CoS Mapping  Figure 4-12-8: CoS Mapping Page Screenshot The page includes the following fields: Object Description • CoS Displays the current CoS value. • Mapping to Queue Displays the current mapping to queue.

  • Page 237: Dscp Mapping

    User’s Manual of IGS-4215 PoE Series  4.12.2.5 DSCP Mapping The DSCP to Queue and Queue to DSCP Mapping screens in Figure 4-12-9 Figure 4-12-10 appear. Figure 4-12-9: DSCP to Queue and Queue to DSCP Mapping Page Screenshot The page includes the following fields: Object Description •...

  • Page 238: Ip Precedence Mapping

    User’s Manual of IGS-4215 PoE Series Figure 4-12-10: DSCP Mapping Page Screenshot The page includes the following fields: Object Description • DSCP Displays the current CoS value. • Mapping to Queue Displays the current mapping to queue. • Queue Displays the current queue value. •...
  • Page 239 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Queue Select Queue value from this drop-down list. • IP Precedence Select IP Precedence value from this drop-down list. Buttons : Click to apply changes. Figure 4-12-12: IP Precedence Mapping Page Screenshot The page includes the following fields: Object...

  • Page 240: Qos Basic Mode

    User’s Manual of IGS-4215 PoE Series 4.12.3 QoS Basic Mode 4.12.3.1 Global Settings The Basic Mode Global Settings and QoS Information screen in Figure 4-12-13 Figure 4-12-14 appear. Figure 4-8-13: Basic Mode Global Settings Page Screenshot The page includes the following fields: Object Description •...

  • Page 241: Port Settings

    User’s Manual of IGS-4215 PoE Series  4.12.3.2 Port Settings The QoS Port Setting and Status screen in Figure 4-12-15 & Figure 4-12-16 appear. Figure 4-12-15: QoS Port Setting Page Screenshot The page includes the following fields: Object Description • Port Select port number from this drop-down list.

  • Page 242: Bandwidth Control

    User’s Manual of IGS-4215 PoE Series  4.12.4 Bandwidth Control Configure the switch port rate limit for the switch port on this page. 4.12.4.1 Ingress Bandwidth Control This page provides to select the ingress bandwidth preamble. The Ingress Bandwidth Control Setting and Status screens in Figure 4-12-17 Figure 4-12-18 appear.

  • Page 243: Egress Bandwidth Control

    User’s Manual of IGS-4215 PoE Series 4.12.4.2 Egress Bandwidth Control This page provides to select the egress bandwidth preamble. The Egress Bandwidth Control Setting and Status screens in Figure 4-12-19 Figure 4-12-20 appear. Figure 4-12-19: Egress Bandwidth Control Settings Page Screenshot The page includes the following fields: Object Description...

  • Page 244: Egress Queue

    User’s Manual of IGS-4215 PoE Series 4.12.4.3 Egress Queue The Egress Queue Bandwidth Control Settings and Status screens in Figure 4-12-21 Figure 4-12-22 appear. Figure 4-12-21: Egress Queue Bandwidth Settings Page Screenshot The page includes the following fields: Object Description •...

  • Page 245: Storm Control

    User’s Manual of IGS-4215 PoE Series 4.12.5 Storm Control Storm control for the switch is configured on this page. There is an unknown unicast storm rate control, unknown multicast storm rate control, and a broadcast storm rate control. These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table. 4.12.5.1 Global Setting The Storm Control Global Setting and Information screens in Figure 4-12-23...

  • Page 246: Port Setting

    User’s Manual of IGS-4215 PoE Series 4.12.5.2 Port Setting Storm control for the switch is configured on this page. There are three types of storm rate control: Broadcast storm rate control  Unknown Unicast storm rate control  Unknown Multicast storm rate control ...
  • Page 247 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes Figure 4-12-26: Storm Control Information Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. Port State • Displays the current port state.

  • Page 248: Voice Vlan

    User’s Manual of IGS-4215 PoE Series  4.12.6 Voice VLAN 4.12.6.1 Introduction to Voice VLAN Configure the switch port rate limit for the switch port on this page. Voice VLAN is specially configured for the user voice data traffic. By setting a Voice VLAN and adding the ports of the connected voice equipments to Voice VLAN, the user will be able to configure QoS (Quality of service) service for voice data, and improve voice data traffic transmission priority to ensure the calling quality.

  • Page 249: Properties

    User’s Manual of IGS-4215 PoE Series  4.12.6.2 Properties The Voice VLAN feature enables voice traffic to forward on the Voice VLAN, and then the switch can be classified and scheduled to network traffic. It is recommended that there are two VLANs on a port -- one for voice, one for data. Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly.

  • Page 250: Telephony Oui Mac Setting

    User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-12-28: Properites Page Screenshot The page includes the following fields: Object Description • Voice VLAN State Displays the current voice VLAN state. • Voice VLAN ID Displays the current voice VLAN ID. •...
  • Page 251 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • OUI Address A telephony OUI address is a globally unique identifier assigned to a vendor by IEEE. It must be 6 characters long and the input format is "xx:xx:xx" (x is a hexadecimal digit).

  • Page 252: Telephony Oui Port Setting

    User’s Manual of IGS-4215 PoE Series  4.12.6.4 Telephony OUI Port Setting The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network traffic. It is recommended that there be two VLANs on a port - one for voice, one for data. Before connecting the IP device to the switch, the IP phone should configure the voice VLAN ID correctly.

  • Page 253: Security

    User’s Manual of IGS-4215 PoE Series  4.13 Security This section is to control the access of the Industrial Managed Switch, including the user access and management control. The Security Page contains links to the following main topics: Access  Access Method Profile Rules ...
  • Page 254 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Telnet Service Disables or enable telnet service. • Login Authentication List Select login authentication list for this drop down list. • Enable Authentication List Select enable authentication list for this drop down list. •...

  • Page 255: Ssh

    User’s Manual of IGS-4215 PoE Series  4.13.1.2 SSH Configure SSH on this page. This page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules -- the user modules. When a user module has enabled port security on a port, the port is set up for software-based learning.
  • Page 256 User’s Manual of IGS-4215 PoE Series Figure 4-13-4: SSH Information Page Screenshot The page includes the following fields: Object Description • SSH Service Displays the current SSH service. • Login Authentication List Displays the current login authentication list. • Enable Authentication List Displays the current enable authentication list.

  • Page 257: Http

    User’s Manual of IGS-4215 PoE Series  4.13.1.3 HTTP The HTTP Settings and Information screens in Figure 4-13-5 Figure 4-13-6 appear. Figure 4-13-5: HTTP Settings Page Screenshot The page includes the following fields: Object Description • HTTP Service Disable or enable HTTP service. •...

  • Page 258: Https

    User’s Manual of IGS-4215 PoE Series 4.13.1.4 HTTPs The HTTPs Settings and Information screen in Figure 4-13-7 Figure 4-13-8 appear. Figure 4-13-7: HTTPs Settings Page Screenshot The page includes the following fields: Object Description • HTTPs Service Disable or enable HTTPs service. •...

  • Page 259: Access Method Profile Rules

    User’s Manual of IGS-4215 PoE Series 4.13.2 Access Method Profile Rules 4.13.2.1 Profile Rules The Profile Rule Table Setting and Table screens in Figure 4-13-9 Figure 4-13-10 appear. Figure 4-13-9: Profile Rule Table Setting Page Screenshot The page includes the following fields: Object Description •...
  • Page 260 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Access Profile Name Displays the current access profile name. • Priority Displays the current priority. • Management Method Displays the current management method. • Action Displays the current action.

  • Page 261: Access Profiles

    User’s Manual of IGS-4215 PoE Series 4.13.2.2 Access Profiles The access profile screens in Figure 4-13-11 Figure 4-13-12 appear. Figure 4-13-11: Access Profile Page Screenshot The page includes the following fields: Object Description • Access Profile Select access profile from this drop-down list. Buttons : Click to apply changes.

  • Page 262: Aaa

    User’s Manual of IGS-4215 PoE Series  4.13.3 AAA Authentication, authorization, and accounting (AAA) provides a framework for configuring access control on the Industrial Managed Switch. The three security functions can be summarized as follows: • Authentication — Identifies users that request access to the network. •...

  • Page 263: Login List

    User’s Manual of IGS-4215 PoE Series  4.13.3.1 Login List This page is to login list parameters. The authentication list screen in Figure 4-13-13 Figure 4-13-14 appears. Figure 4-13-13: New Authentication List Screenshot The page includes the following fields: Object Description •...

  • Page 264: Enable List

    User’s Manual of IGS-4215 PoE Series  4.13.3.2 Enable List This page is to login list parameters. The authentication list screens in Figure 4-13-15 Figure 4-13-16 appear. Figure 4-13-15: New Authentication List Screenshot The page includes the following fields: Object Description •...

  • Page 265: Radius Server

    User’s Manual of IGS-4215 PoE Series  4.13.3.3 RADIUS Server This page is to configure the RADIUS server connection session parameters. The RADIUS Settings screens in Figure 4-13-17, Figure 4-13-18 Figure 4-13-19 appears. Figure 4-13-17: Use Default Parameters Page Screenshot The page includes the following fields: Object Description...
  • Page 266 User’s Manual of IGS-4215 PoE Series Figure 4-13-18: New Radius Server Page Screenshot The page includes the following fields: Object Description • Server Definition Set the server definition. • Server IP Address of the Radius server IP/name. • Authentication Port The UDP port to use on the RADIUS Authentication Server.
  • Page 267 User’s Manual of IGS-4215 PoE Series • Server Priority Set the server priority. • Dead Time The Dead Time, which can be set to a number between 0 and 3600 seconds, is the period during which the switch will not send new requests to a server that has failed to respond to a previous request.

  • Page 268: Tacacs+ Server

    User’s Manual of IGS-4215 PoE Series  4.13.3.4 TACACS+ Server This page is to configure the TACACS+ server connection session parameters. The TACACS+ Settings screens in Figure 4-13-20, Figure 4-13-21 Figure 4-13-22 appear. Figure 4-13-20: TACACS+ Setting Page Screenshot The page includes the following fields: Object Description •...
  • Page 269 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Server Definition Set the server definition. • Server IP Address of the TACACS+ server IP/name. • Server Port Network (TCP) port of TACACS+ server used for authentication messages. (Range: 1-65535;...

  • Page 270: 270

    User’s Manual of IGS-4215 PoE Series 4.13.4 802.1X Overview of 802.1X (Port-based) Authentication In the 802.1X-world, the user is called the supplicant, the switch is the authenticator, and the RADIUS server is the authentication server. The switch acts as the man-in-the-middle, forwarding requests and responses between the supplicant and the authentication server.
  • Page 271 User’s Manual of IGS-4215 PoE Series Figure 4-9-1  Client—the device (workstation) that requests access to the LAN and switch services and responds to requests from the switch. The workstation must be running 802.1X-compliant client software such as that offered in the Microsoft Windows XP operating system.
  • Page 272 User’s Manual of IGS-4215 PoE Series Authentication Initiation and Message Exchange  The switch or the client can initiate authentication. If you enable authentication on a port by using the dot1x port-control auto interface configuration command, the switch must initiate authentication when it determines that the port link state transitions from down to up.
  • Page 273 User’s Manual of IGS-4215 PoE Series Ports in Authorized and Unauthorized States  The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets. When a client is successfully authenticated, the port transitions to the authorized state, allowing all traffic for the client to flow normally.

  • Page 274: Setting

    User’s Manual of IGS-4215 PoE Series  4.13.4.2 802.1X Setting This page allows you to configure the IEEE 802.1X authentication system. The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication. One or more central servers, the backend servers, determine whether the user is allowed access to the network.

  • Page 275: Port Setting

    User’s Manual of IGS-4215 PoE Series 4.13.4.3 802.1X Port Setting This page allows you to configure the IEEE 802.1X Port Setting. The 802.1X Port Setting screens in Figure 4-13-25 Figure 4-13-26 appear. Figure 4-13-25: 802.1x Port Setting Page Screenshot The page includes the following fields: Object Description •...
  • Page 276 User’s Manual of IGS-4215 PoE Series checked. Valid values are in the range 30 to 65535 seconds. • Quiet Period Sets time to keep silent on supplicant authentication failure. • Supplicant Period Sets the interval for the supplicant to re-transmit EAP request/identify frame. •...

  • Page 277: Guest Vlan Setting

    User’s Manual of IGS-4215 PoE Series 4.13.4.4 Guest VLAN Setting Overview When a Guest VLAN enabled port's link comes up, the switch starts transmitting EAPOL Request Identity frames. If the number of transmissions of such frames exceeds Max. Reauth. Count and no EAPOL frames have been received in the meantime, the switch considers entering the Guest VLAN.
  • Page 278 User’s Manual of IGS-4215 PoE Series all ports. • Guest VLAN Port When Guest VLAN is both globally enabled and enabled (checked) for a given Setting port, the switch considers moving the port into the Guest VLAN according to the rules outlined below.

  • Page 279: Authenticated Host

    User’s Manual of IGS-4215 PoE Series 4.13.4.5 Authenticated Host The Authenticated Host Table screen in Figure 4-13-29 appears. Figure 4-13-29: Authenticated Host Table Page Screenshot The page includes the following fields: Object Description • User Name Displays the current user name. •...

  • Page 280: Port Security

    User’s Manual of IGS-4215 PoE Series 4.13.5 Port Security This page allows you to configure the Port Security Limit Control system and port settings. Limit Control allows for limiting the number of users on a given port. A user is identified by a MAC address and VLAN ID. If Limit Control is enabled on a port, the limit specifies the maximum number of users on the port.
  • Page 281 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-31: Port Security Status Page Screenshot The page includes the following fields: Object Description • Port Name The switch port number of the logical port. • Enable State Displays the current per port security status.

  • Page 282: Dhcp Snooping

    User’s Manual of IGS-4215 PoE Series  4.13.6 DHCP Snooping 4.13.6.1 DHCP Snooping Overview The addresses assigned to DHCP clients on unsecure ports can be carefully controlled using the dynamic bindings registered with DHCP Snooping. DHCP snooping allows a switch to protect a network from rogue DHCP servers or other devices which send port-related information to a DHCP server.
  • Page 283 User’s Manual of IGS-4215 PoE Series  Filtering rules are implemented as follows: ■ If the global DHCP snooping is disabled, all DHCP packets are forwarded. ■ If DHCP snooping is enabled globally, and also enabled on the VLAN where the DHCP packet is received, all DHCP packets are forwarded for a trusted port.

  • Page 284: Global Setting

    User’s Manual of IGS-4215 PoE Series  4.13.6.2 Global Setting DHCP Snooping is used to block intruder on the untrusted ports of switch when it tries to intervene by injecting a bogus DHCP reply packet to a legitimate conversation between the DHCP client and server. Configure DHCP Snooping on this page. The DHCP Snooping Setting and Information screens in Figure 4-13-32 Figure 4-13-33...

  • Page 285: Vlan Setting

    User’s Manual of IGS-4215 PoE Series  4.13.6.3 VLAN Setting Command Usage  When DHCP snooping is enabled globally on the switch, and enabled on the specified VLAN, DHCP packet filtering will be performed on any untrusted ports within the VLAN. ...

  • Page 286: Port Setting

    User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • VLAN List Displays the current VLAN list. • Status Displays the current DHCP snooping status. 4.13.6.4 Port Setting Configures switch ports as trusted or untrusted. Command Usage ...
  • Page 287 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-37: DHCP Snooping Port Setting Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • Type Displays the current type.

  • Page 288: Statistics

    User’s Manual of IGS-4215 PoE Series  4.13.6.5 Statistics The DHCP Snooping Statistics screen in Figure 4-13-38 appears. Figure 4-13-38: DHCP Snooping Statistics Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. •...

  • Page 289: Database Agent

    User’s Manual of IGS-4215 PoE Series  4.13.6.6 Database Agent Overview of the DHCP Snooping Database Agent When DHCP snooping is enabled, the switch uses the DHCP snooping binding database to store information about untrusted interfaces. The database can have up to 8192 bindings. Each database entry (binding) has an IP address, an associated MAC address, the lease time (in hexadecimal format), the interface to which the binding applies, and the VLAN to which the interface belongs.
  • Page 290 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Database Type Select database type. • File Name The name of file image. • Remote Server Fill in your remote server IP address. • Write Delay Specify the duration for which the transfer should be delayed after the binding database changes.

  • Page 291: Rate Limit

    User’s Manual of IGS-4215 PoE Series  4.13.6.7 Rate Limit After enabling DHCP snooping, the switch will monitor all the DHCP messages and implement software transmission. The DHCP Rate Limit Setting and Config screens in Figure 4-13-41 Figure 4-13-42 appear. Figure 4-13-41: DHCP Rate Limit Setting Page Screenshot The page includes the following fields: Object...

  • Page 292: Option82 Global Setting

    User’s Manual of IGS-4215 PoE Series  4.13.6.8 Option82 Global Setting DHCP provides a relay mechanism for sending information about the switch and its DHCP clients to DHCP servers. Known as DHCP Option 82, it allows compatible DHCP servers to use the information when assigning IP addresses, or to set other services or policies for clients.

  • Page 293: Option82 Port Setting

    User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-44: Option82 Global Setting Page Screenshot The page includes the following fields: Object Description • Option82 Remote ID Displays the current option82 remote ID. 4.13.6.9 Option82 Port Setting This function is used to set the retransmitting policy of the system for the received DHCP request message which contains option82.
  • Page 294 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-46: Option82 Global Setting Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • Enable Displays the current status. •...

  • Page 295: Option82 Circuit-Id Setting

    User’s Manual of IGS-4215 PoE Series  4.13.6.10 Option82 Circuit-ID Setting Set creation method for option82, users can define the parameters of circuit-id suboption by themselves. Option82 Circuit-ID Setting screens in Figure 4-13-47 Figure 4-13-48 appear. Figure 4-13-47: Option82 Port Circuit-ID Setting Page Screenshot The page includes the following fields: Object Description...

  • Page 296: Dynamic Arp Inspection

    User’s Manual of IGS-4215 PoE Series  4.13.7 Dynamic ARP Inspection Dynamic ARP Inspection (DAI) is a secure feature. Several types of attacks can be launched against a host or devices connected to Layer 2 networks by "poisoning" the ARP caches. This feature is used to block such attacks. Only valid ARP requests and responses can go through DUT.

  • Page 297: Vlan Setting

    User’s Manual of IGS-4215 PoE Series  4.13.7.2 VLAN Setting DAI VLAN Setting screens in Figure 4-13-51 Figure 4-13-52 appear. Figure 4-13-51: DAI VLAN Setting Page Screenshot The page includes the following fields: Object Description • VLAN ID Indicates the ID of this particular VLAN. Status Enables Dynamic ARP Inspection on the specified VLAN Options:...

  • Page 298: Port Setting

    User’s Manual of IGS-4215 PoE Series  4.13.7.3 Port Setting Configures switch ports as DAI trusted or untrusted and check mode. DAI Port Setting screens in Figure 4-13-53 Figure 4-13-54 appear. Figure 4-13-53: DAI Port Setting Page Screenshot The page includes the following fields: Object Description •...
  • Page 299 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-54: DAI Port Setting Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • Type Display the current port type. •...

  • Page 300: Statistics

    User’s Manual of IGS-4215 PoE Series  4.13.7.4 Statistics Configures switch ports as DAI trusted or untrusted and check mode. DAI Port Setting screen in Figure 4-13-55 appears. Figure 4-13-55: DAI Port Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 301: Arp Rate Limit

    User’s Manual of IGS-4215 PoE Series  4.13.7.5 ARP Rate Limit The ARP Rate Limit Setting and Config screens in Figure 4-13-56 Figure 4-13-57 appear. Figure 4-13-56: ARP Rate Limit Setting Page Screenshot The page includes the following fields: Object Description •...

  • Page 302: Ip Source Guard

    User’s Manual of IGS-4215 PoE Series  4.13.8 IP Source Guard IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host.

  • Page 303: Port Settings

    User’s Manual of IGS-4215 PoE Series  4.13.8.1 Port Settings IP Source Guard is a secure feature used to restrict IP traffic on DHCP snooping untrusted ports by filtering traffic based on the DHCP Snooping Table or manually configured IP Source Bindings. It helps prevent IP spoofing attacks when a host tries to spoof and use the IP address of another host.
  • Page 304 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-59: IP Source Guard Port Information Page Screenshot The page includes the following fields: Object Description • Port The switch port number of the logical port. • Status Displays the current status.

  • Page 305: Binding Table

    User’s Manual of IGS-4215 PoE Series 4.13.8.2 Binding Table The IP Source Guard Static Binding Entry and Table Status screens in Figure 4-13-60 Figure 4-13-61 appear. Figure 4-13-60: IP Source Guard Static Binding Entry Page Screenshot The page includes the following fields: Object Description •...

  • Page 306: Dos

    User’s Manual of IGS-4215 PoE Series 4.13.9 DoS The DoS is short for Denial of Service, which is a simple but effective destructive attack on the internet. The server under DoS attack will drop normal user data packet due to non-stop processing the attacker’s data packet, leading to the denial of the service and worse can lead to leak of sensitive data of the server.
  • Page 307 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • DMAC = SMAC Enable or disable DoS check mode by DMAC = SMAC. • Land Enable or disable DoS check mode by land. • UDP Blat Enable or disable DoS check mode by UDP blat.
  • Page 308 User’s Manual of IGS-4215 PoE Series Buttons : Click to apply changes. Figure 4-13-63: DoS Information Page Screenshot The page includes the following fields: Object Description • DMAC = SMAC Displays the current DMAC = SMAC status. • Land Attach Displays the current land attach status.

  • Page 309: Dos Port Setting

    User’s Manual of IGS-4215 PoE Series 4.13.9.2 DoS Port Setting The DoS Port Setting and Status screens in Figure 4-13-64 Figure 4-13-65 appear. Figure 4-13-64: DoS Port Setting Page Screenshot The page includes the following fields: Object Description • Port Select Select port from this drop-down list.

  • Page 310: Acl

    User’s Manual of IGS-4215 PoE Series  4.13.10 ACL ACL is an acronym for Access Control List. It is the list table of ACEs, containing access control entries that specify individual users or groups permitted or denied to specific traffic objects, such as a process or a program. Each accessible traffic object contains an identifier to its ACL.

  • Page 311: Mac-Based Acl

    User’s Manual of IGS-4215 PoE Series  4.13.10.1 MAC-based ACL This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. MAC-based ACL screens in Figure 4-13-66 Figure 4-13-67appear.

  • Page 312: Mac-Based Ace

    User’s Manual of IGS-4215 PoE Series  4.13.10.2 MAC-based ACE An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you selected. The MAC-based ACE screens in Figure 4-13-68 Figure 4-13-69 appear. Figure 4-13-68: MAC-based ACE Page Screenshot The page includes the following fields: Object Description...
  • Page 313 User’s Manual of IGS-4215 PoE Series • DA MAC Value When "User Defined" is selected for the DA MAC filter, you can enter a specific destination MAC address. The legal format is "xx-xx-xx-xx-xx-xx". A frame that hits this ACE matches this DA MAC value. •...
  • Page 314 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • ACL Name Displays the current ACL name. • Sequence Displays the current sequence. • Action Displays the current action. • Destination MAC Address Displays the current destination MAC address. •...

  • Page 315: Ipv4-Based Acl

    User’s Manual of IGS-4215 PoE Series  4.13.10.3 IPv4-based ACL This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. IPv4-based ACL screens in Figure 4-13-70 Figure 4-13-71appear.

  • Page 316: Ipv4-Based Ace

    User’s Manual of IGS-4215 PoE Series  4.13.10.4 IPv4-based ACE An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you selected. The IPv4-based ACE screens in Figure 4-13-72 Figure 4-13-73 appear. Figure 4-13-72: IP-based ACE Page Screenshot...
  • Page 317 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • ACL Name Select ACL name from this drop-down list. • Sequence Set the ACL sequence. • Action Indicates the forwarding action of the ACE. Permit: Frames matching the ACE may be forwarded and learned. ...
  • Page 318 User’s Manual of IGS-4215 PoE Series • Destination Port Specify the destination port for this ACE.  Any: No specifc destination port is specified (destination port status is "don't-care"). Single: If you want to filter a specific destination port with this ACE, you can ...
  • Page 319 User’s Manual of IGS-4215 PoE Series • Specify the TCP "No more data from sender" (FIN) value for this ACE.  Set: TCP frames where the FIN field is set must be able to match this entry. Unset: TCP frames where the FIN field is set must not be able to ...
  • Page 320 User’s Manual of IGS-4215 PoE Series Buttons : Click to add ACE list. Figure 4-13-73: IPv4-based ACE Table Page Screenshot The page includes the following fields: Object Description • ACL Name Displays the current ACL name. • Sequence Displays the current sequence. •...

  • Page 321: Ipv6-Based Acl

    User’s Manual of IGS-4215 PoE Series 4.13.10.5 IPv6-based ACL This page shows the ACL status by different ACL users. Each row describes the ACE that is defined. It is a conflict if a specific ACE is not applied to the hardware due to hardware limitations. IPv6-based ACL screens in Figure 4-13-74 Figure 4-13-75 appear.

  • Page 322: Ipv6-Based Ace

    User’s Manual of IGS-4215 PoE Series  4.13.10.6 IPv6-based ACE An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you selected. The IPv6-based ACE screens in Figure 4-13-76 Figure 4-13-77 appear. Figure 4-13-76: IP-based ACE Page Screenshot...
  • Page 323 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • ACL Name Select ACL name from this drop-down list. • Sequence Set the ACL sequence. • Action Indicates the forwarding action of the ACE. Permit: Frames matching the ACE may be forwarded and learned. ...
  • Page 324 User’s Manual of IGS-4215 PoE Series • Destination Port Specify the destination port for this ACE.  Any: No specifc destination port is specified (destination port status is "don't-care"). Single: If you want to filter a specific destination port with this ACE, you can ...
  • Page 325 User’s Manual of IGS-4215 PoE Series Unset: TCP frames where the FIN field is set must not be able to  match this entry. Don’t Care: Any value is allowed ("don't-care").  • Type of Service Specify the type pf service for this ACE. Any: No specifc type of service is specified (destination port status is ...
  • Page 326 User’s Manual of IGS-4215 PoE Series Buttons : Click to add ACE list Figure 4-13-77: IPv6-based ACE Table Page Screenshot The page includes the following fields: Object Description • ACL Name Displays the current ACL name. • Sequence Displays the current sequence. •...

  • Page 327: Acl Binding

    User’s Manual of IGS-4215 PoE Series  4.13.10.7 ACL Binding This page allows you to bind the Policy content to the appropriate ACLs. The ACL Policy screens in Figure 4-13-78 Figure 4-13-79 appear. Figure 4-13-78: ACL Binding Page Screenshot The page includes the following fields: Object Description •...

  • Page 328: Ring

    User’s Manual of IGS-4215 PoE Series 4.14 Ring Use the Maintenance menu items to display and configure basic configurations of The Wall-mount Managed Switch. Under maintenance, the following topics are provided to back up, upgrade, save and restore the configuration. This section has the following items: ■...

  • Page 329: Ring Wizard

    User’s Manual of IGS-4215 PoE Series 4.14.1 Ring Wizard The Ring Wizard instances are configured here; screen in Figure 4-14-1 appears. Figure 4-14-1: Ring Wizard page screenshot The page includes the following fields: Object Description • All Switch Numbers Set all the switch numbers for the ring group. The default number is 3 and maximum number is 30.

  • Page 330: Erps

    User’s Manual of IGS-4215 PoE Series 4.14.2 ERPS This page allows the user to inspect and configure the current ERPS Instance; screen in Figure 4-14-2 Figure 4-14-3 appears. Figure 4-14-2: Ethernet Ring Protection Switching page screenshot The page includes the following fields: Object Description •...
  • Page 331 User’s Manual of IGS-4215 PoE Series Buttons : Click to add a new Protection group entry. : Click to refresh the page immediately. : Click to save changes. Click to undo any changes made locally and revert to previously saved values. Figure 4-14-2: Ethernet Ring Protocol Switch Configuration page screenshot PRL Configuration: Object...
  • Page 332 User’s Manual of IGS-4215 PoE Series ERPS state: Object Description • Protection State ERPS state according to State Transition Tables in G.8032. • Port 0 OK: State of East port is ok SF: State of East port is Signal Fail •...

  • Page 333: Power Over Ethernet

    User’s Manual of IGS-4215 PoE Series  4.15 Power over Ethernet 4.15.1 PoE Switch Introduction Providing IEEE 802.3at PoE+ or IEEE 802.3bt PoE++ in-line power interfaces, the IGS-4215 PoE Switch Series can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, these cameras/APs can be easily installed around the corners of the company for surveillance demands or a wireless roaming environment in the office can be built.

  • Page 334: Power Over Ethernet Powered Device

    User’s Manual of IGS-4215 PoE Series  4.15.2 Power over Ethernet Powered Device In a power over Ethernet system, operating power is applied from a power source (PSU or -power supply unit) over the LAN infrastructure to powered devices (PDs), which are connected to ports. Voice over IP phones Enterprises can install PoE VoIP phones, ATA sand other Ethernet/non-Ethernet end-devices in the center where UPS is installed for...
  • Page 335 User’s Manual of IGS-4215 PoE Series PD Classifications A PD may be classified by the PSE based on the classification information provided by the PD. The intent of PD classification is to provide information about the maximum power required by the PD during operation. However, to improve power management at the PSE, the PD provides a signature about Class level.

  • Page 336: Power Over Ethernet Configuration

    User’s Manual of IGS-4215 PoE Series  4.15.3 Power over Ethernet Configuration In a power over Ethernet system, operating power is applied from a power source (PSU-power supply unit) over the LAN infrastructure to powered devices (PDs), which are connected to ports. Under some conditions, the total output power required by PDs can exceed the maximum available power provided by the PSU.
  • Page 337 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • System PoE Admin Allows user to enable or disable PoE function. It will cause all of PoE ports to Mode supply or not to supply power. •...
  • Page 338 User’s Manual of IGS-4215 PoE Series This section allows the user to inspect and configure the current PoE port settings as Figure 4-15-3-3 shows. IGS-4215-4P4T/ IGS-4215-4P4T2S / IGS-4215-8P2T2S-- 802.3at PoE+ Switch – PoE Port Configuration  Figure 4-15-3-3: Power over Ethernet Configuration Screenshot The page includes the following fields: Object Description...
  • Page 339 User’s Manual of IGS-4215 PoE Series • PD Type It allows user to enable legacy mode or force power function in a specified PoE Inline mode. Standard: (default)  Fully conforms to the IEEE 802.3 at/bt standard Legacy:  The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at standard.
  • Page 340 User’s Manual of IGS-4215 PoE Series IGS-4215-4UP4T2S IGS-4215-8UP2T2S 802.3bt PoE++ Switch – PoE Port Configuration  802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power, the IGS-4215 PoE++ Switch series provides five different PoE power output modes for selection.
  • Page 341 User’s Manual of IGS-4215 PoE Series DC supply and pins 7-8 (pair #4 in both T568A and T568B) provide the return. Maximum power is 36.0 watts. Endspan: Set inline mode to IEEE 802.3at PoE+ End-span PSE.  Pins 1-2 (pair #2 in both T568A and T568B) form one side of the DC supply and pins 3-6 (pair #3 in both T568A and T568B) provide the return.
  • Page 342 User’s Manual of IGS-4215 PoE Series • Priority The Priority represents PoE ports priority. There are three levels of power priority named Low, High and Critical. The priority is used in case the total power consumption is over the total power budget.

  • Page 343: Poe Schedule

    User’s Manual of IGS-4215 PoE Series 4.15.4 PoE Schedule This page allows the user to define PoE schedule and scheduled power recycling. PoE Schedule Besides being used as an IP Surveillance, the Managed PoE switch is certainly applicable to construct any PoE network including VoIP and Wireless LAN.
  • Page 344 User’s Manual of IGS-4215 PoE Series The screen in Figure 4-15-4-1 appears. Figure 4-15-4-1: PoE Schedule Screenshot Please press the Add New Rule button to start setting PoE Schedule function. You have to set PoE schedule to profile and then go back to PoE Port Configuration, and select “Schedule”...
  • Page 345 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Profile Set the schedule profile mode. Possible profiles are: Profile1 Profile2 Profile3 Profile4 • Week Day Allows user to set week day for defining PoE function by enabling it on the day. •...

  • Page 346: Poe Alive Check Configuration

    User’s Manual of IGS-4215 PoE Series  4.15.5 PoE Alive Check Configuration The IGS-4215 PoE Switch Series can be configured to monitor connected PD’s status in real-time via ping action. Once the PD stops working and without response, the PoE Switch is going to restart PoE port power, and bring the PD back to work. It will greatly enhance the reliability and reduces administrator management burden.
  • Page 347 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Mode Allows user to enable or disable per port PD Alive Check function. By default, all ports are disabled. • Ping PD IP Address This column allows user to set PoE device IP address for system making ping to the PoE device.

  • Page 348: Maintenance

    User’s Manual of IGS-4215 PoE Series 4.16 Maintenance Use the Maintenance menu items to display and configure basic configurations of the Industrial Managed Switch. Under maintenance, the following topics are provided to back up, upgrade, save and restore the configuration. This section has the following items: ■...

  • Page 349: Backup Manager

    User’s Manual of IGS-4215 PoE Series 4.16.3 Backup Manager This function allows backup of the current image or configuration of the Industrial Managed Switch to the local management station. The Backup Manager screen in Figure 4-16-3 appears. Figure 4-16-3: Backup Manager Page Screenshot The page includes the following fields: Object Description...

  • Page 350: Upgrade Manager

    User’s Manual of IGS-4215 PoE Series  4.16.4 Upgrade Manager This function allows reloading of the current image or configuration of the Industrial Managed Switch to the local management station. The Upgrade Manager screen in Figure 4-16-4 appears. Figure 4-16-4: Upgrade Manager Page Screenshot The page includes the following fields: Object Description...
  • Page 351 User’s Manual of IGS-4215 PoE Series Figure 4-16-5: Dual Image Configuration Page Screenshot The page includes the following fields: Object Description • Active Image Select the active or backup image. Buttons : Click to apply active image. Figure 4-16-6: Dual Image Information Page Screenshot The page includes the following fields: Object Description...

  • Page 352: Diagnostics

    User’s Manual of IGS-4215 PoE Series  4.17 Diagnostics This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are designed for network manager to help them quickly diagnose problems between point to point and better service customers. Use the Diagnostics menu items to display and configure basic administrative details of the Industrial Managed Switch.
  • Page 353 User’s Manual of IGS-4215 PoE Series The page includes the following fields: Object Description • Port Select port from this drop-down list Buttons : Click to run the diagnostics Figure 4-17-2: Test Results Page Screenshot The page includes the following fields: Object Description •...

  • Page 354: Ping

    User’s Manual of IGS-4215 PoE Series  4.17.2 Ping The ping and IPv6 ping allow you to issue ICMP PING packets to troubleshoot IP connectivity issues. The Industrial Managed Switch transmits ICMP packets, and the sequence number and roundtrip time are displayed upon reception of a reply. 4.17.2.1 Ping Test This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.

  • Page 355: Ipv6 Ping Test

    User’s Manual of IGS-4215 PoE Series 4.17.3 IPv6 Ping Test This page allows you to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues. After you press “Apply”, 5 ICMPv6 packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply.

  • Page 356: Switch Operation

    User’s Manual of IGS-4215 PoE Series 5. SWITCH OPERATION 5.1 Address Table The Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some nodes on the network, including MAC address, port no, etc. This information comes from the learning process of Ethernet Switch.

  • Page 357: Troubleshooting

    User’s Manual of IGS-4215 PoE Series 6. TROUBLESHOOTING This chapter contains information to help you solve issues. If the Industrial Managed Switch is not functioning properly, make sure the Industrial Managed Switch was set up according to instructions in this manual. ■...

  • Page 358: Appendix A Switch's Rj45 Pin Assignments

    User’s Manual of IGS-4215 PoE Series APPENDIX A Switch's RJ45 Pin Assignments A.1 1000Mbps, 1000BASE-T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
  • Page 359 User’s Manual of IGS-4215 PoE Series The standard cable, RJ45 pin assignment The standard RJ45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight-through Cable SIDE 1 SIDE 2...
