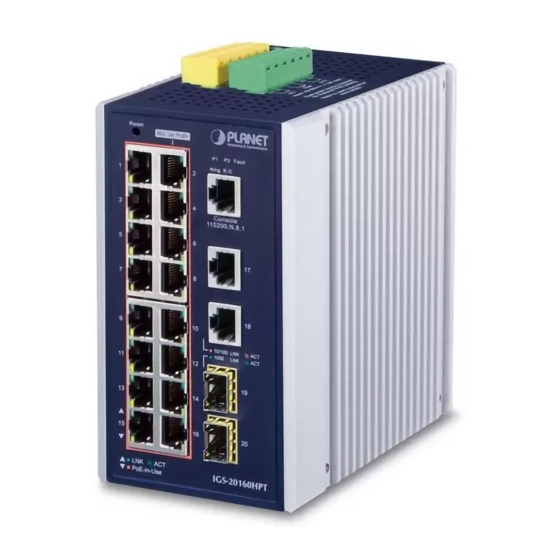

- Page 1 Industrial L3 16-Port 10/100/1000T 802.3at PoE+ 2-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch IGS-20160HPT Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Requirements ..................... 4 3. Wiring the Power Inputs ................5 3.1 Grounding the Device ................6 4. Terminal Setup ................... 7 4.1 Logging on to the Console..............8 4.2 Configuring IP Address ................. 8 5. -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial L3 16-Port 10/100/1000T 802.3at PoE+ 2-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch. The description of this model is as follows: Model 10/100/1000T RJ45 Ports 802.3at PoE+ Ports 1G/2.5G SFP Ports IGS-20160HPT “Industrial Managed PoE+ Switch” mentioned in this Quick Installation Guide refers to the above models. -
Page 4: Requirements
2. Requirements z Workstations running Windows XP/2003/2008/2012/Vista/7/8/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Serial Port Connection (Terminal) The above Workstations come with COM Port (DB9) or USB-to-RS232 converter. The above Workstations have been installed with terminal emulator, such as Hyper Terminal included in Windows XP/2003, putty or tera term. -
Page 5: Wiring The Power Inputs
PWR1 PWR2 Input: 48-56V , 7.5A max. Dual power input is required for maximum PoE loading. Refer to user’s manual for more details. Figure 3-1: IGS-20160HPT Upper Panel 2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Power 2 (DC1) (DC2) Model Positive (+) Pin Negative (-) Pin... -
Page 6: Grounding The Device
12 to 24 AWG. 2. P lease check the wire AWG Ampere specification before Note connecting PLANET Industrial Managed Switch. 3.1 Grounding the Device Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. -
Page 7: Terminal Setup
4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type serial (console) port of the Industrial Managed PoE+ Switch. The console port of the Industrial Managed PoE+ Switch is DCE already, so that you can connect the console port directly through PC without the need of null modem. -
Page 8: Logging On To The Console
4.1 Logging on to the Console Once the terminal has been connected to the device, power on the Industrial Managed PoE+ Switch and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password as shown in Figure 4-3. Please enter the factory default user name “admin”... - Page 9 To check the current IP address or modify a new IP address for the Industrial Managed PoE+ Switch, please use the procedure as follows: Display of the current IP Address 1. At the “#” prompt, enter “show ip interface brief”. 2. The screen displays the current IP address shown in Figure 4-4. Figure 4-4: IP Information Screen Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 4-5.
- Page 10 Storing Current Switch Configuration 5. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-6: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed PoE+ Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed PoE+ Switch through the new IP address.
-
Page 11: Starting Web Management
5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed PoE+ Switch. Note the Industrial Managed PoE+ Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. - Page 12 Default IP Address: 192.168.0.100 Default Username: admin Default Password: admin Figure 5-2: Web Login Screen 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Web Main Screen of Industrial Managed PoE+ Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Industrial Managed PoE+ Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “Routing”, “QoS”, “Security”, “PoE”, “Ring”, “ONVIF”...
- Page 13 Figure 5-5: Switch Sub-menu Figure 5-6: Switch Sub-menu Now, you can use the Web management interface to continue the Switch management. Please refer to the user manual for more. If you are not familiar with Switch functions or the related param- eter, press “Help icon”...
-
Page 14: Saving Configuration
5.2 Saving Configuration To save all applied changes and set the current configuration as a startup configuration on the Web user interface, the startup-configuration file will be loaded automatically across a system reboot. 1. Click the Save icon on the top Switch Menu bar. 2. -
Page 15: Recovering Back To Default Configuration
192.168.0.xx and default password. Be noted that all the previous setups will be disappeared after the factory default reset is made. Reset Reset Button 802.3at PoE+ Fault Ring R.O. Console 115200,N,8,1 10/100 1G/2.5G LNK IGS-20160HPT PoE-in-Use Figure 6-1: IGS-20160HPT Reset Button... -
Page 16: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Switch support team mail address: support@planet.com.tw IGS-20160HPT User’s Manual: https://www.planet.com.tw/en/support/downloads?method=keyword&keyword=IGS &view=3&page=1#list (Please select your switch model name from the Product Model drop-down menu.) Copyright © PLANET Technology Corp. 2020. Contents are subject to revision without prior notice.
