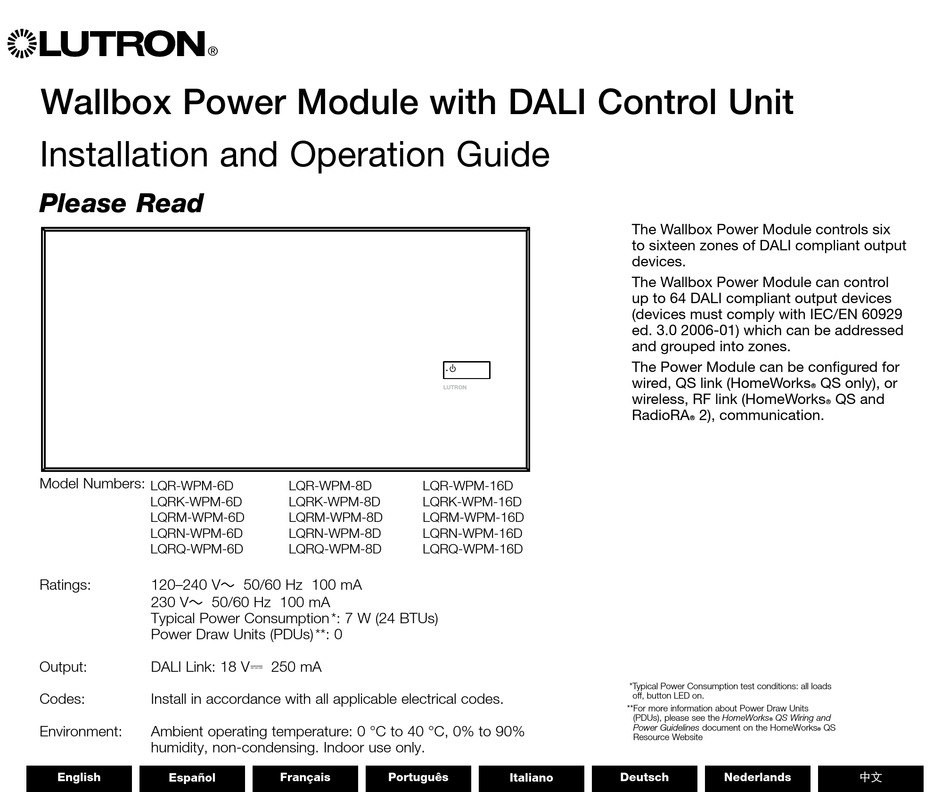

Wallbox Power Module with DALI Control Unit
Installation and Operation Guide
Please Read
Model Numbers:
LQR-WPM-6D
LQRK-WPM-6D
LQRM-WPM-6D
LQRN-WPM-6D
LQRQ-WPM-6D
Ratings:
120–240 V~ 50/60 Hz 100 mA
230 V~ 50/60 Hz 100 mA
Typical Power Consumption *: 7 W (24 BTUs)
Power Draw Units (PDUs) **: 0
Output:
DALI Link: 18 V
Codes:
Install in accordance with all applicable electrical codes.
Environment:
Ambient operating temperature: 0 °C to 40 °C, 0% to 90%
humidity, non-condensing. Indoor use only.
English
Español
LUTRON
LQR-WPM-8D
LQR-WPM-16D
LQRK-WPM-8D
LQRK-WPM-16D
LQRM-WPM-8D
LQRM-WPM-16D
LQRN-WPM-8D
LQRN-WPM-16D
LQRQ-WPM-8D
LQRQ-WPM-16D
250 mA
Français
Português
The Wallbox Power Module controls six
to sixteen zones of DALI compliant output
devices.
The Wallbox Power Module can control
up to 64 DALI compliant output devices
(devices must comply with IEC/EN 60929
ed. 3.0 2006-01) which can be addressed
and grouped into zones.
The Power Module can be configured for
wired, QS link (HomeWorksR QS only), or
wireless, RF link (HomeWorksR QS and
RadioRAR 2), communication.
* Typical Power Consumption test conditions: all loads
off, button LED on.
** For more information about Power Draw Units
(PDUs), please see the HomeWorks
Power Guidelines document on the HomeWorks
Resource Website
Deutsch
Italiano
QS Wiring and
®
QS
®
Nederlands
中文
