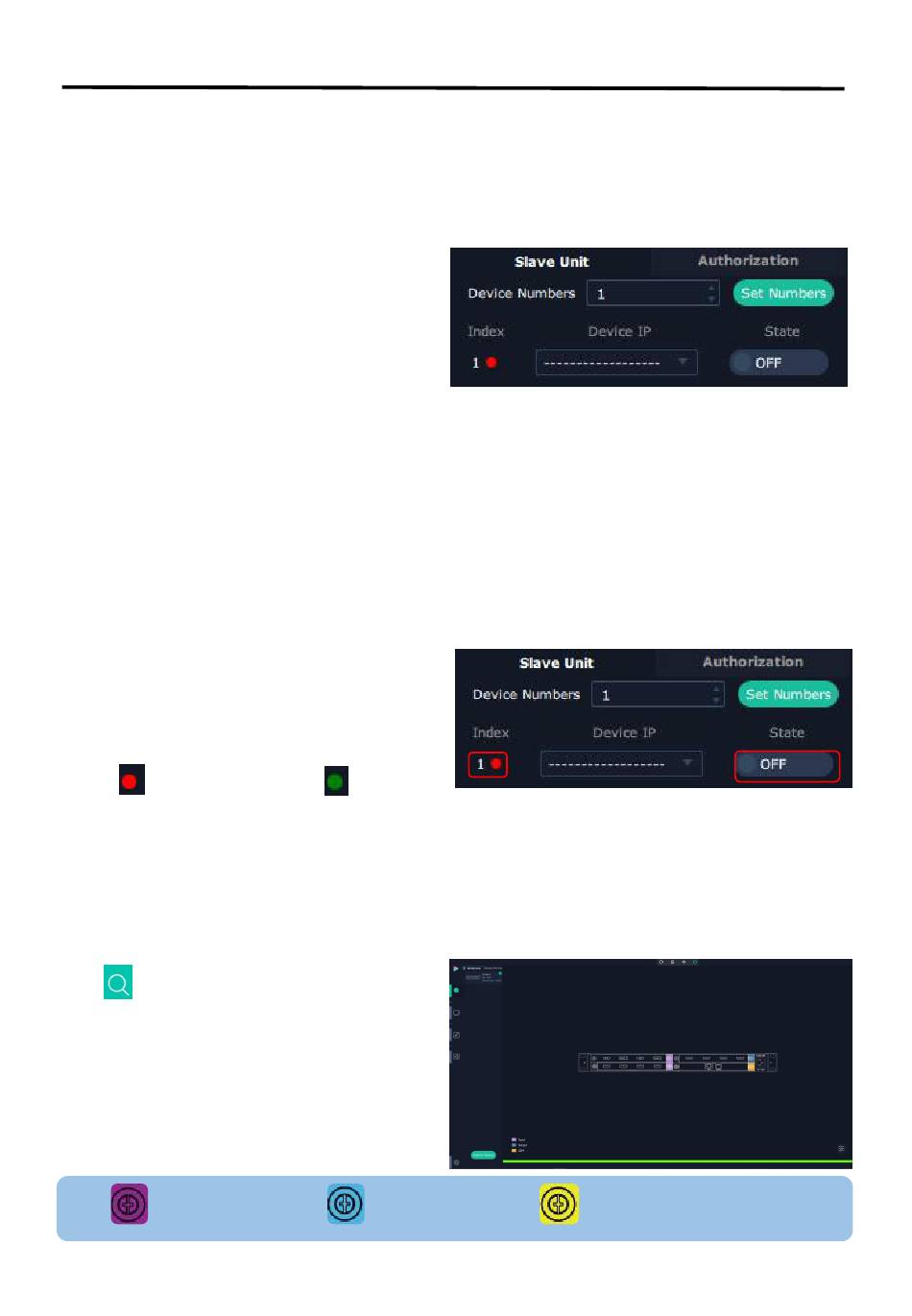

Slave Unit：
Slave Unit is to control multiple devices simultaneously,
which are connected to same network. ("In the same
network" means that the the third section in the IP
address digits are the same )
XPOSE do operation on one device, same operation
synchronized to other devices. For example, there is
another device linked to the same network, one with IP:
192.168.0.112, SN: 0027; the other with IP:
192.168.0.129, SN: 3344.
If users want the same operation on 3344 to be backed
up to 0027, please do as follows.
1. Set device numbers；
2. Select the IP of the device in the drop-down menu
for Device IP;
3. Click ON, the two device are connected when the
red pot turns to be a green one
4. Click OFF to disconnect, it could not control two
device at the same time.
3.5.3 Output | Input | Overview
Click to check rear panel interface as
shown in the right figure.
Note： purple tip indicates input,
Q16pro Gen2 1U
;
blue tip indicates output,
User Manual
yellow tip indicates communication.
