Summary of Contents for RGBlink Q4L

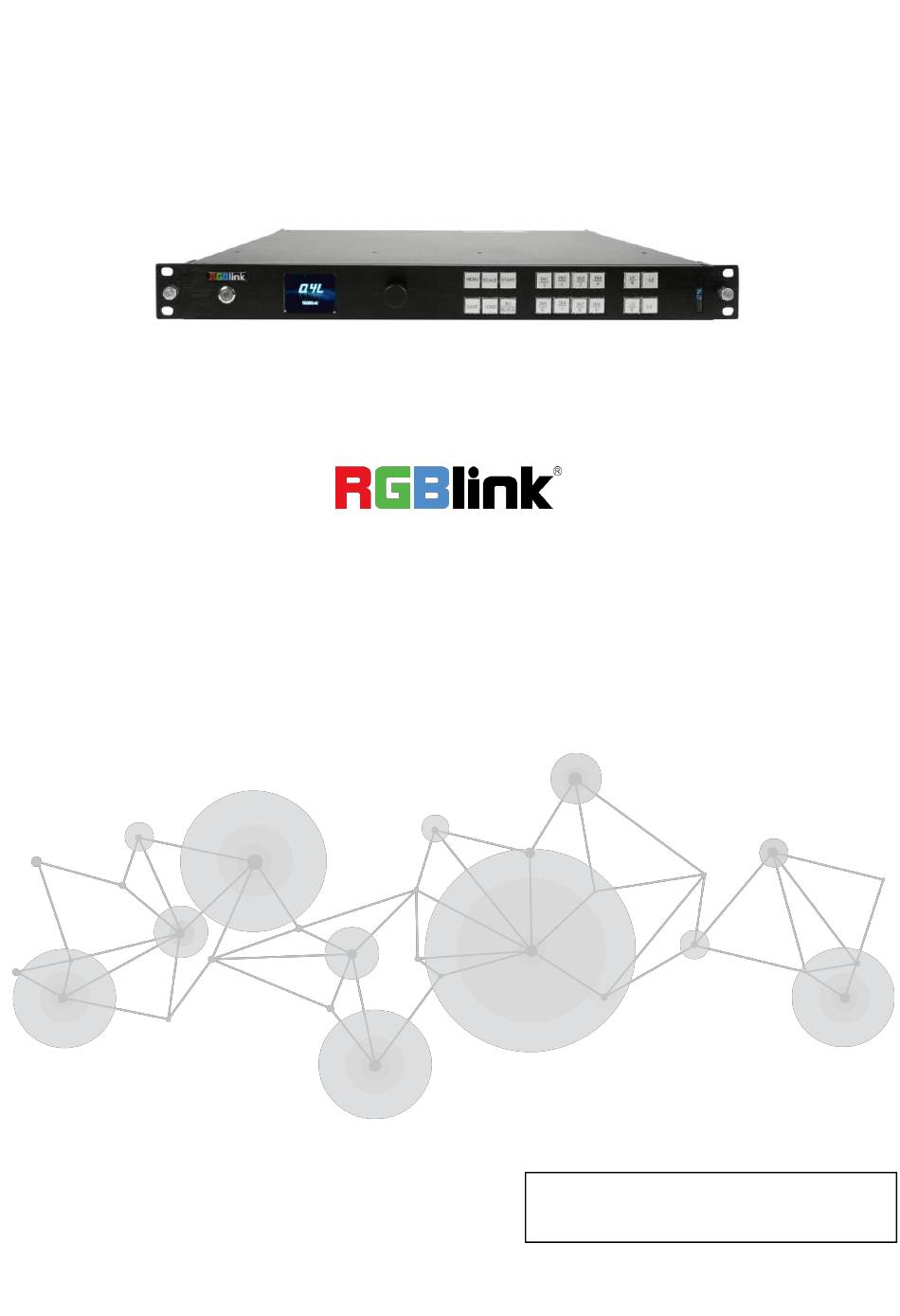

- Page 1 User Manual Article No: RGB-RD-UM-Q4L E002 Revision No: V1.2...
-
Page 2: Table Of Contents
4.2 Optional Module ............................. 26 4.2.1 Input module ..........................26 4.2.3 Output Module ..........................26 Chapter 5 Support ..............................27 5.1 Contact US .............................. 27 Chapter 6 Appendix .............................. 28 6.1 Specification ............................28 6.2 Terms & Definitions ..........................32 6.3 Revision History ............................38 Q4L/Q4L-4K User Manual... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. The AC Socket-outlet should be installed near the equipment and be easily accessible. Q4L/Q4L-4K User Manual... - Page 5 Site Preparation The environment in which you install your device should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. Q4L/Q4L-4K User Manual...
-
Page 6: Chapter 1 Your Product
Chapter 1 Your Product In the Box AC Power Cord HDMI-DVI Cable CAT5 Cable DB9-RJ11 Cable Antistatic Bag Note: AC Power Cable supplied as standard according to destination market. Q4L/Q4L-4K User Manual... -
Page 7: Product Overview
SDI, USB, HDBaseT modules,supporting DVI (sync) output module and up to 8 layers. The outstanding feature of Q4L(Q4L-4K) is the built-in splicing and presentation mode patterns which help users to make quick splitting and presentation. Besides control on board, it also support for control via RGBlink XPOSE 2.0. -
Page 8: Rear Panel
2× DVI-I,resolution up to 1920*1080@60,support EDID Output Connectors 4 DVI outputs as standard Communication Optional slots Power LAN RJ45 / RS232 RJ11 Use for system upgrade and remote control via APP Power switch and connector AC 85-264V 50/60HZIEC-3 Q4L/Q4L-4K User Manual... - Page 9 Q4L-4K Input Connectors Standard 4×HDMI(IN/Loop),resolutions up to 1920*1080@60,support EDID 2× DVI-I,resolution up to 1920*1080@60,support EDID 1×4KInput Module(1×HDMI2.0,1×DP1.2,1×DUAL DVI,1×HDMI1.4) When 4K signal input,HDMI 2.0 and DP 1.2 support 4K2K@60,DUAL DVI and HDMI 1.4 support 4K2K@30 Output Connectors 4 DVI outputs as standard...
-
Page 10: Front Panel
1.2.2 Front Panel Q4L-4K Button Instruction MENU and EXIT SCALE START and LAYOUT SAVE SCENE LOAD SCENE Background Layer selection and BALCK IN1-IN8 Input selection and 1-4,6-9 Layer 1-4 and 5, 0 digital button digital buttons Displays current status of the product,... -
Page 11: Dimension
1.2.3 Dimension Following is the dimension of Q4L/Q4L-4K for your reference: Dimension: 484mm×466mm×45mm Q4L/Q4L-4K User Manual... -
Page 12: Chapter 2 Install Your Product
2.3 Turn on Your Product Turn the power switch on the rear to ON position. The screen shows as below, meanwhile the device enter initializing state after that, the device will show its input and output and system state. Q4L/Q4L-4K User Manual... -
Page 13: Chapter 3 Use Your Product
Chapter 3 Use Your Product The operation instruction take Q4L-4K as an example 3.1 Use the Menu Button Push【MENU】button to enter main menu. Turn the knob to select corresponding menu item. The symbol >indicate that the item is selected. Push the knob to confirm the operation. -
Page 14: Use The Menu
>> Output Resolution Output Resolution: Choose Standard or Custom resolution Standard >> Custom >> Standard: rotate the knob to select standard resolution. Output Resolution 1920×1080@60 Changing resolution of a different size will clean up the saved scene!!! Q4L/Q4L-4K User Manual... - Page 15 Image Select V Pos Image Layout >> Crop L1/L2/L3/L4 Save Setting Width 1920 Reset Parameters Height 1080 H Pos Image Layout：Select the image layout for presentation mode. There are 15 layout patterns built-in as follows： Q4L/Q4L-4K User Manual...
-
Page 16: Split
The chosen mode will be valid on all ports. 4K Input Module Mode Input Source 1 Input Source 2 Save Setting Input Source 1：Select one from DUAL-DVI,HDMI1.4,HDMI2.0,DP1.2 in 4K×2K Input Source 2：Select two from DUAL-DVI,HDMI1.4,HDMI2.0,DP1.2 in 4K×1K Save Setting to confirm. Q4L/Q4L-4K User Manual... - Page 17 Split Layout There are 6 background split mode available and each basic split mode comes with useful multi-picture layout. Split Mode Background Multi-Picture Layout Cross H 1/2 V 1/2 H 1/3 H 1/4 V 1/4 Q4L/Q4L-4K User Manual...
- Page 18 Set size and position for PIP. Save Setting Save Setting to confirm above. Background Source Slelect the source for background. Background Mode Under split mode V 1/2, there is subclassification V 2 In/2 Out based on numbers of source. Q4L/Q4L-4K User Manual...
- Page 19 Set the height of the first output display. Q4L shows the parameters required based on the Split mode, for example, if the split mode is V 1/3. the Width 1 (width of first output display )and Width 2 (width of second output display) shall be set; if the split mode is Cross, Height 1 and Width 1 will be shown to set.
-
Page 20: Advanced
>> Image Quality: Input Signal 1-4: Adjust brightness, contrast and color saturation, sharpness and temperature of each input source port. DVI Mode Color Red Brightness Color Green Contrast Color Blue Color Saturation Save Setting Sharpness Reset Parameters Q4L/Q4L-4K User Manual... - Page 21 USB Control USB Module Status USB Port Play Time Play Types Play Document Play Order USB Module: Select inputs USB Port: PORT A,PORT B Play Types: Video or Image Output Adjustment Output Type >> Output Exchange >> Q4L/Q4L-4K User Manual...
- Page 22 Set fade in fade out time for scene switching Fade In Fade Out Time 1.0S Save To >> Load From >> Save To Save the scene to SCENE 1-10 Load From SCENE 5 Button on is ready to recall Button flashes means current scene Q4L/Q4L-4K User Manual...
-
Page 23: 语言/Language
Fan Speed: Adjust the speed via button. 3.3.4 Language To switch language here. English or Chinese available. 3.3.5 Factory Reset If Factory Reset is selected, the interface will show warning, confirm by pushing knob, cancel by push any other key. Q4L/Q4L-4K User Manual... -
Page 24: Button
Select input source 1~8, when the source is selected, the button will flash. SAVE Short cut button to SAVE scene to SECEN 1-10 by pushing number buttons LOAD Short cut button to Load saved scene from SECEN 1-10 by pushing number buttons. Q4L/Q4L-4K User Manual... -
Page 25: Xpose 2.0
XPOSE 2.0 Operation Download XPOSE 2.0 software from RGBlink website. https://www.rgblink.com/xpose_software.aspx Please refer to user manual of XPOSE 2.0 for how to install and operate XPOSE 2.0 https://www.rgblink.com/resource_type.aspx?pro_id=67... -
Page 26: Chapter 4 Order Codes
Chapter 4 Order Codes 4.1 Product Code 712-0004-01-0 712-0004-02-0 Q4L-4K 4.2 Optional Module 4.2.1 Input module 190-0001-07-2 Single 3G SDI Input/Loop Module 190-0001-15-2 Single HDBaseT Input Module 190-0001-10-2 Single USB2.0 Input/Backup Module 790-0004-02-0 4K@60 Input Module 790-0004-01-0 Single HDMI (Sync) Input/Loop Module... -
Page 27: Chapter 5 Support
Chapter 5 Support 5.1 Contact US Q4L/Q4L-4K User Manual... -
Page 28: Chapter 6 Appendix
Numbers Connectors Connectors HDMI-A Supported HDMI 1.3 Standard Input SMPTE 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | Resolutions 1080p@50/59.94/60 VESA 800×600@60 | 1024×768@60 | 1280×720@50/59.94/60 | 1280×800@60 | 1280×960@60 | 1280×1024@60 | 1400×1050@60 | 1600×1200@60 | Q4L/Q4L-4K User Manual... - Page 29 USB 2.0 Media Types Video MPEG1| MPEG2 | MPEG4 | H264 | RM | RMVB| MOV | Formats MJPEG | VC1 | DIVX | FLV Image JPEG | BMP | PNG Formats Audio WMA | MP3 |M4A|AAC 1920×1080@23.98/24/25/29.97/30/50/59.94/60 Q4L/Q4L-4K User Manual...
- Page 30 Support 1024×768 only JPEG Baseline(“Stan Full Range dard”) Baseline Full Range Optimized 9600×6400 Monochrome Full Range 16-color Full Range 256-color Full Range 16 bit Full Range 24 bit Full Range 32 bit Full Range Non-interlace 9600×6400 Full Range Q4L/Q4L-4K User Manual...
- Page 31 1600×1200@60 | 1920×1080@60 Extras Communication LAN | RS232 1×RJ45|1×RJ11 Power Supply AC 85-264V ，50/60Hz Max Power 200W Working Environment 0°C -45°C Relativity Humidity 10% –85 % RH Weight 8.5kg Dimensions 484mm×466mm×45mm Product Warranty 3 years parts and labor warranty Q4L/Q4L-4K User Manual...
-
Page 32: Terms & Definitions
●HDMI 1.3: released on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and Q4L/Q4L-4K User Manual... - Page 33 ●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode fibers are used for most communication links longer than 1,000 meters (3,300 ft). ●SFP ： small form-factor pluggable , is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. Q4L/Q4L-4K User Manual...
- Page 34 USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type A Type B Mini A Mini B Micro-A Micro-B Type C USB 2.0 USB 3.0 USB 3.1&3.2 Q4L/Q4L-4K User Manual...
- Page 35 (UDP) Ethernet based networks. NDI is commonly found in broadcast applications. ●RTMP: Real-Time Messaging Protocol (RTMP) was initially a proprietary protocol developed by Macromedia (now Adobe) for streaming audio, video and data over the Internet, between a Flash player and a server. Q4L/Q4L-4K User Manual...
- Page 36 ●Contrast Ratio：The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several limitations. Well-controlled viewing conditions should yield a practical contrast ratio of 30:1 to 50:1. Q4L/Q4L-4K User Manual...
- Page 37 ●HDR: is a high dynamic range (HDR) technique used in imaging and photography to reproduce a greater dynamic range of luminosity than what is possible with standard digital imaging or photographic techniques. The aim is to present a similar range of luminance to that experienced through the human visual system. Q4L/Q4L-4K User Manual...
-
Page 38: Revision History
All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd.While all effo rts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
