BGA Assembly

Watch out that the pin 1 position and alignment of all pins. Avoid disassembling and
reassembling the hardware setup too frequently.
1. Solder the Solder part B on the Target A.
Use the Surface Mount Technology (SMT) to solder the Solder parts to the target instead of
the original microcontroller. iSYSTEM provides this soldering service on request.
2. (optional, recommended) Connect Extender C to the Solder part B.
The Extender protects from damaging the Solder part if the Emulation Adapter setup is frequently assembled and disassembled. Be
careful and gentle during this procedure because all parts of the setup are extremely sensitive, and pins can easily bend or even break
in the worst-case scenario.
More Extenders can be stacked to gain height between the Emulation Adapter and the Target, if surrounding components so high that
they prevent connecting the Emulation Adapter. Keep the number of Extenders C at minimum since every Extender degrades the signal
integrity of the electrical signals.
3. Connect the Emulation Adapter D to:
Solder part B or
·
Extender C
·

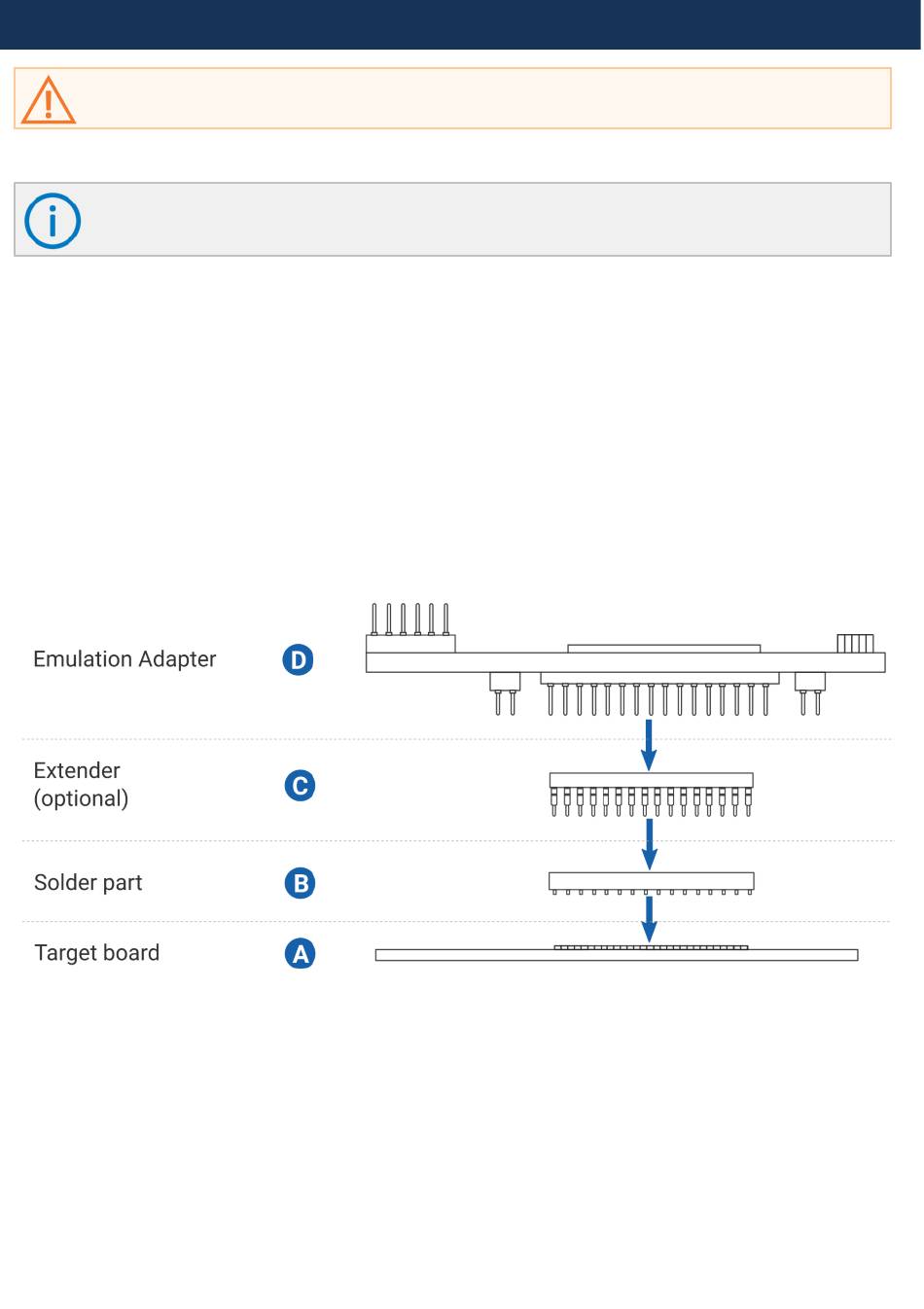

BGA Adaptation Setup
