Assembly
Watch out that the pin 1 position and alignment of all pins. Avoid disassembling and
reassembling the hardware setup too frequently.
Use the Surface Mount Technology (SMT) to solder the Solder parts to the target instead of
the original microcontroller. iSYSTEM provides this soldering service on request.
QFP Fixed

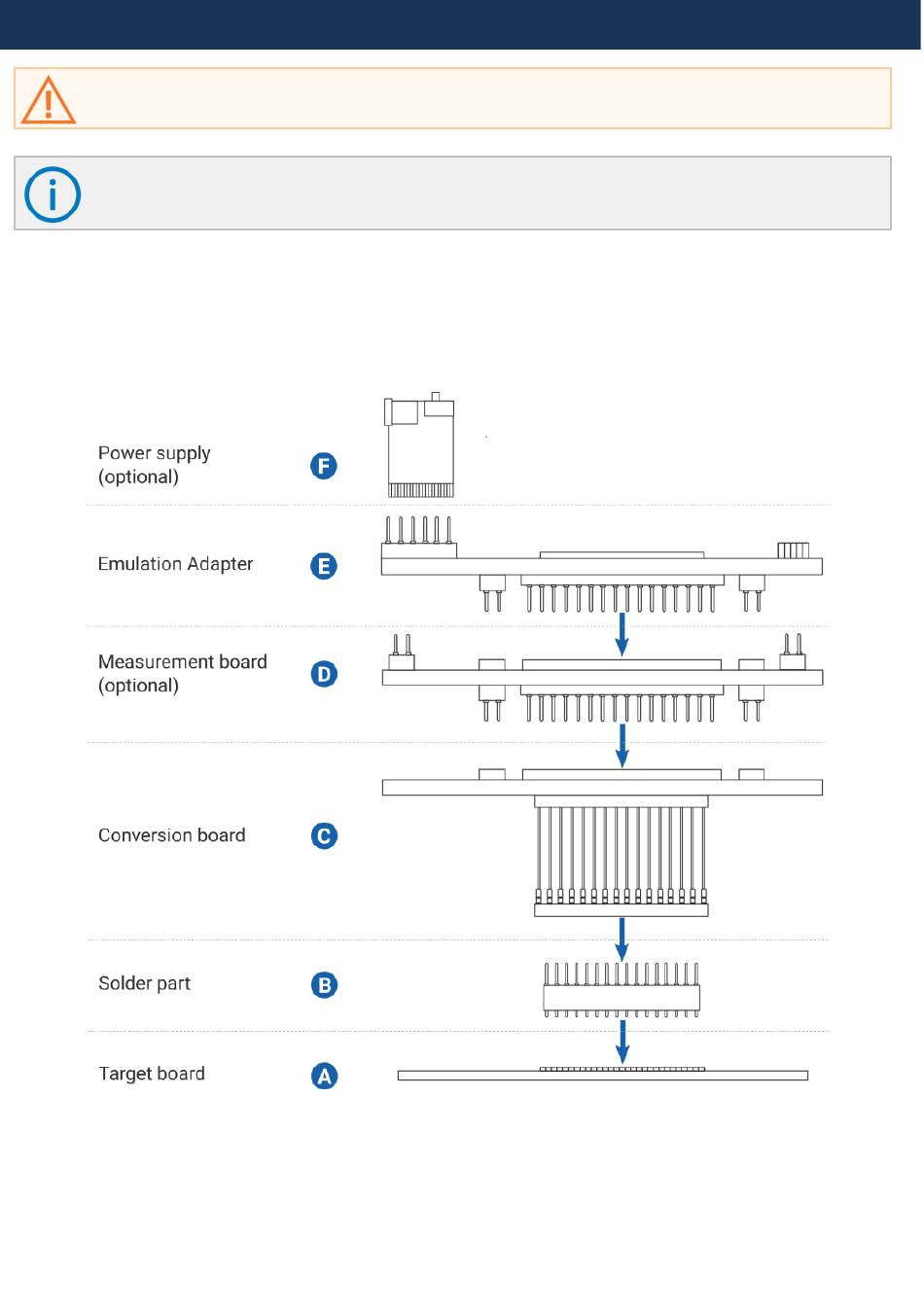

1. Solder the Solder part B on the Target A.
2. Assemble in order: Emulation Adapter E, optional Measurement board D, Conversion board C.
3. Connect the Conversion board to the Solder part B.
