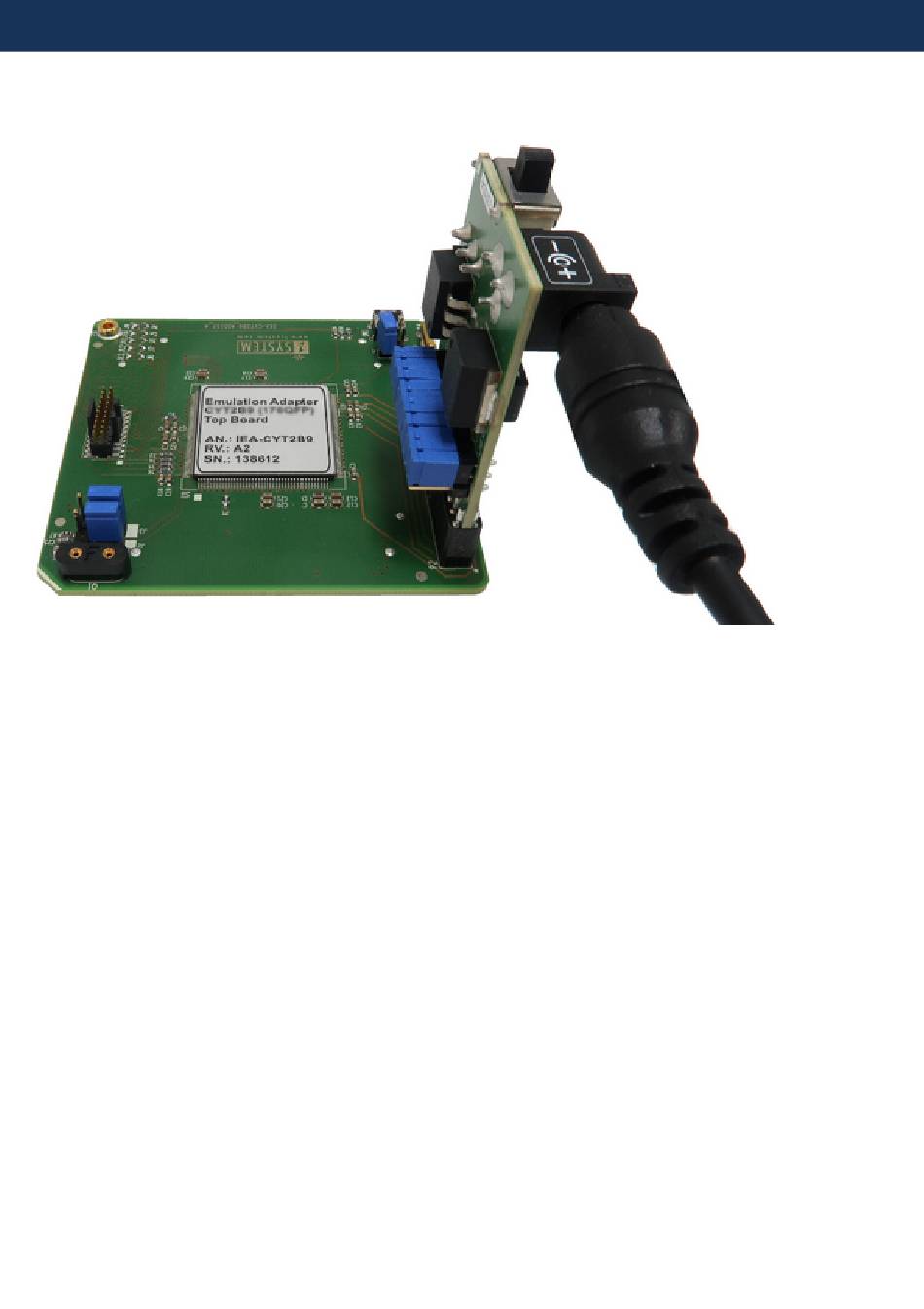

Standalone operation
Emulation Adapter is delivered with all components required for a Standalone operation.
Power supply
Use enclosed IEA-PS Emulation Adapter Power converter and adapter.
Clock source
If user target's crystal circuit microcontroller oscillator (if available) is not an adequate clock
source, insert appropriate crystal into the Q1 socket, replace the default 10pF C24 and C25 ca-
pacitors when necessary and place jumpers J2 and J3 in 2-3 position.
