MAX30001G Evaluation Kit
BioZ Channel Tab
The BioZ Channel tab
(Figure
in the ECG Channel tab, controls on this tab configure the filters and amplifiers of the device's BioZ channel.
A detailed description of all BioZ channel configuration settings can be found in the MAX30001G data sheet.

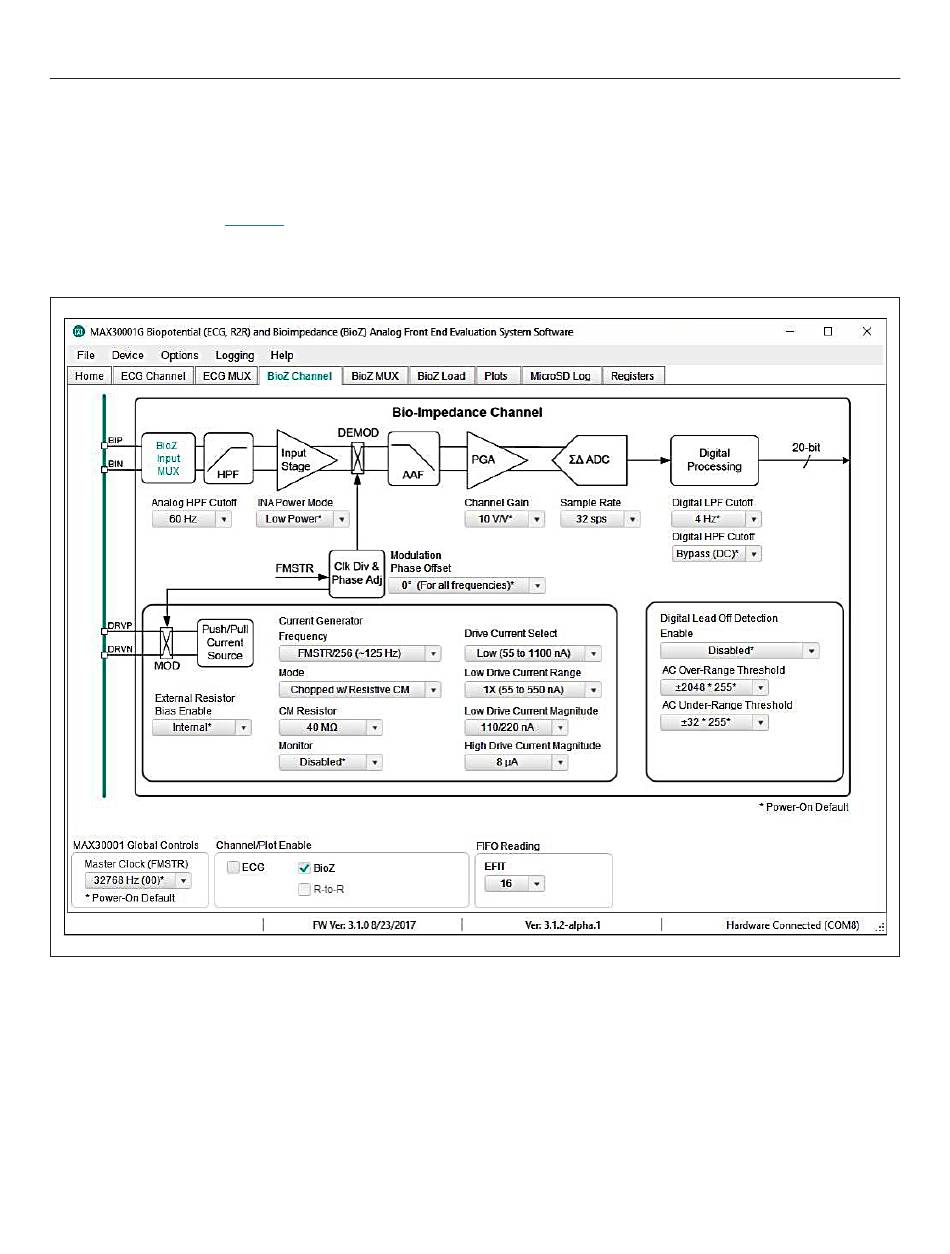

Figure 8. MAX30001G EV Kit BioZ Channel Tab.
www.analog.com
8) hosts the settings that control the BioZ components following the BioZ Input MUX. As
Evaluates: MAX30001G
Analog Devices │ 9
