MAX30001G Evaluation Kit Evaluates: MAX30001G
ECG Channel Tab
The ECG Channel tab (Figure 6) contains all settings which dictate the signal processing behavior of the ECG measurement
channel. Controls for the ECG input channel, such as Fast Recovery settings, gain for the programmable amplifier, and
the ADC sampling rate, are found in the ECG Channel block diagram. The R-to-R box configures R-to-R detection using
the ECG input data.
A detailed description of all ECG channel configuration settings and R-to-R functionality can be found in the MAX30001G
data sheet.

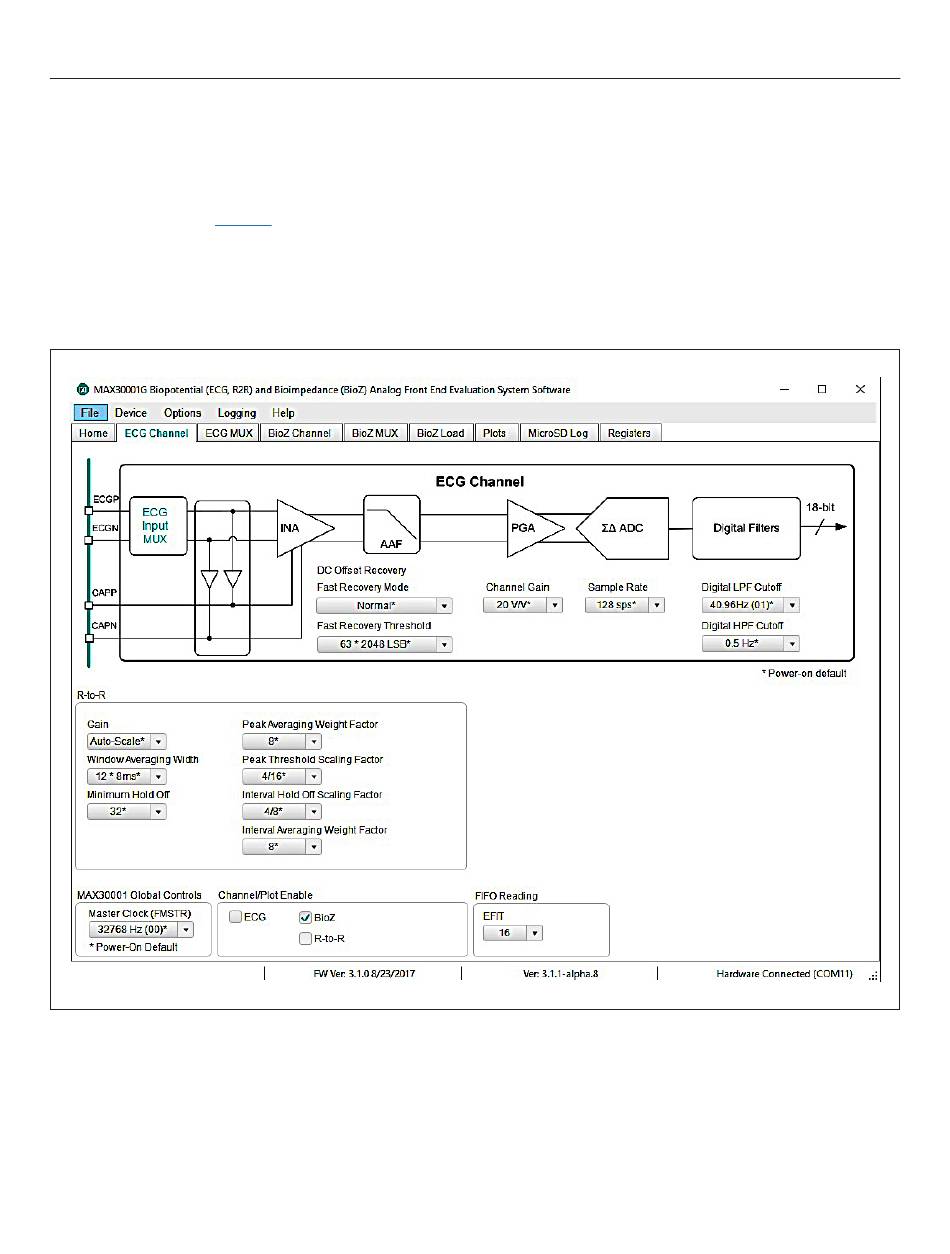

Figure 6. MAX30001G EV Kit ECG Channel Tab.
