MAX30001G Evaluation Kit Evaluates: MAX30001G
Advanced Tab
The Advanced tab (Figure 15) is accessible through the Options ToolStrip menu. The tab provides manual communication with
the MAX30001G to bypass the GUI controls entirely. Enter the register address, as a hexadecimal value, in the Address
field. Read data from a register by pressing the ReadReg button and the data will populate the Read Data field. To write
data, enter the hexadecimal value in the Write Data field and press the WriteReg button. Command Line displays the
formatted command sent by the GUI to the EV kit.

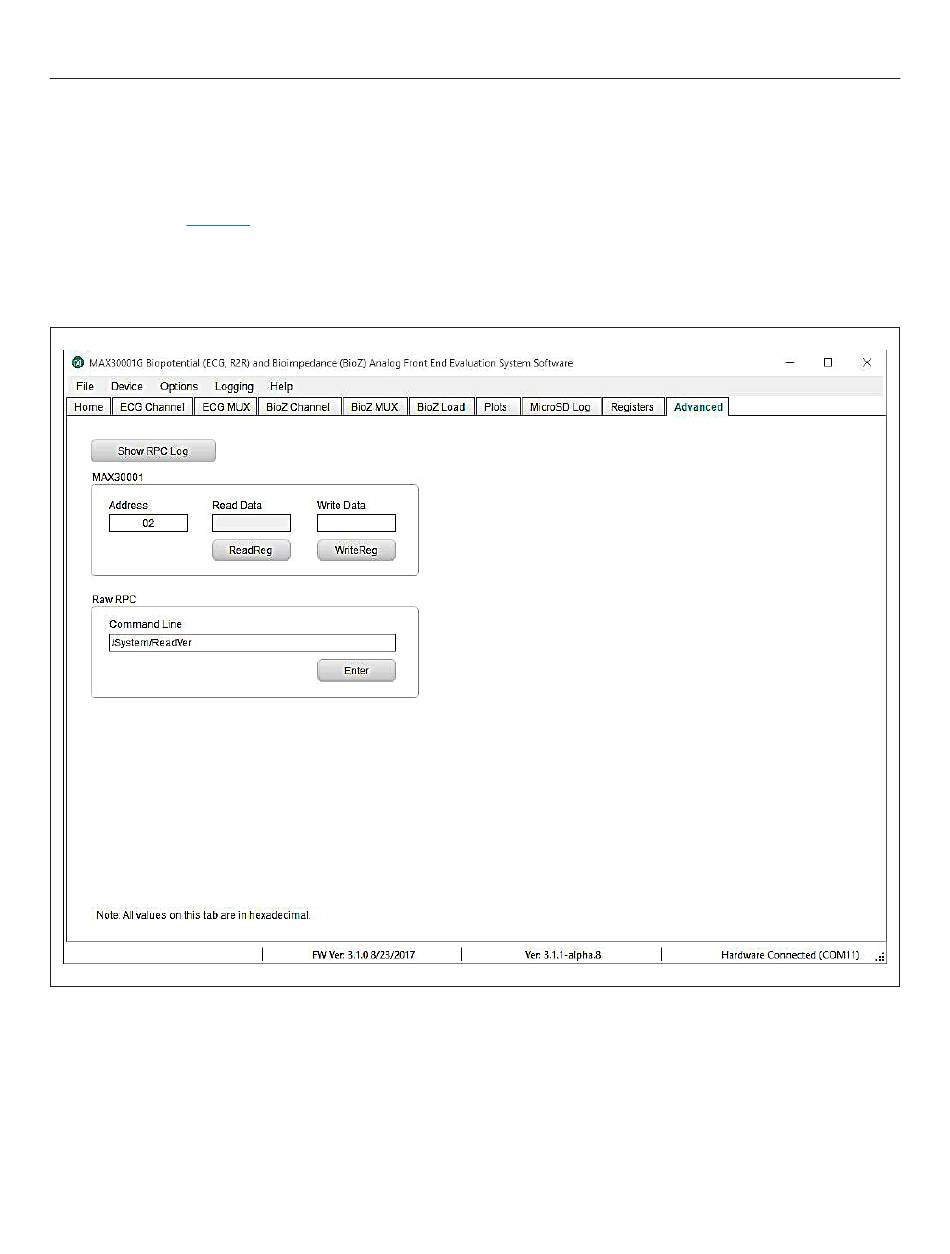

Figure 15. Advanced Tab.
