Analog Devices MAX66301-25x User Manual

Evaluates: MAX66301 and MAX66250
General Description

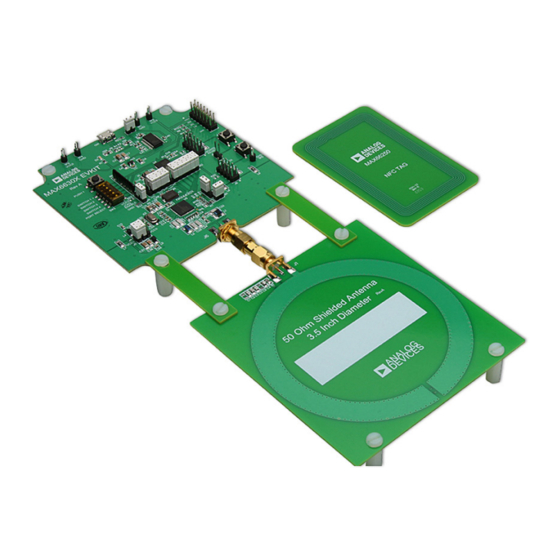

The MAX66301-25x evaluation system (EV system)
comprises a MAX66301 evaluation kit (EV kit) and a
MAX66250 tag. The MAX66301 EV kit combines an RFID
reader for contactless communication at 13.56MHz and
a SHA-3 secure authenticator coprocessor. The RFID
reader covers the ISO 15693 standard and the authen-
ticator coprocessor is based on the FIPS202-compliant
standard. The MAX66250 tag operates as a solution
covering the ISO 15693 standard and combines FIPS202-
compliant Secure Hash Algorithm (SHA-3) challenge and
response authentication with secured EEPROM. By
pairing the MAX66301 with the MAX66250 into an EV
system, the EV kit software can operate to show a secure
challenge and response authentication and other part
specific functionality.
MAX66301-25x EV System Content List
QTY
1 MAX66301 evaluation kit
1 MAX66250 tag
1 USB Type A to USB Mini-Type B cable
Ordering Information appears at end of data sheet.
© 2022 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners.
One Analog Way, Wilmington, MA 01887 U.S.A.
Click
DESCRIPTION
|
Request MAX66301 Security User Guide
here to ask an associate for production status of specific part numbers.
MAX66301-25x Evaluation Kit
Features
● A Secure, Contactless RFID Reader (MAX66301)
• UART and SPI Interface Ports
• Power-Down Mode by an Input Pin
(Low, Standby Power)
• Antenna Short-Circuit Protection
• Compatible with 3.3V or 5V Supply Voltages
• Pushbuttons for Board Reset and MAX66301
Reset
• Port Select Switch Control
• Jumpers for SPI, UART, and Control Signals
• ISO/IEC 15693 and 14443 Type A Standard
Compliant
• SHA-3 Engine to Run a Symmetric Key-Based
Bidirectional Secure Authentication
• Four 32-Byte Pages of User Memory
• Four Master Secrets with Multiple Programmable
Protection Options
• 76-Byte Scratchpad in SRAM
• True Hardware Random-Number Generator
• Unique 64-Bit Serial Number
● Protected Tag Solution (MAX66250)
• HF Interface at 13.56MHz
• User EEPROM Authenticated Memory Page Read/
Write Transactions
• User EEPROM Page Read/Write Transactions
• All Stored Data Cryptographically Protected from
Discovery
• FIPS 202-Compliant SHA-3 Algorithm for
Challenge/Response Authentication
• FIPS 198-Compliant Keyed-Hash Message
Authentication Code (HMAC)
• 17-Bit One-Time Settable, Nonvolatile Decrement-
Only Counter with Authenticated Read
• Secure Storage for Secrets
• 256 Bits of Secure EEPROM for User Data
• ISO/IEC18000-3 Mode1: up to 52.97 kbps
● MAX66301-25x EV System Software Available
