MAX30001G Evaluation Kit Evaluates: MAX30001G
R-to-R data is shown in the ECG plot. R-to-R peak detection is indicated by a red circle at the peaks of the R waves.
Heart rate information gathered from R-to-R detection can be found in the Heart Rate (from R-to-R) box below the plot-
ting area. Figure 12 illustrates an ECG waveform with R-to-R detection enabled. The ECG sample rate is 128sps.

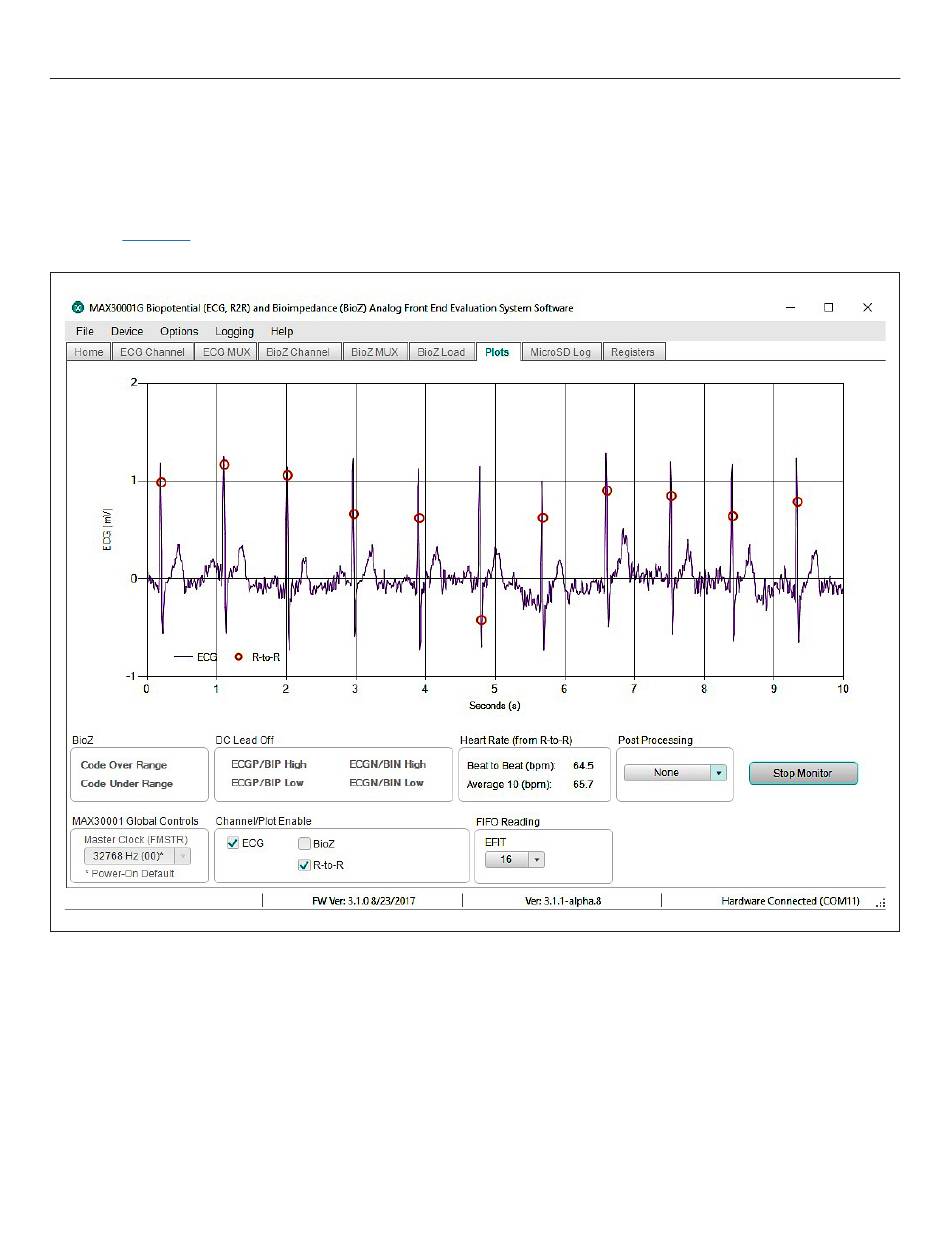

Figure 12. An ECG Waveform with R-to-R and Pace Detection Enabled.
