MAX30001G Evaluation Kit Evaluates: MAX30001G
Registers Tab
The Registers tab (Figure 14) provides more direct access to the internal registers of the MAX30001G. From this tab, it
is possible to read the contents of individual registers and to manually enter the desired bit settings for a write operation.
For the register address selected in the table on the left, the contents are displayed at the bottom of the tab and visualized
as bold and non-bold bit names. When a bit is bold, its value is 1. Otherwise, the bit is 0. Full descriptions of each bit
are available in the Bit Description field for quick reference. Pressing Read reads the selected register, highlighted in
teal, while pressing Read All reads all registers and updates their values in the Registers tab. To write to a register, set
the desired bit values by clicking on the bit names to make bold or non-bold and then press Write. Alternatively, double
click the Value (Hex) cell of a selected row to manually enter a value and press the "Enter" key to write the value to the
device register.

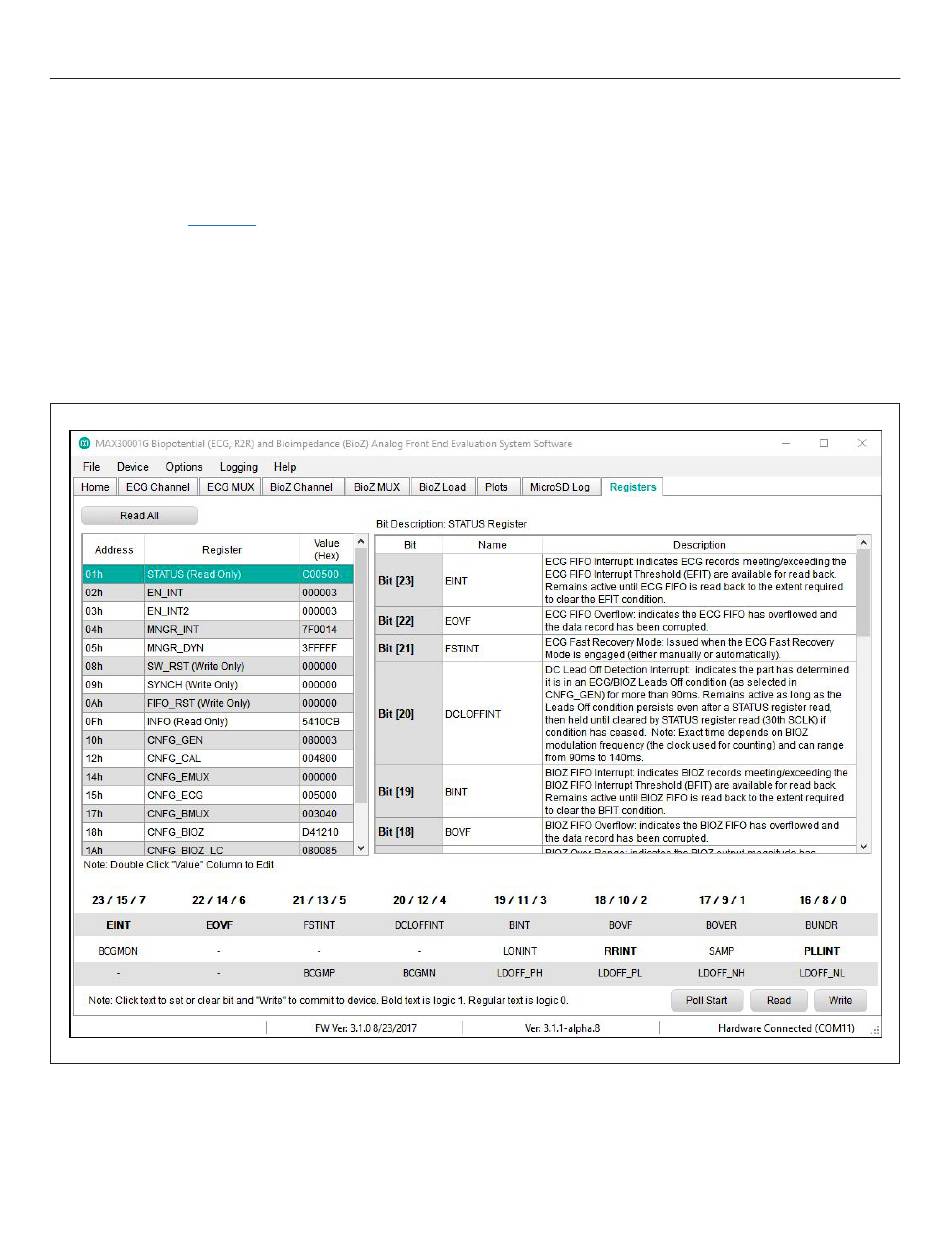

Figure 14. Registers Tab.
