KeyPad S Plus Jeweler Bedienungsanleitung
KeyPad S Plus Jeweler ist eine kabellose Touch-Tastatur. Damit können Sie das
Ajax-System mithilfe verschlüsselter kontaktloser Karten und
Schlüsselanhänger verwalten. Die Tastatur unterstützt auch eine „stille Alarm"-
Funktion, die durch Eingabe des
zeigt den aktuellen Sicherheitsmodus an.
KeyPad S Plus arbeitet im Ajax-System und ist über das geschützte
Protokoll mit dem Hub
Hindernisse beträgt bis zu 1.700 Meter. Das KeyPad S Plus funktioniert mit
vorinstallierten Batterien bis zu 4,5 Jahre. Das Gerät ist nur für den Innenbereich
bestimmt.
Diese Produktlinie wird für Projekte entwickelt. Nur akkreditierte Ajax Systems-Partner
können Superior-Produkte installieren und verwalten.
Die Produktlinien Superior, Fibra und Baseline sind untereinander kompatibel. Dies
eröffnet zahlreiche Möglichkeiten für den Aufbau beliebig kon gurierter Systeme.
Funktionselemente
Veröffentlicht am29. Juni 2023
Bedrohungscodes
verbunden . Die Kommunikationsreichweite ohne
aktiviert wird . Das LED-Licht
Jeweler-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad S Plus Jeweler and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX KeyPad S Plus Jeweler

Summary of Contents for AJAX KeyPad S Plus Jeweler

  • Page 1 KeyPad S Plus Jeweler Bedienungsanleitung Veröffentlicht am29. Juni 2023 KeyPad S Plus Jeweler ist eine kabellose Touch-Tastatur. Damit können Sie das Ajax-System mithilfe verschlüsselter kontaktloser Karten und Schlüsselanhänger verwalten. Die Tastatur unterstützt auch eine „stille Alarm“- Funktion, die durch Eingabe des Bedrohungscodes aktiviert wird .

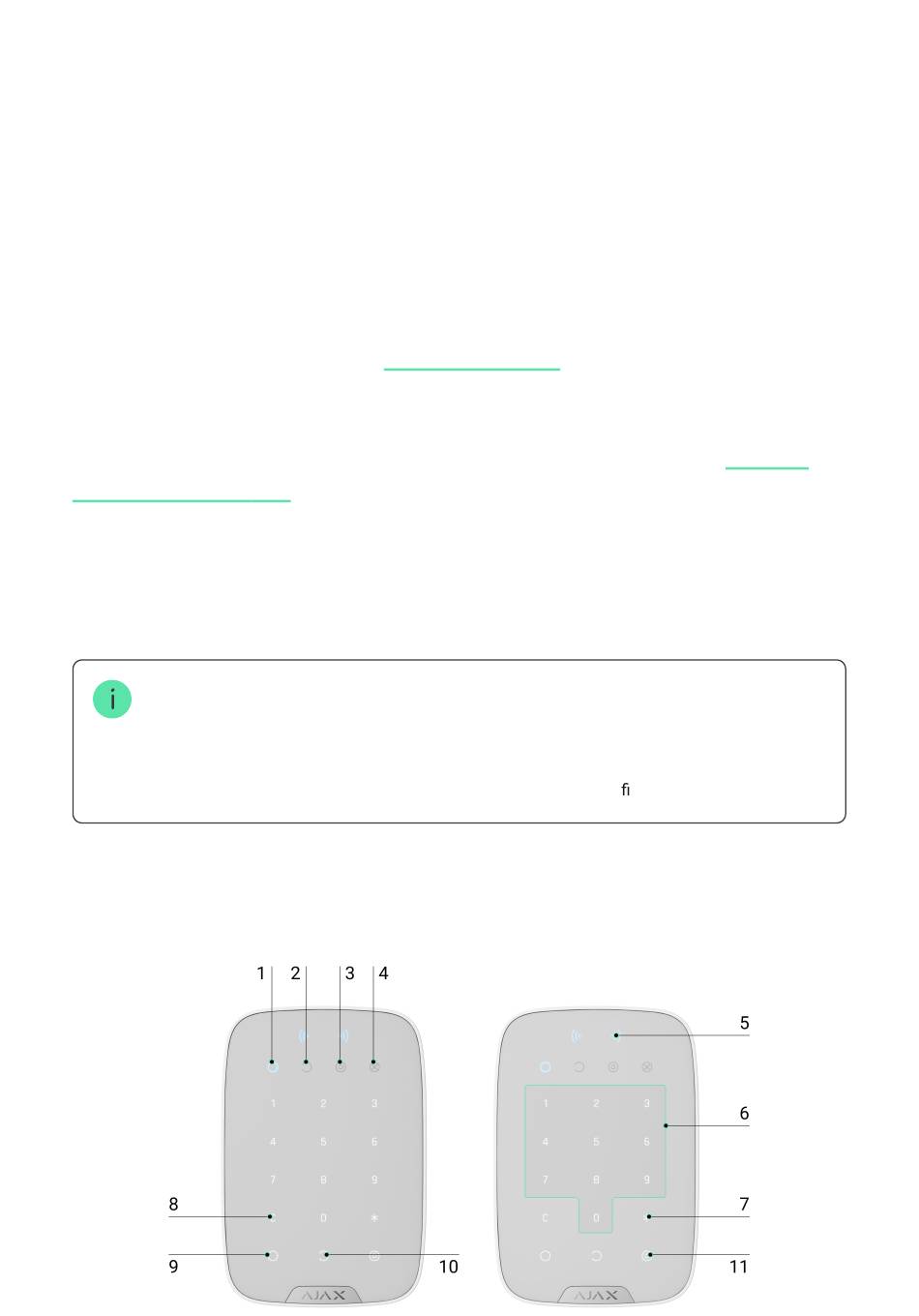

  • Page 2 1. Bewaffneter Indikator. 2. Unscharfanzeige . Nachtmodus -Anzeige. 4. Störungsanzeige . 5. Pass-/Tag-Leser . 6. Numerisches Touch-Tastenfeld. 7. Funktionstaste . 8. Reset- Taste. 9. Armknopf _ 10. Unscharf- Taste Nachtmodus -Taste 12. SmartBracket-Montageplatte (um die Platte zu entfernen, schieben Sie sie nach unten).
