AJAX KeyPad Fibra User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

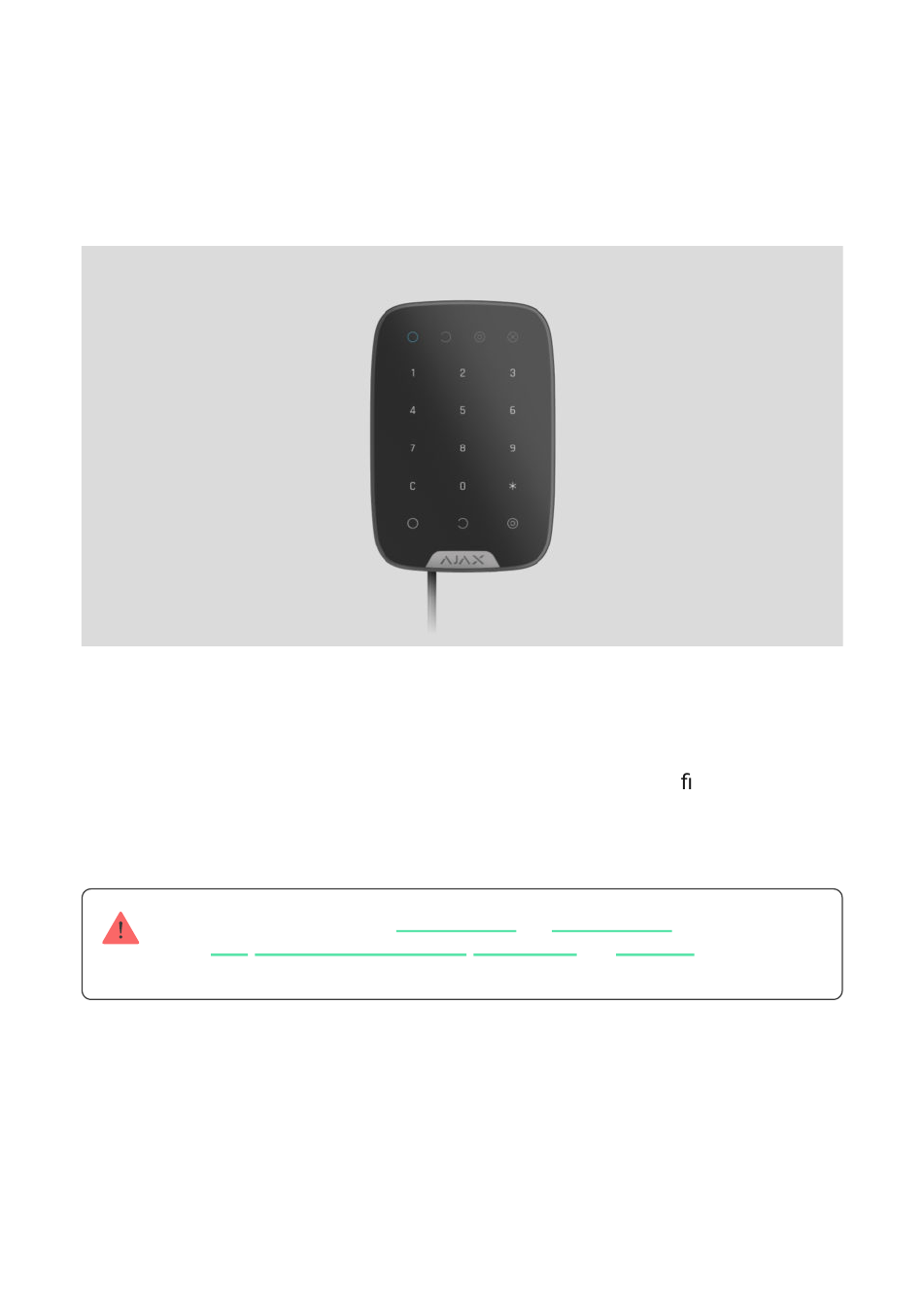

KeyPad Fibra User Manual
KeyPad Fibra is a wired touch keypad of the Ajax security system. Controls the
security modes and Night mode. Supports duress code and protected from
access code guessing. When it is active, the LED indication noti es about the
security mode.
The keypad is compatible with
other
hubs radio signal range extenders ocBridge Plus
,
Integration with other security systems is not provided either.
KeyPad Fibra works as part of the Ajax security system, exchanging data with
the hub using the secure Fibra wired protocol. The wired connection range is up
to 2,000 meters when using a U/UTP cat.5 twisted pair.
KeyPad Fibra is part of the wired Fibra devices line. The installation, sale, and
administration of these devices are performed only by accredited Ajax partners.
Buy KeyPad Fibra
Updated November 9, 2022
Hub Hybrid (2G)
and
,
Hub Hybrid (4G)
. Connection to
, and
uartBridge
is not provided.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX KeyPad Fibra

Summary of Contents for AJAX KeyPad Fibra

  • Page 1 KeyPad Fibra User Manual Updated November 9, 2022 KeyPad Fibra is a wired touch keypad of the Ajax security system. Controls the security modes and Night mode. Supports duress code and protected from access code guessing. When it is active, the LED indication noti es about the security mode.

  • Page 2: Functional Elements

    Functional elements 1. Armed LED indicator. 2. Disarmed LED indicator. 3. Night mode LED indicator. 4. Malfunction LED indicator. 5. Numeric touch button box. 6. Reset button. 7. Function button. 8. Arm button. 9. Disarm button. Night mode enabling button. 11.

  • Page 3: Operating Principle

    18. Fasteners for xing cables with ties. Operating principle 00:00 00:02 KeyPad Fibra is a touch keypad to control the Ajax security system. It controls the security modes of the entire object or individual groups and also allows you to enable or disable the Night mode You can control the security modes with KeyPad Fibra using general or personal codes.

  • Page 4: Access Codes

    When used, all events are delivered to Ajax apps on behalf of the keypad. User code — the personal code of the user who has an Ajax account and is linked to the hub. Each system user sets the code independently in the hub settings.

  • Page 5: Function Button

    How to set up a duress code for a user without an Ajax account Function button KeyPad Fibra keypad has the Function button. The button can work in one of three modes: Alarm — the panic button mode. After pressing, the system sends an alarm...
  • Page 6 Also, unlocking occurs automatically after the lock time speci ed in the settings expires. Two-stage arming KeyPad Fibra participates in arming in two stages. This process is similar to arming with a personal or common code on a keypad. The process should be...
  • Page 7 SpaceControl or restoring the terminating detector (for example, closing the door with DoorProtect Fibra installed). KeyPad Fibra cannot act as a terminating device in two-stage arming. More on two-stage arming Fibra data transfer protocol The keypad uses Fibra technology to transmit alarms and events. This is a wired data transfer protocol that provides fast and reliable two-way communication between the hub and the connected devices.

  • Page 8: Selecting The Installation Site

    Fibra Signal Strength. Cable length for connecting KeyPad Fibra. KeyPad Fibra is mounted on a at vertical surface with the bundled screws. The keypad is intended for indoor installation only. For convenience, we recommend installing the keypad at a height of 1.3–1.5 meters from the oor.
  • Page 9 Do not install KeyPad Fibra Outdoors. This could damage the keypad. Inside premises with temperature and humidity outside the permissible limits. This could damage the keypad. In places where the keypad has an unstable or low signal strength. This can lead to a loss of connection between the hub and the keypad.
  • Page 10 Fibra wired systems are available in this article Topologies Currently, Ajax security systems support two topologies: Beam (Radial wiring) and Ring. Connecting devices using a Ring topology will be implemented in the next OS Malevich updates. Hardware update of Hub Hybrid is not required.
  • Page 11 occupies one bus output of the hub occupies two bus outputs of the hub up to 8 beams with the same hub up to 4 rings with the same hub up to 2,000 m of wired communication for up to 500 m of wired communication for the the same line same ring a terminating resistor is installed at the end...

  • Page 12: Additional Information

    Recommended cable types: U/UTP cat.5 4 × 2 × 0.51, copper conductor. Signal cable 4 × 0.22, copper conductor. If you use a different type of cable, the communication range for wired connections may vary. No other types of cables have been tested. Veri cation using a calculator To make sure that the project is calculated correctly and that such a system will work in real practice, we have developed a communication range calculator of...

  • Page 13: Cable Routing

    Try to avoid any deviations from the security system project design. Violation of the basic installation rules and the recommendations of this manual lead to incorrect operation, as well as loss of connection with the KeyPad Fibra. Check the cables for bends and physical damage before installation. Replace...

  • Page 14: Installation And Connection

    Recommended cable lug sizes: 0.75 to 1 mm². Installation and connection Before installing KeyPad Fibra, make sure that you have selected the optimal location and that it meets the requirements of this manual. Cables should be hidden from prying eyes and located in places inaccessible to intruders to reduce the chance of sabotage.
  • Page 15 2. Remove the KeyPad Fibra board from the holders on the mounting panel, pulling them to the sides and pulling the board towards you. 3. Prepare holes for cable output in advance. To output cables from the back of the keypad, break out the perforated part on the SmartBracket mounting panel.
  • Page 16 One of them, in the perforated part of the mounting panel, is needed to trigger the tamper in case of an attempt to tear the device off the surface. 9. Install the KeyPad Fibra board on special mounting panel holders. 10. Connect the wires to the terminals according to the scheme below. Follow the polarity and connection order of the wires.
  • Page 17 3. Make sure that the hub is on and has Internet access via Ethernet and/or mobile network. You can check the connection in the Ajax app or by looking at the LED on the hub board: it should light up white or green.
  • Page 18 Devices tab in the app. KeyPad Fibra works with one hub only. After connecting to a new hub, the keypad stops exchanging commands with the old one. Once added to a new hub, KeyPad Fibra is not removed from the list of devices of the old hub.

  • Page 19: Functionality Testing

    4. Go to the KeyPad Fibra settings by clicking on the gear icon 5. Select the Fibra Signal Strength Test. 6. Run the test following the prompts of the app. Icons The icons show some of the device states. You can view them in Ajax apps in the Devices tab. Icon Meaning Fibra Signal Strength —...
  • Page 20 States The states include information about the device and its operating parameters. The states of KeyPad Fibra can be found in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Fibra from the list of devices. Parameter...
  • Page 21 Device № KeyPad Fibra loop (zone) number. The number of the Fibra line of a hub to which Bus № KeyPad Fibra is physically connected. Settings To change the keypad settings in the Ajax app:...
  • Page 22 1. Go to the Devices tab. 2. Select KeyPad Fibra from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required settings. 5. Click Back to save the new settings. Settings Meaning Keypad name. Displayed in the list of hub devices, text of SMS and noti cations in the events feed.
  • Page 23 Alarm — when the button is pressed, the system sends an alarm to all users and the monitoring station of a security company. Function Button Mute Interconnected Fire Alarm — when Ajax re pressed, disables the detectors alarm. The option works only if Interconnected re detectors alarm option is enabled.
  • Page 24 Fibra Fibra Signal Strength Test wired data transfer protocol to determine the optimal installation location. Learn more Opens the KeyPad Fibra User Manual in the Ajax User Guide app. Temporary Deactivation Allows the user to disable the device without removing it from the system.
  • Page 25 Lid only — the system will ignore noti cations about the triggering of the device tamper only. No — the device operates in normal mode. Learn more Unpairs KeyPad Fibra from the hub and deletes Unpair Device its settings. Codes setting Keypad access code To generate a keypad access code, in Ajax apps: 1.
  • Page 26 Ajax keypads support codes for users not connected to the hub. This is convenient, for example, for creating a cleaning company code. To create an access code for a user without an account, in Ajax apps: 1. Go to the Devices menu.
  • Page 27 Duress code for a user without an account To create a duress code for a user without an account, you rst should create personal access code for such a user. To do this in the Ajax app: 1. Go to the Devices menu.
  • Page 28 Arming with a common code In progress KeyPad Fibra is locked for the time speci ed in the settings if an incorrect password is entered three times in a row within 1 minute. The corresponding noti cations are sent to users and to the monitoring station of the security company.
  • Page 29 If a security group is assigned to the keypad in its settings, you do not need to enter the group ID. To control the security of this group, it is enough to enter the keypad code or user code. If KeyPad Fibra is con gured to control a separate security group, enabling the Night mode for this group is only possible with a user code.
  • Page 30 1. Activate the keypad by touching any touch button. 2. Enter the User ID 3. Press the Function button. 4. Enter the User code. 5. Press the Function button. 6. Enter the Group ID 7. Press the button (Arm), (Disarm) or Night mode For example, to arm the group: 2 →...

  • Page 31: Led Indication

    2 → * → 4422 → LED indication KeyPad Fibra can report the current security mode, button pressings, malfunctions, and other conditions with LED indication and a sound signal. The current security mode is displayed by the backlight after the keypad is activated.

  • Page 32: Maintenance

    3 times. Malfunctions If a keypad malfunction is detected, a malfunction counter is displayed in Ajax apps in the upper left corner of the device icon. All malfunctions can be seen in the States of devices.

  • Page 33: Technical Speci Cations

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
