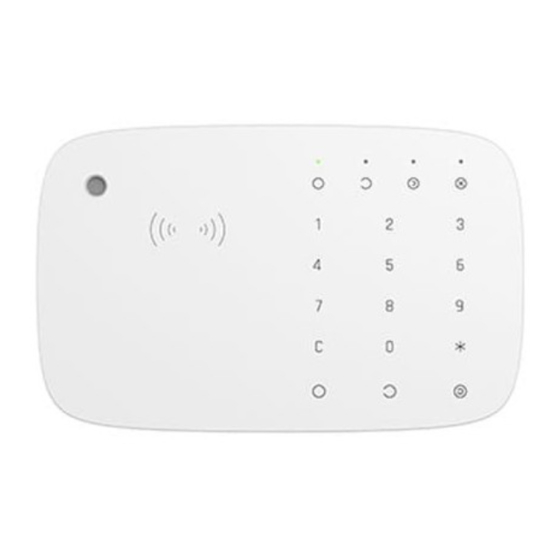

KeyPad Combi is a wireless touch keypad for Ajax security systems management
using contactless cards and key fobs. Is equipped with in-built siren. The device is
designed for indoor installation.
KeyPad Combi is only compatible with
2.11 and later, and
uartBridge
Buy KeyPad Combi

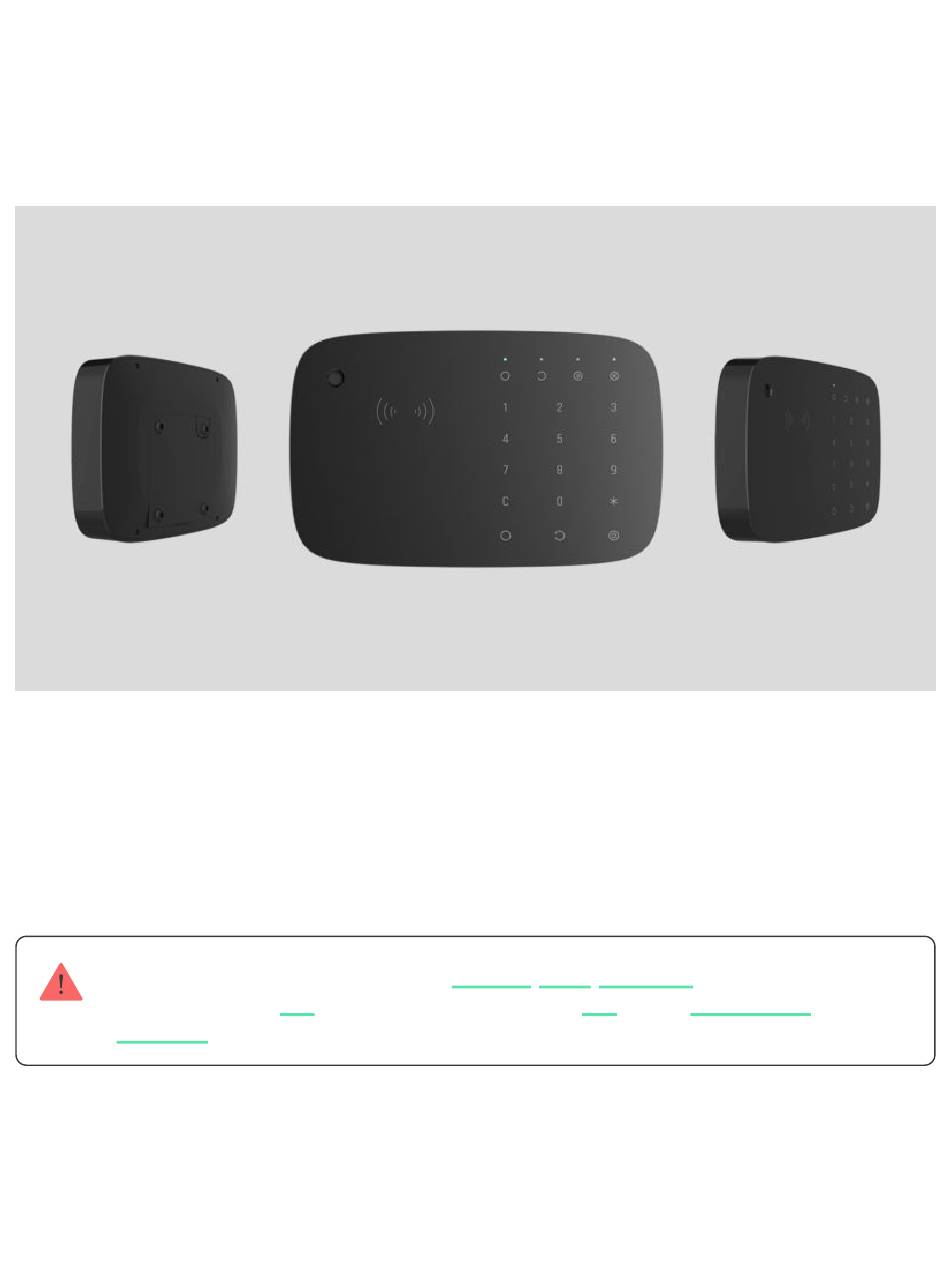

Functional elements
KeyPad Combi User Manual
Updated October 1, 2021
ReX
range extender. Connection to
integration modules is not supported!
Hub Plus Hub 2 Hub 2 Plus
,
,
Hub
and the
running OS Malevich
ocBridge Plus
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad Combi and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX KeyPad Combi

Summary of Contents for AJAX KeyPad Combi

  • Page 1 KeyPad Combi User Manual Updated October 1, 2021 KeyPad Combi is a wireless touch keypad for Ajax security systems management using contactless cards and key fobs. Is equipped with in-built siren. The device is designed for indoor installation. KeyPad Combi is only compatible with...
  • Page 2 1. Armed indicator 2. Disarmed indicator Night mode indicator 4. Malfunction indicator 5. Pass/tag reader 6. Siren...

  • Page 3: Operating Principle

    7. Numeric touch button box 8. Reset button 9. Function button 10. Arm button 11. Disarm button Night mode button 13. SmartBracket mounting plate (to remove the plate, slide it down) Do not tear off the perforated part of the mount. It is required for actuating the tamper in case of any attempt to dismantle the device.

  • Page 4: Security Management

    00:07   KeyPad Combi combines two devices: a siren and a keypad with RFID card and key fob support. This means that the same device may be used to manage the security modes and to notify about system alarms and events.
  • Page 5 12 seconds, KeyPad Combi goes into power-saving mode and turns off the display of the current arming mode. Keep in mind that KeyPad Combi has no touch buttons or cards/tags reader backlight. Using the siren KeyPad Combi includes a fully functional Ajax security system siren. The device has 2 tasks: 1.

  • Page 6: Function Button

    Function button KeyPad Combi has a Function button that operates in 3 modes: Off — the button is disabled and nothing happens after it is pressed. Alarm — after the Function button is pressed, the system sends an alarm to the security company monitoring station and all users.
  • Page 7 KeyPad Combi can participate in two-stage arming but cannot be used as a second-stage device. The two-stage arming process using Tag or Pass is similar to arming using a personal or common password. Learn more Event transmission to the monitoring station...
  • Page 8 The device only works with one hub. When connected to a new hub, the device stops sending commands to the old hub. Once added to a new hub, KeyPad Combi is not removed from the device list of the old hub. This must be done manually through the Ajax app.
  • Page 9 Pass/Tag reading is disabled in KeyPad Combi settings States The states include information about the device and its operating parameters. The states of KeyPad Combi can be found in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Combi from the list.
  • Page 10 ReX range extender) and KeyPad Combi. Jeweller signal strength Recommended values — 2-3 bars. Connection status between the hub/range extender and the device: Online — KeyPad Combi is connected to the Connection hub/range extender Offline — KeyPad Combi is not connected to the hub/range extender The battery charge level of the device.
  • Page 11 The field is not displayed if KeyPad Combi works directly with the hub. Alarm duration, sec Duration of the alarm sound: 3 to 180 seconds. Volume level in case of alarm: Muted — the built-in siren is silent when alarm...
  • Page 12 Device identifier. Device № Number of the device loop (zone). Settings KeyPad Combi is configured in the Ajax app: 1. Go to the Devices tab. 2. Select KeyPad Combi from the list. 3. Go to Settings by clicking on the gear icon To apply the settings after the change, click the Back button.
  • Page 13 The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which KeyPad Combi is assigned. The name of the room is displayed in Room the text of SMS and notifications in the event feed.
  • Page 14 1 minute. Unauthorized Access Auto-Lock It is not possible to disarm the system via keypad during this time. You can unlock KeyPad Combi through the Ajax app. Selecting the device keypad lock period after wrong password attempts:...
  • Page 15 Increment of 3 seconds. When enabled, the siren warns of arming and Beep when arming/disarming disarming by a short beep. Opens the KeyPad Combi siren notification settings. A detailed description of the settings is Notification settings available below...
  • Page 16 (Function button) is pressed. Allows deleting all hubs associated with Tag or Pass from device memory. Pass/Tag Reset Learn more Opens the KeyPad Combi User Manual in the Ajax User Manual app. Temporary deactivation Allows the user to disable the device without removing it from the system.
  • Page 17 Learn more about temporary deactivation of devices Disconnects KeyPad Combi from the hub and Unpair Device deletes its settings. KeyPad Combi siren notification settings When this option is enabled, the built-in siren...
  • Page 18 , and StreetSiren DoubleDeck Setting up the processing of detector alarms You can use the Ajax app to specify the detectors to which the siren will respond if an alarm is triggered. This is necessary to avoid situations when the security...
  • Page 19 The parameter is adjusted in the settings of a detector or device to which the siren should not respond. To disable siren response to alarms from a specific detector or device, in the Ajax app: 1. Go to the Devices menu.
  • Page 20 The KeyPad Combi siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button, in the Ajax app: 1.
  • Page 21 If an external contact is open (available if the External Contact option is enabled). 6. Select the notification sound: 1 to 4 short beeps. Once selected, the Ajax app will play the sound. 7. Click Back to save the settings.
  • Page 22 KeyPad Combi supports both common and personal user passwords. A personal password applies to all Ajax keypads installed at the facility. A common password is set for each keypad individually and can be different or the same as the passwords of other keypads.
  • Page 23 You can manage the Night mode, security of the entire facility or separate groups using common or personal passwords. KeyPad Combi supports 4 to 6 digit passwords. Incorrectly entered numbers can be cleared with the  button. If a personal password is used, the name of the user who armed or disarmed the system is displayed in the hub event feed and in the notifications list.
  • Page 24 KeyPad Combi is locked for the time specified in the settings if an incorrect password is entered three times in a row within 1 minute. Wrong password attempts notifications are sent to users and to the CMS of the security company. A user or PRO with administrator rights can unlock KeyPad Combi in the Ajax app.
  • Page 25 For example: 1234 If a group is assigned to KeyPad Combi, you will not be able to manage Night mode using a common password. In this case, Night mode can only be managed using a personal password if the user has the appropriate rights.
  • Page 26 What is User ID Using a duress code A duress code allows you to simulate alarm deactivation. The Ajax app and sirens installed at the facility will not give the user away in this case, but the security company and other users will be warned about the incident. Both personal and common duress codes are supported.
  • Page 27 (if enabled in the settings) and enables indication of the current security status. 2. Bring Tag or Pass to the KeyPad Combi reader. It is marked with wave icons. 3. Press the Arm, Disarm, or Night mode button on KeyPad Combi.
  • Page 28 If the group mode is enabled but KeyPad Combi is not bound to a specific group, after tapping Tag or Pass specify the Group ID and confirm arming or disarming by pressing a respective button on KeyPad Combi. What is Group ID Mute Interconnected Fire Alarm function KeyPad Combi can mute the fire alarm by pressing the Function button (if the...
  • Page 29 You can activate KeyPad Combi by swiping your hand over the touch panel from top to bottom. When activated, the current security status backlight on the device will turn on and a beep will sound (if enabled).

  • Page 30: Functionality Testing

    How to replace batteries in KeyPad Combi Functionality testing The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. KeyPad Combi functionality tests start instantly, irrespective of the hub-detector ping period (36 seconds with the standard settings of the hub).

  • Page 31: Choosing A Location

    When holding KeyPad Combi in your hands or using it on a table, we cannot guarantee that the touch buttons will work properly.
  • Page 32 ReX radio signal range extender Convenience of use and audibility of the siren Install KeyPad Combi so that it is convenient to use it. The device should not be obstructed with various objects, and access to the device should be free of obstacles.
  • Page 33 In places where the audio signal can be jammed. Installation of KeyPad Combi Prior to installing KeyPad Combi, be sure to select the optimal location following the requirements of this manual! 1. Attach KeyPad Combi to the surface with double-sided adhesive tape and carry out signal strength and attenuation tests.
  • Page 34 Please note that if the device is attached with adhesive tape, the tamper will not trigger when trying to detach it. 2. Conduct the volume level test. If KeyPad Combi is hardly audible, relocate the device or change the volume level in the device settings.

  • Page 35: Maintenance

    LED X (Malfunction) smoothly lights up and goes out after each successful password entry. KeyPad Combi can work up to 2 months after the low battery signal. However, we recommend you replace the batteries immediately upon notification. It is advisable to use lithium batteries. They have a large capacity and are less affected by temperatures.

  • Page 36: Complete Set

    How to replace batteries in KeyPad Combi Complete set 1. KeyPad Combi 2. SmartBracket mounting plate 3. 4 pre-installed lithium batteries CR123A 4. Installation kit 5. Quick Start Guide Technical Specifications Compatibility Hub Plus, Hub 2, Hub 2 Plus, ReX...

  • Page 37: Warranty

    24 months Compliance with standards Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not extend to the bundled batteries. If the device does not function properly, we recommend that you first contact the...
