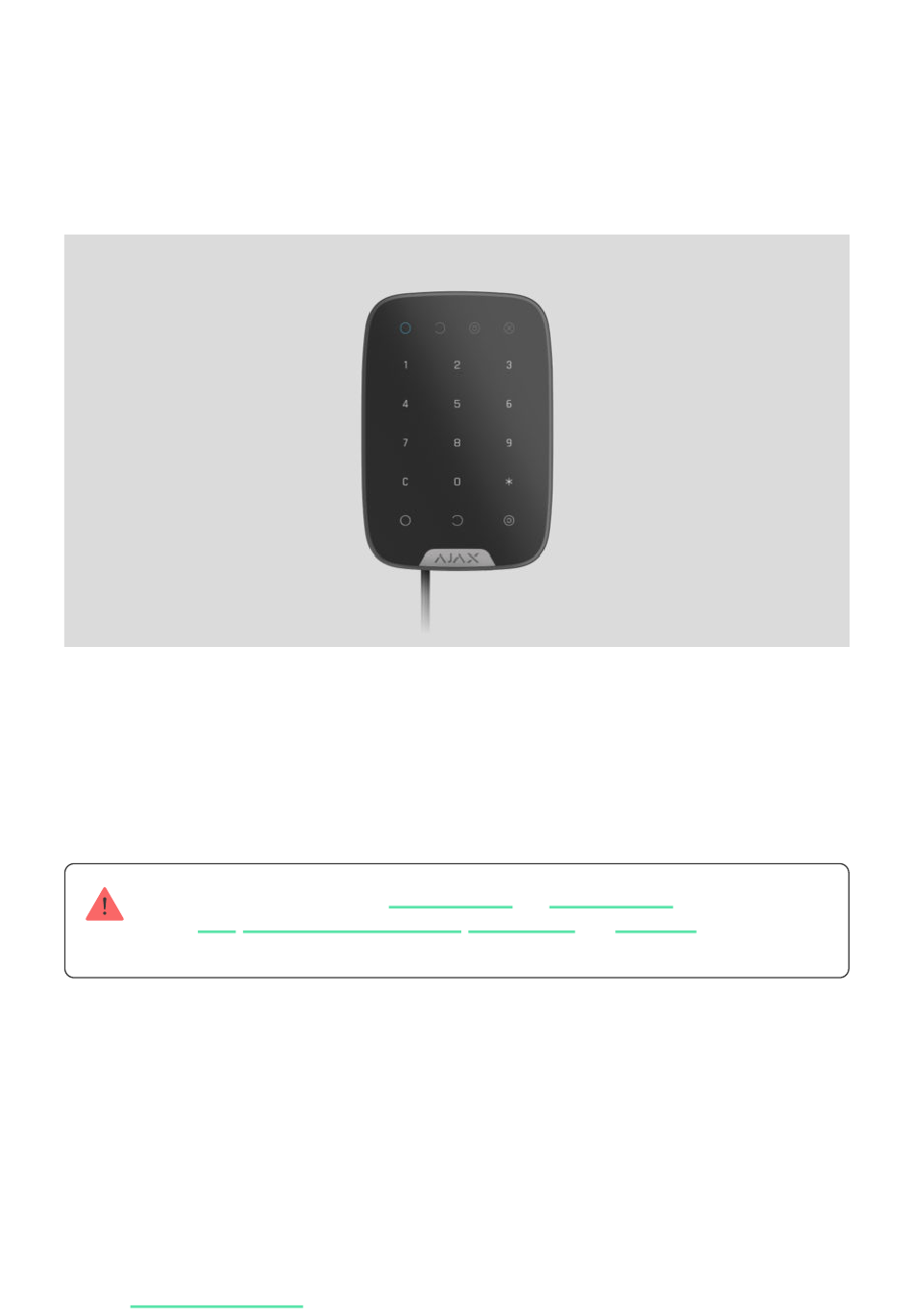

KeyPad Fibra User Manual

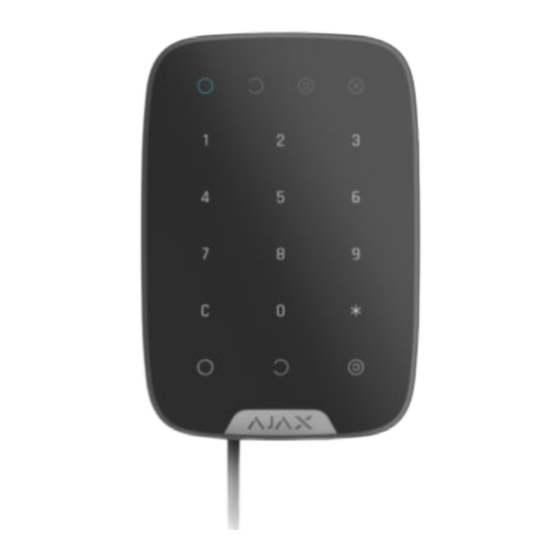

KeyPad Fibra is a wired touch keypad for controlling the Ajax security system.
Supports "silent alarm" if the duress code is entered. Informs about the current
security mode by LED indication.
The keypad is compatible with
other
hubs radio signal range extenders ocBridge Plus
,
supported. Integration with other security systems is not provided
KeyPad Fibra only works as a part of the Ajax security system, communicating
with the hub via the secure Fibra protocol. The wired connection range is up to
2000 meters when connected via the twisted pair U/UTP cat.5.
KeyPad Fibra is the device of the new Fibra wired product line. Such devices can
only be purchased, installed and administered by accredited Ajax partners.
Buy KeyPad Fibra
Updated March 11, 2022
Hub Hybrid (2G)
and
,
Hub Hybrid (4G)
. Connection to
, and
uartBridge
is not

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Fibra

Summary of Contents for AJAX Fibra

  • Page 1 Integration with other security systems is not provided KeyPad Fibra only works as a part of the Ajax security system, communicating with the hub via the secure Fibra protocol. The wired connection range is up to 2000 meters when connected via the twisted pair U/UTP cat.5.

  • Page 2: Functional Elements

    Functional elements 1. Armed LED indicator. 2. Disarmed LED indicator. 3. Night mode LED indicator. 4. Malfunction LED indicator. 5. Numeric touch button box. 6. Reset button. 7. Function button. 8. Arm button. 9. Disarm button. 10. Night mode button. 11.

  • Page 3: Operating Principle

    . Triggers when an attempt is made to detach the keypad from the surface or remove the mounting panel. 17. QR code of the device. Used to connect the keypad to the Ajax security system. 18. Terminal block for connecting the keypad.

  • Page 4: Function Button

    The backlight brightness and the keypad volume are adjusted in keypad settings . If you do not touch the keypad for 4 seconds, KeyPad Fibra reduces the brightness of the backlight, and 8 seconds later goes into power-saving mode and turns off the display.
  • Page 5 More on two-stage arming Fibra data transfer protocol The keypad uses Fibra technology to transmit alarms and events. This is a two- way wired data transfer protocol that provides fast and reliable communication between the hub and the rest of the devices. Using the bus connection method, Fibra delivers alarms and events instantly, even if 100 detectors are connected to the system.
  • Page 6 Addressability of each Ajax device allows you to send not only events to the PRO Desktop or to the CMS but also the type of the device, the name of the device, and the virtual room to which the detector is assigned.

  • Page 7: Detector Placement

    When holding KeyPad Fibra in your hands or using it on a table, we cannot guarantee that the touch buttons will work properly.
  • Page 8 When designing the layout scheme of the detectors, consider the wiring diagram of the power cables laid on the site. Signal cables must be laid at a distance of at least 50 cm from the power cables when lying parallel, and, if they intersect, it must be at a 90°...
  • Page 9 Check the Fibra signal strength before nal installation of the keypad. If the signal strength is as low as one or zero bars, we cannot guarantee stable operation of the device.

  • Page 10: Installation And Connection

    2. Inside premises with temperature and humidity outside the permissible limits. This could damage the keypad. 3. In places where KeyPad Fibra has an unstable or low signal strength. 4. Outdoors. This could damage the keypad. Installation and connection Before installing KeyPad Fibra, make sure that you have selected the optimal location and that it meets the requirements of this manual.
  • Page 11 2. Plug the cable into the hub and connect the wires to the bus terminals. +24V — power supply input А, B — signal terminals GND — ground 3. Remove the SmartBracket mounting plate from the keypad. 4. Run the wires from the hub into the keypad body through the special channels on the SmartBracket mounting plate to lead the wire out from the bottom of the keypad.
  • Page 12 Add KeyPad Fibra to the system 11. Conduct the Fibra signal strength test. The recommended signal strength value is two or three bars. Otherwise, check the connection and the condition of the wire.
  • Page 13 Adding to the system The keypad is compatible with Hub Hybrid (2G) and Hub Hybrid (4G) only. Fibra devices can only be added and con gured through the Ajax PRO app by a user with administrator rights. Types of accounts and their rights Before adding a device 1.
  • Page 14 If the device adds to the hub successfully, it will disappear from the list of available devices. Device status updating depends on the Fibra settings; the default value is 36 seconds. If the connection fails, check the accuracy of the wired connection and try again.
  • Page 15 KeyPad Fibra works with one hub only. When connected to a new hub, the keypad stops exchanging commands with the old one. Once added to a new hub, KeyPad Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
  • Page 16 Learn more States The states include information about the device and its operating parameters. KeyPad Fibra states can be found in the Ajax app: 1. Go to the Devices tab. 2. Choose KeyPad Fibra from the list. Parameter Meaning Clicking on opens a list of malfunctions of KeyPad Fibra.
  • Page 17 Keypad rmware version. Keypad ID. Also available on the keypad body and packaging. Device № Keypad loop (zone) number. The number of the hub bus the keypad is Bus № connected to. Settings To change the keypad settings in the Ajax app:...
  • Page 18 1. Go to the Devices tab. 2. Choose KeyPad Fibra from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required parameters. 5. Click Back to save the new settings. Settings Meaning Keypad name. Displayed in the list of hub devices, SMS text, and noti cations in the events feed.
  • Page 19 Unauthorized Access Auto-lock It is not possible to disarm the system using the keypad during this time. You can unlock the keypad through the Ajax app. Auto-lock Time, min Selecting the keypad lock period after wrong passcode attempts: 3 minutes...
  • Page 20 Switches the keypad to the Fibra signal strength test mode. The test allows you to check the signal strength between the hub and the keypad over the Fibra Fibra signal strength test wired data transfer protocol to determine the optimal installation location.
  • Page 21 Both general and personal user codes can be set for the keypad. A personal code applies to all Ajax keypads installed at the facility. A general code is set for each keypad individually and can be different or the same as the codes of other keypads.
  • Page 22 Arming with a general code In progress KeyPad Fibra is locked for the time speci ed in the settings if an incorrect code is entered three times in a row within 1 minute. The corresponding noti cations are sent to users and the monitoring station of the security company.
  • Page 23 If a group is assigned to KeyPad Fibra, you will not be able to manage Night mode using a general code. In this case, Night mode can only be managed using a personal code if the user has the appropriate rights.
  • Page 24 For example: 2 1234 If a group is assigned to KeyPad Fibra (in the Group management eld in the keypad settings), you do not need to enter the group ID. To manage the security mode of this group, entering a personal code is su cient.
  • Page 25 4422 Mute Fire Alarm function KeyPad Fibra can disable Interconnected FireProtect alarms by pressing the Function button (if the corresponding setting is enabled). The response of the system to pressing a button depends on the settings and the state of the system: Interconnected FireProtect Alarms have already propagated —...
  • Page 26 The current security mode is displayed by the backlight after the keypad is activated. The information about the security mode is relevant, even if it is changed using another device (SpaceControl or another KeyPad) or an app. To activate the keypad, touch any button on the panel. When activated, the keypad turns on the backlight and beeps (if enabled).

  • Page 27: Functionality Testing

    Functionality testing The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. Tests do not start straight away but begin no later than a single hub-detector ping period (36 seconds under default settings of the hub).

  • Page 28: Complete Set

    Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most of the cases, technical issues can be resolved remotely.
