Setup

5.1.

Removing the Shipping Fixture

Loosen the eight set screws in the bases of the fiber holding blocks. Open the lids. Remove the shipping fixture.
Place it in a safe location. You may need it again, should you ever need to ship the unit back for service.
5.2.

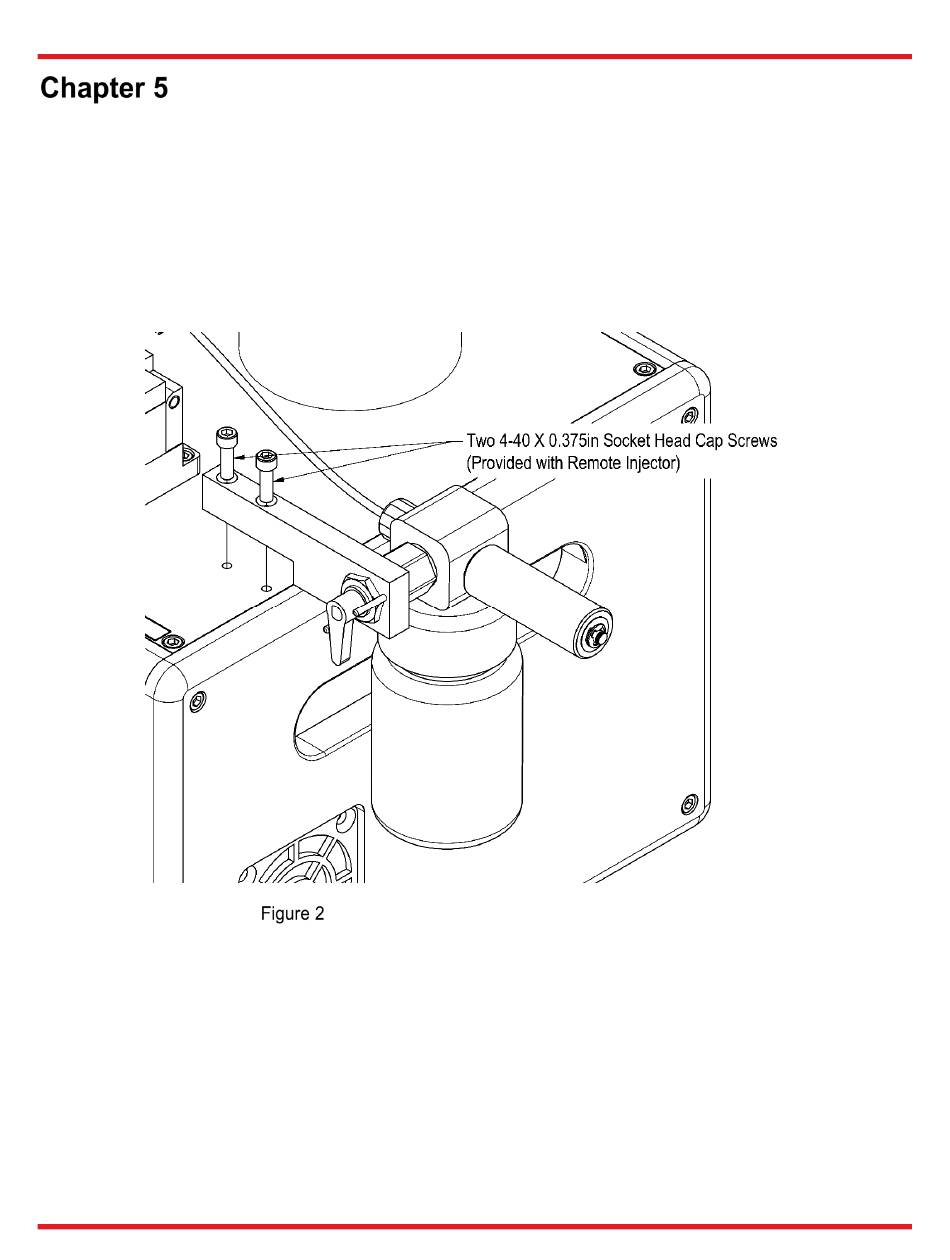

Attaching the Manual Recoat Injector

If your unit is a PTR406B, you will need to attach the manual recoat injector to the side of the unit. Place the injector
on the side of the unit and attach it to the unit using the two cap screws from the attached bag. Use the 3/32" hex
key to tighten the screws.
5.3.

Installing the Inserts

Put the top inserts in place and capture them using the set screws in the lid. Use the 0.035" hex key to tighten the
set screws. Put the bottom inserts in place and capture them using the set screws in the base of the fiber holding
block, using the same Hex key. As you install the inserts, make sure they are fully seated as you tighten the set
screws.
