Chapter 3 Setup
Caution
Prior to using the ULN systems, it is highly recommended to clean the output bulkhead as well as the
connector facets to be connected to the bulkhead. Failure to clean the connectors can result in damage
to the internal connector.
When cleaning the connectors, ensure that the laser is powered off by turning off the push-button
switch. Never inspect optical connectors unless all light sources in your setup have been switched off.
Front and Back Panel Overview
Status Indicator LEDs
Laser Output Port
(PM, FC/APC Bulkhead)
RS-485 Connection
(9-Pin Female D-Sub)
Figure 1
Rev. A, August 17, 2022
USB Connection
(USB Mini-B)
Connector)
(M8 Connector for DS12 Power Supply)

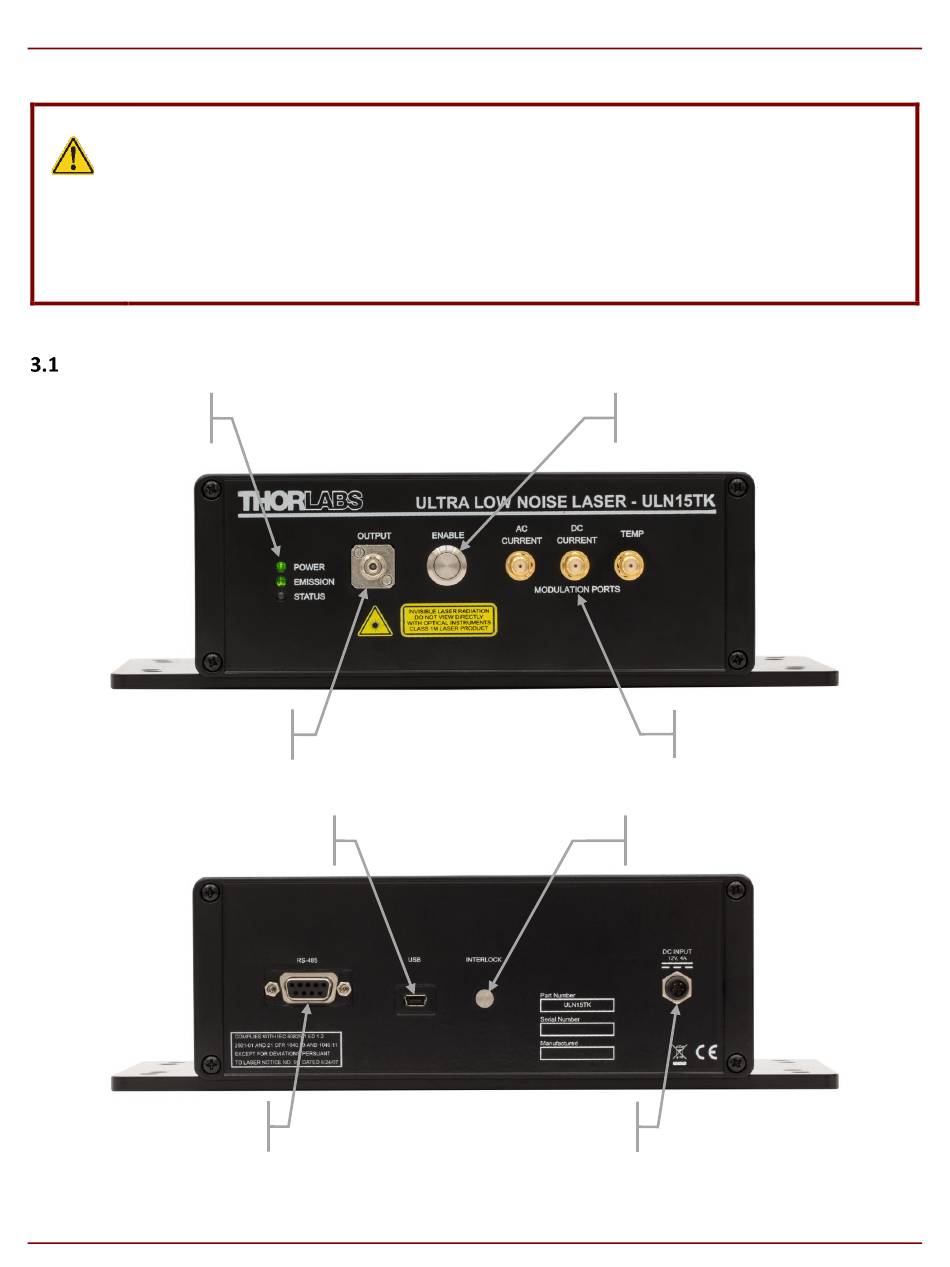

Front and Rear Panels of the ULN15TK Laser System
Laser Enable Push-
Button Switch
Modulation Input
(SMA Female)
Remote Interlock Pin
(2.5 mm Phono Plug, See Chapter 5)
DC Input
