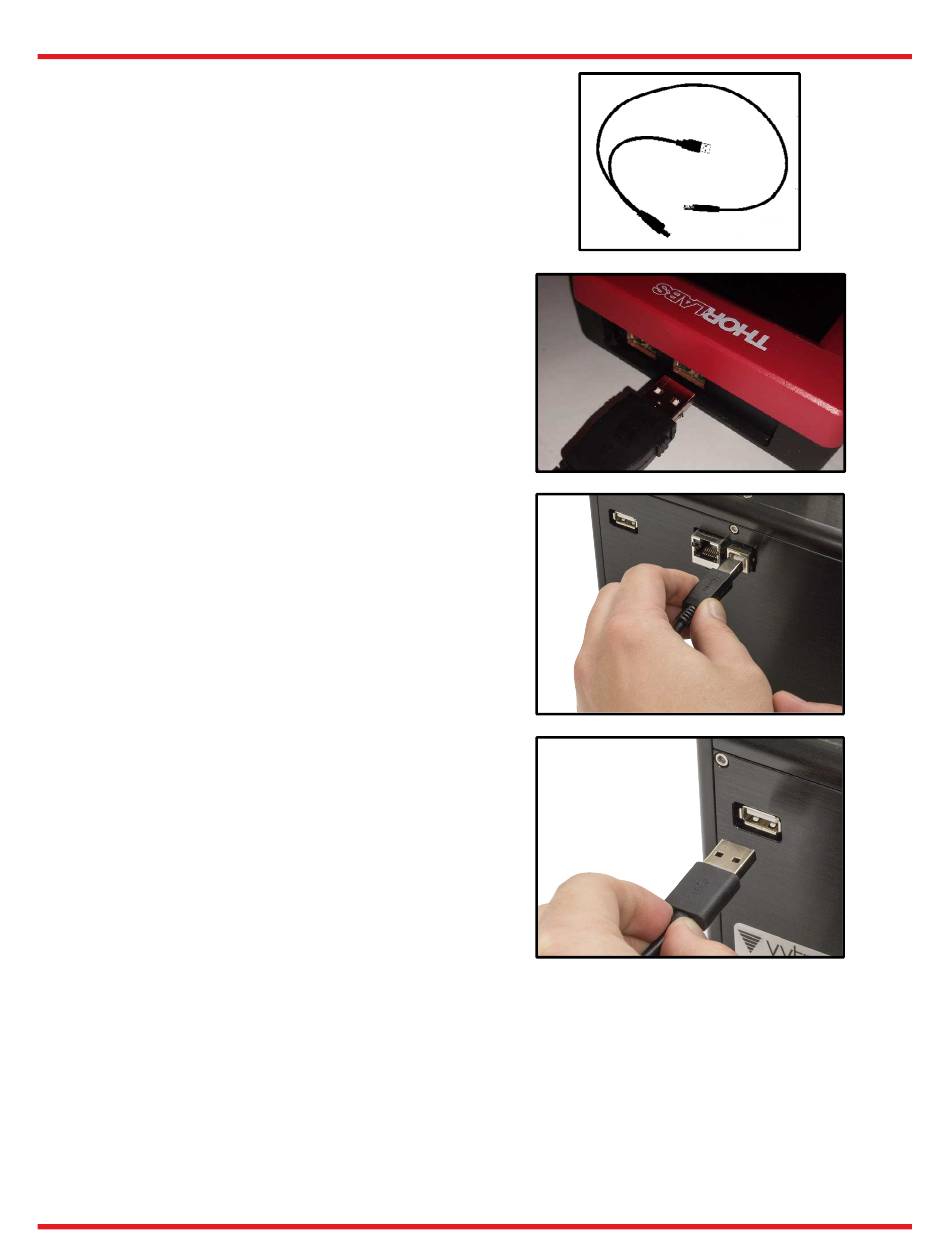

4. Locate the USB Y-cable that is included with the
unit. Locate the USB type A plug that is by itself
on a long pigtail.
5. Plug this USB plug into the top USB socket of the
handset. Note that the USB socket on the side of
the handset is dedicated to connecting a USB
flash drive for importing/exporting fiber files and
updating software. Leave it unpopulated for now.
Plug the USB Type B plug of the Y-cable into its
6.
socket on the back of the unit. This will provide
data to the handset controller.
7. Plug the remaining USB Type A plug of the Y-
cable into its socket on the back of the unit. This
will provide power to the handset controller.
5.6.

Priming the Mold

Before dispensing recoat material, it is necessary to fill the recoat material bottle with recoat material and prime the
recoat mold. Priming the recoat mold will make it easier to dispense the exact right amount of acrylate material
when recoating a fiber, and it will eliminate air bubbles that may be trapped in the recoat material. Refer to Chapter
7 for instructions on performing these steps.
