Fiber Recoaters with Linear Proof Testers Chapter 7: Handset Controller Reference

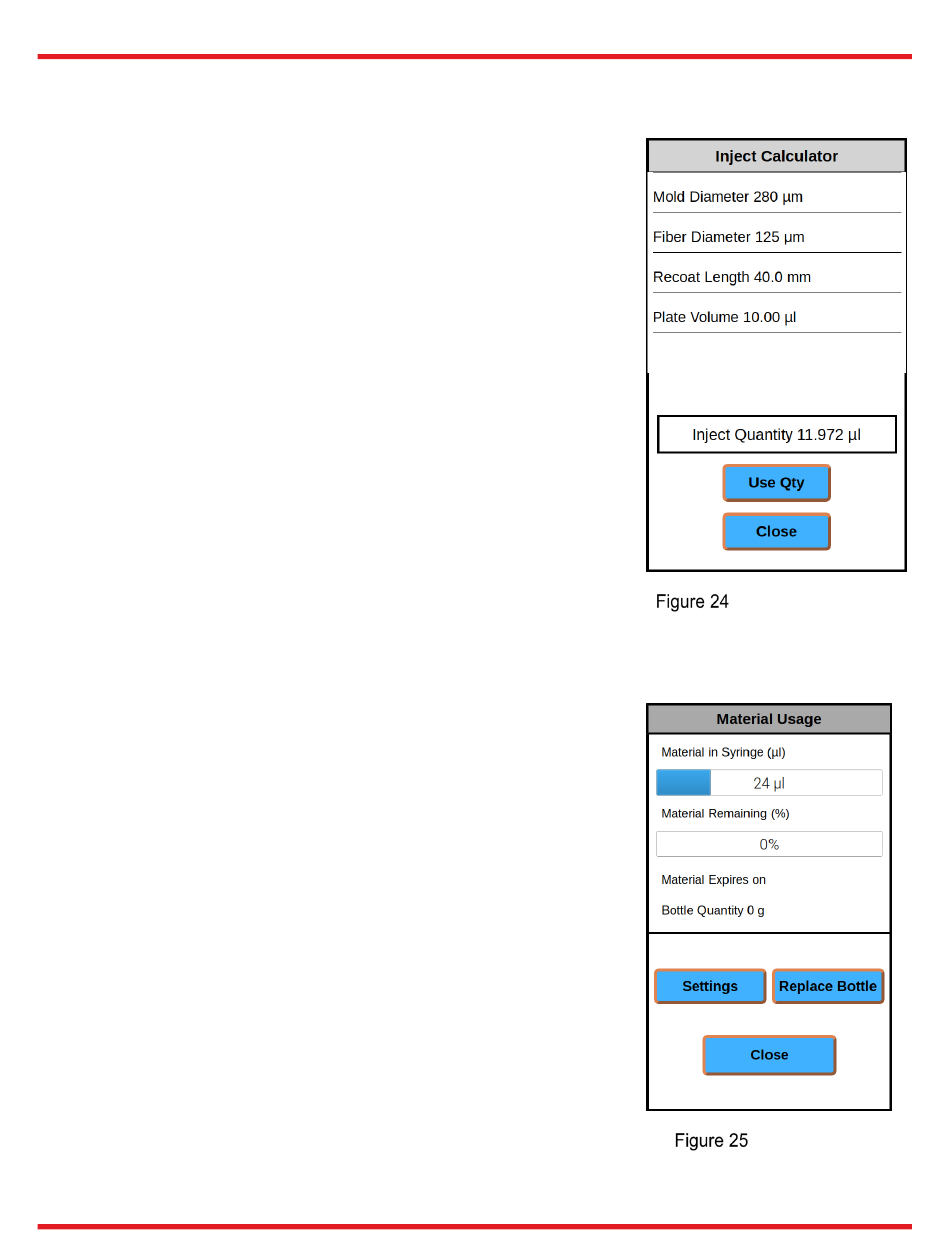

7.4.3. Inject Calculator (PTR406 Only)

The Inject Calculator will calculate the recommended Inject Quantity based
upon the fiber and mold geometry. If you choose to use the recommended
value, press the "Use Qty" button before closing this dialog window.
Inject Calculator

7.4.4. Material Usage (PTR406 Only)

This Dialog Window allows you to keep track of the amount of recoat material
remaining in the bottle as well as the material expiration date. The Material
Remaining automatically gets updated as Recoats are performed as long as
the handset remains connected to the unit.
Material Usage
Rev A, September 14, 2020 Page 23
