Fiber Recoaters with Linear Proof Testers Chapter 7: Handset Controller Reference

7.4.7. Version

The Version screen will display the current module's Firmware, Macro, and
Setup versions. It will also display the Handset application version. In this
screen, the user is able to update the Handset application via an external
USB flash drive. To do this, simply load an appropriate VyController file
supplied by Vytran onto a USB flash drive. Plug the flash drive into the USB
port labeled Program Port and select the Update button on this screen.

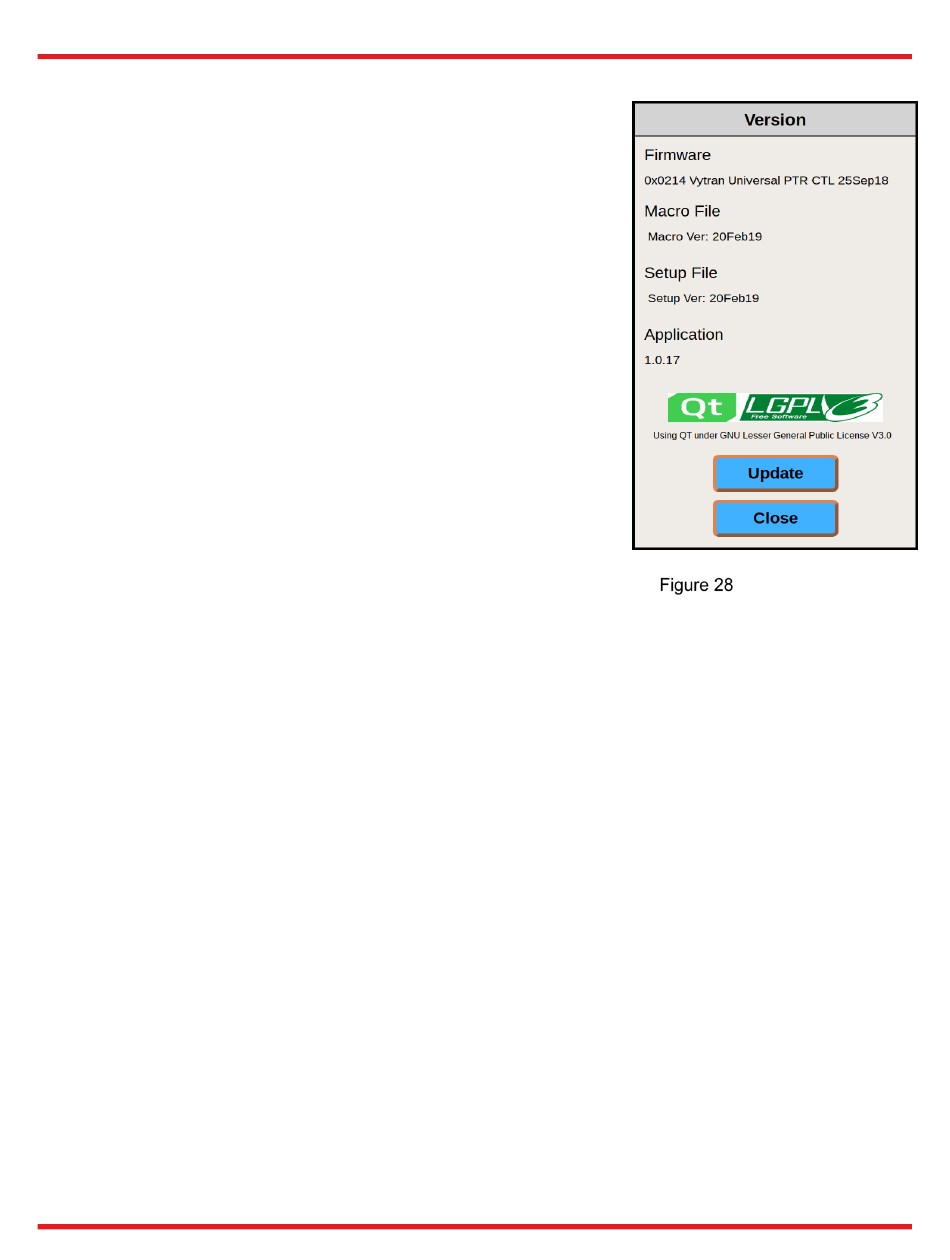

Version Screen

7.4.8. Export Log File

This option allows the user to export a log file of the current instance onto an external USB flash drive.

7.4.9. User

With a password, users can protect the controller and its files from unauthorized access/modification.
The controller defaults to No Password, Full Access enabled.
If a password has been setup and entered, the user can quickly log out using Log Out.
A password is required to change Access Permissions. These permissions are the actual mechanism for protecting
files and parameters.
