Fiber Recoaters with Linear Proof Testers
Chapter 7: Handset Controller Reference

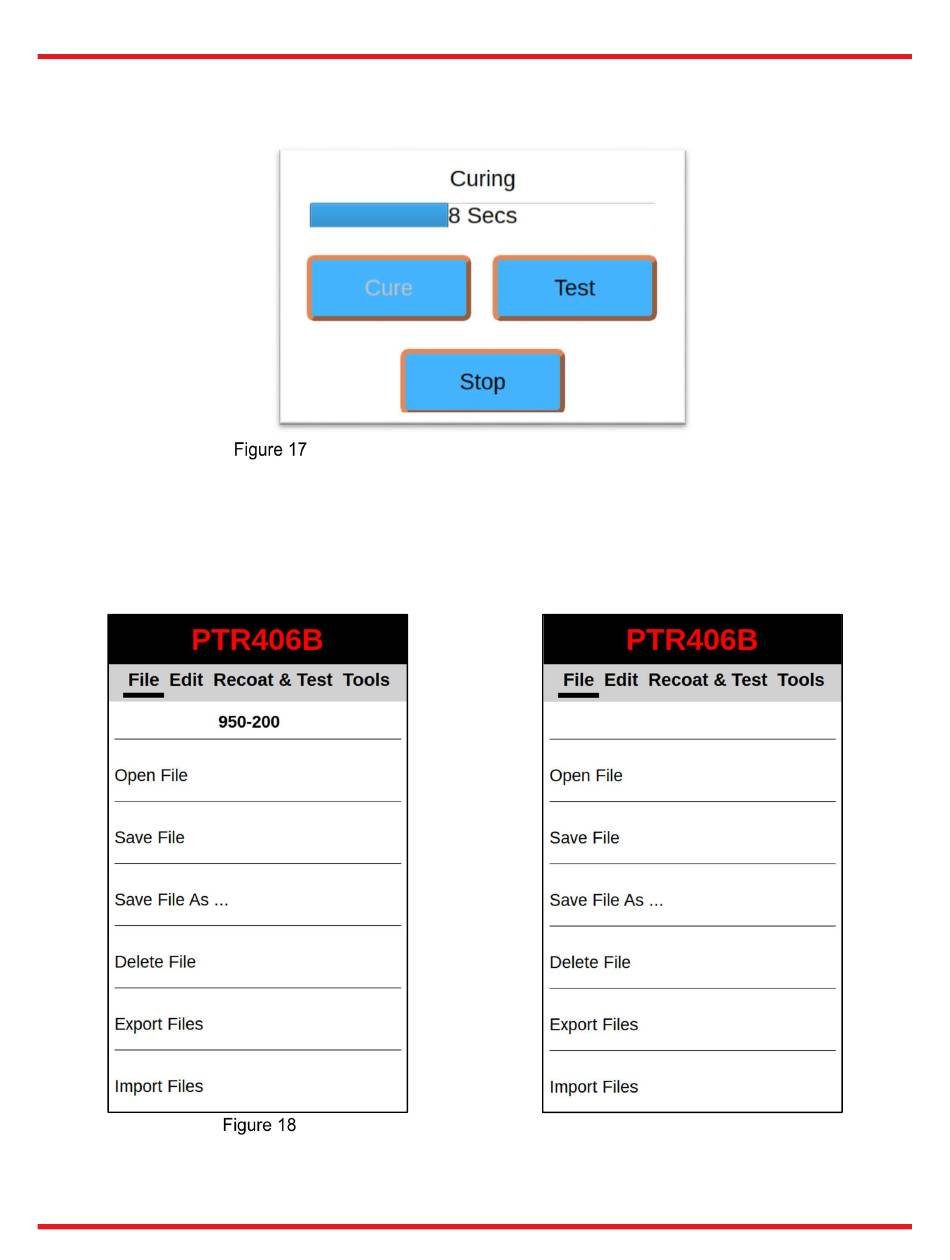

Runtime messages are displayed on the PTR Home screen when something important is happening such as curing
and proof testing from the PTR. These messages are displayed between the parameter list and action buttons
PTR406B Main Screen – Runtime Messages
7.2.
File
Files are opened, saved, saved-as, deleted, exported, or imported from the File Screen. Note that if no file is open,
selecting Save File will open the Save File As screen and the current machine parameters will be saved to the file
specified. Open File and Save File As will open a file selection screen.
File Screen with and without a user file loaded
Page 18
TTN176280-D02
