User Guide
GETTING STARTED

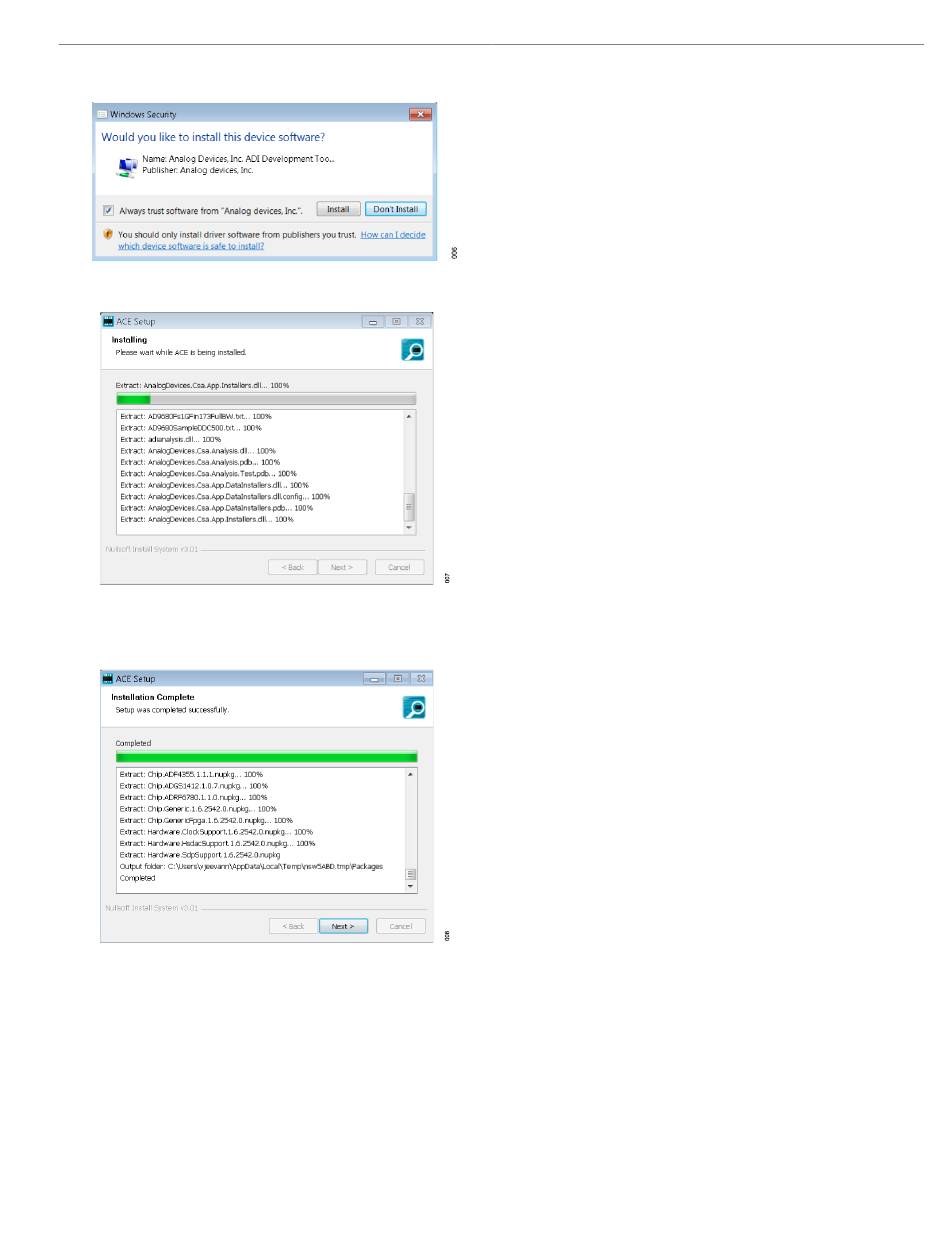

Figure 6. Windows Security Window
Figure 7. Installation in Progress
9. The installation is complete (see
then Finish to complete.
Figure 8. Installation Complete
analog.com
Figure 8). Click Next > and
EVAL-ADAQ7768-1

EVALUATION BOARD SETUP

The EV-ADAQ7768-1FMC1Z connects to the SDP-H1. The SDP-
H1 board serves as the communication link between the PC
and EV-ADAQ7768-1FMC1Z.
between the EV-ADAQ7768-1FMC1Z and SDP-H1 board.
Connecting the EV-ADAQ7768-1FMC1Z and
SDP-H1 to a PC
After installing the ACE software, follow these steps to set up the
EV-ADAQ7768-1FMC1Z and SDP-H1, as shown in
1. Ensure all configuration links are in the appropriate positions,
as detailed in Table 2.
2. Connect the EV-ADAQ7768-1FMC1Z securely to the 160-way
connector on the SDP-H1. The EV-ADAQ7768-1FMC1Z does
not require an external power supply adapter.
3. Connect the SDP-H1 to the PC through the USB cable and
power it up with the 12 V wall adapter included in the SDP-H1
kit.
Figure 11 shows the connections
Figure 9.
