UG-171
EVALUATION BOARD SETUP PROCEDURE
SOFTWARE INSTALLATION
Use the following steps to install the SDP drivers and ADF4153-
4-6-7 software.
1.
Install the SDP drivers by double-clicking SDPDrivers.exe
and following the relevant installation instructions. See the
UG-291
for further instructions on installation of the SDP-S
platform or the
UG-277
2.
Install the Analog Devices ADF4153-4-6-7 PLL software
by double-clicking ADF4153-4-6-7_Setup.msi.
If you are using Windows XP, follow the instructions in the
Windows XP Software Installation Guide section (see
Figure 3 to Figure 7).
If you are using Windows Vista or Windows 7, follow the
instructions in the Windows Vista/7 Software Installation
Guide section (see Figure 8 to Figure 12).
Note that the software requires Microsoft Windows
Installer and Microsoft .NET Framework 3.5 (or higher).
The installer connects to the Internet and downloads
Microsoft .NET Framework automatically. Alternatively,
before running ADF4153-4-6-7_Setup.msi, both the
installer and .NET Framework can be installed from the
CD provided.
3.
Connect your SDP board (black) or USB adapter board
(green) by USB. If you are using an SDP board, the drivers
install automatically, and you are ready to run the software.
If you are using a USB adapter board on Windows XP,
follow the steps in the Windows XP Driver Installation
Guide section (see Figure 13 to Figure 16).
On Windows Vista or Windows 7, the drivers install
automatically.
Downloaded from
Elcodis.com
electronic components distributor
if the SDP-B platform is used.
Windows XP Software Installation Guide

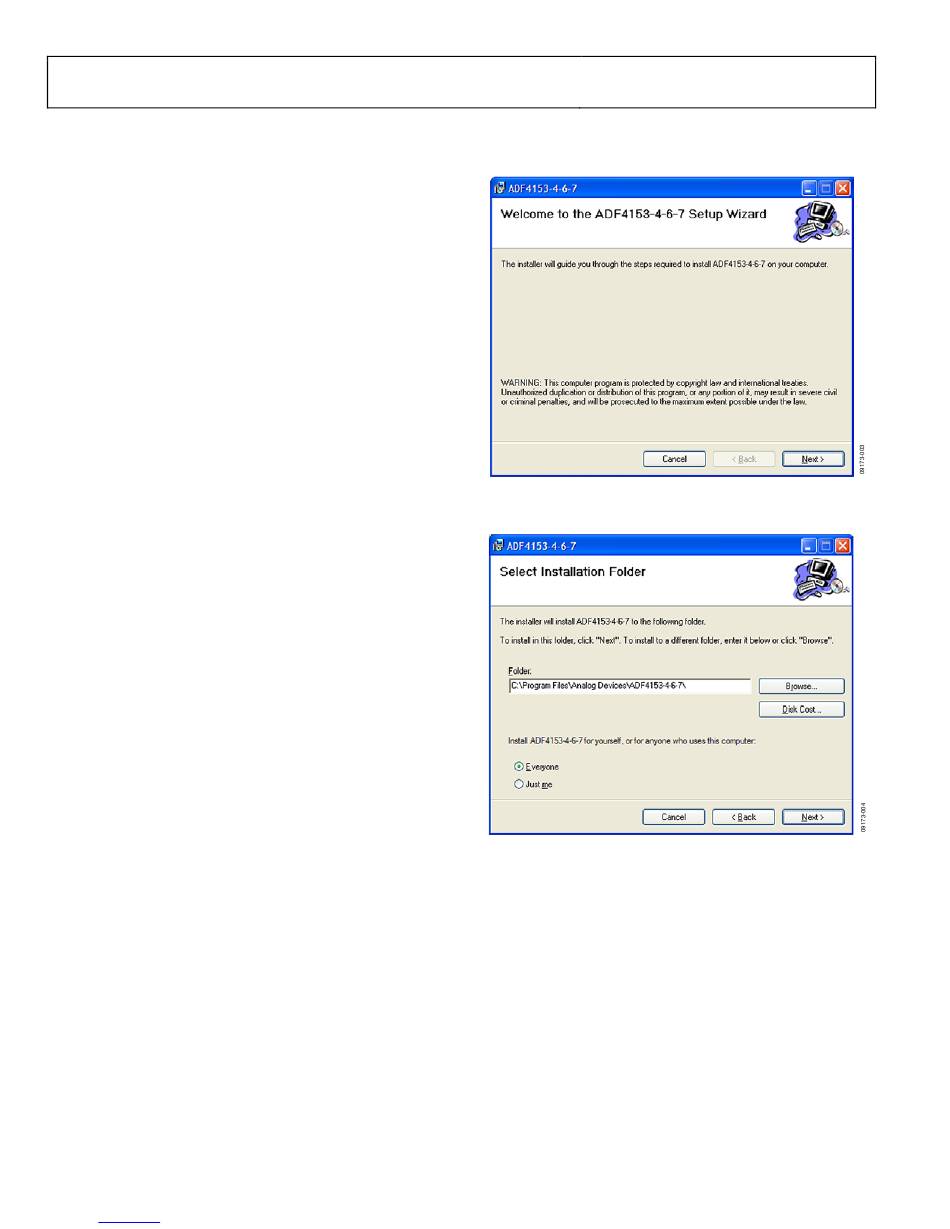

Figure 3. Windows XP ADF4153-4-6-7 Software Installation, Setup Wizard
1.
Click Next.
Figure 4. Windows XP ADF4153-4-6-7 Software Installation, Select
2.
Choose an installation directory and click Next.
Rev. B | Page 6 of 24
Evaluation Board User Guide
Installation Folder
