Route After Answering the Call and Collecting the Digits
In this method, the system answers the incoming call on the FXO Port and plays dial tone to the caller, allowing the
caller to dial the desired number. The number dialed by the caller is considered as the destination number.
To apply this method, do the following:

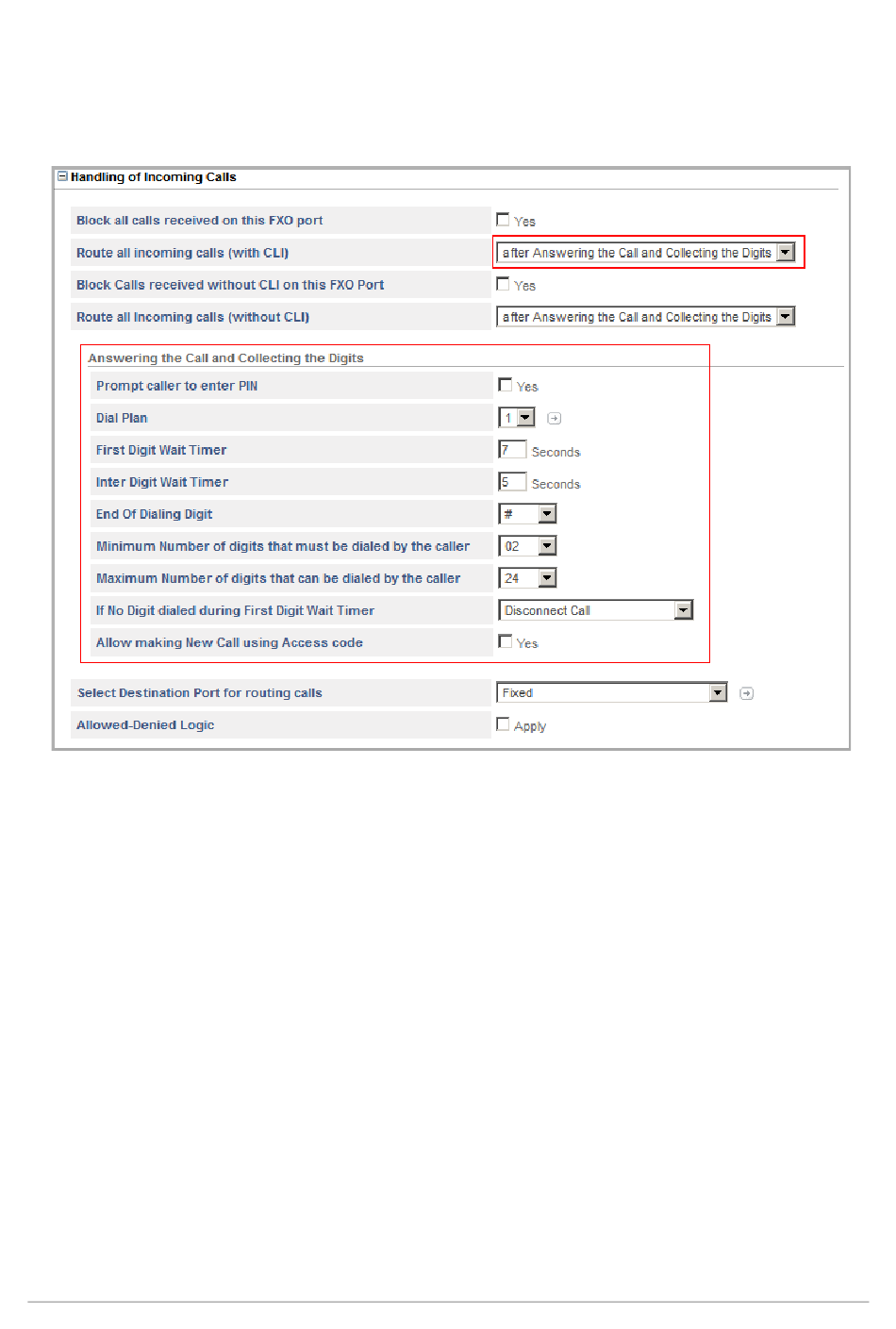

• In Route all incoming calls (with CLI), select after Answering the Call and Collecting the Digits.
The related parameters appear under Answering the Call and Collecting the Digits.
• If you want to enable PIN Authentication on the FXO Port, select the Prompt caller to enter PIN check
box.
If you enable this check box, you must also configure the PIN Authentication Table. To know more
about this feature and for instructions, see
• SETU VGRX supports 8 Dial Plans with total 64 entries in each table. When a user dials a number, it is
compared with the Destination Number configured in the Dial Plan. If a match is found, the system
routes the call immediately without waiting for End of Dialing and if a match is not found, the system will
wait for the End of Dialing and then route the call as per the Destination Port Selection method
configured.
Select the Dial Plan table number you configured for this port. If you have not configured the Dial Plan
table you may do so now,
Matrix SETU VGRX System Manual
"PIN Authentication" under Advanced Settings.
