Internal operating elements

In decompact machines in combination with M1.02 (& M1.01), the internal operating
elements are located in the wire feed unit.
(see the chapter "Machine description" )
For the following processes the cover must be removed; to protect the machine it is
essential that the cover is fitted back into position afterwards.
• Unlock the right-hand cover on the machine.
• Tilt the cover forwards, then remove upwards.
There are other operating elements for parameter setting on the machine.
All details in percent relate to the values stored in the characteristics.
Item Symbol Description
1
0
-15 +15
-30 +30
2
3
4
5
Item No.: 099-004934-EWM01
0
Rotary dial, Wire creep (optional)
+/- 30%
Key Button, Wire inching
Currentless wire inching
Trimmer, Wire burn-back
+/- 50%
"Gas post-flow time" trimmer
Setting range 0.2-10 s
Key button, Gas test
Currentless gas test
Functional characteristics
NOTE
CAUTION

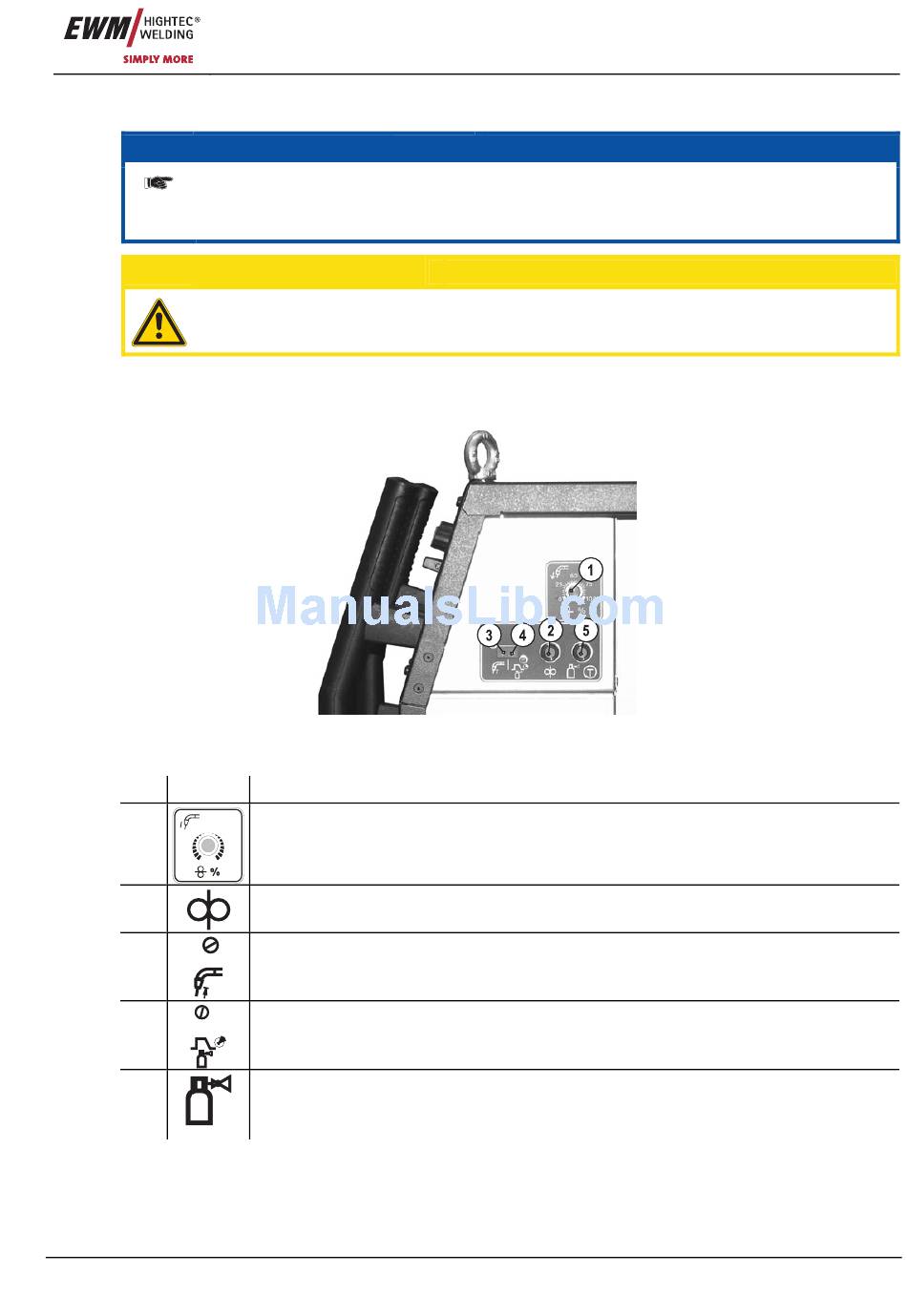

Figure 5-2
Machine control – Operating elements
