Goodrive800 Pro Series Active Rectifier Hardware Manual

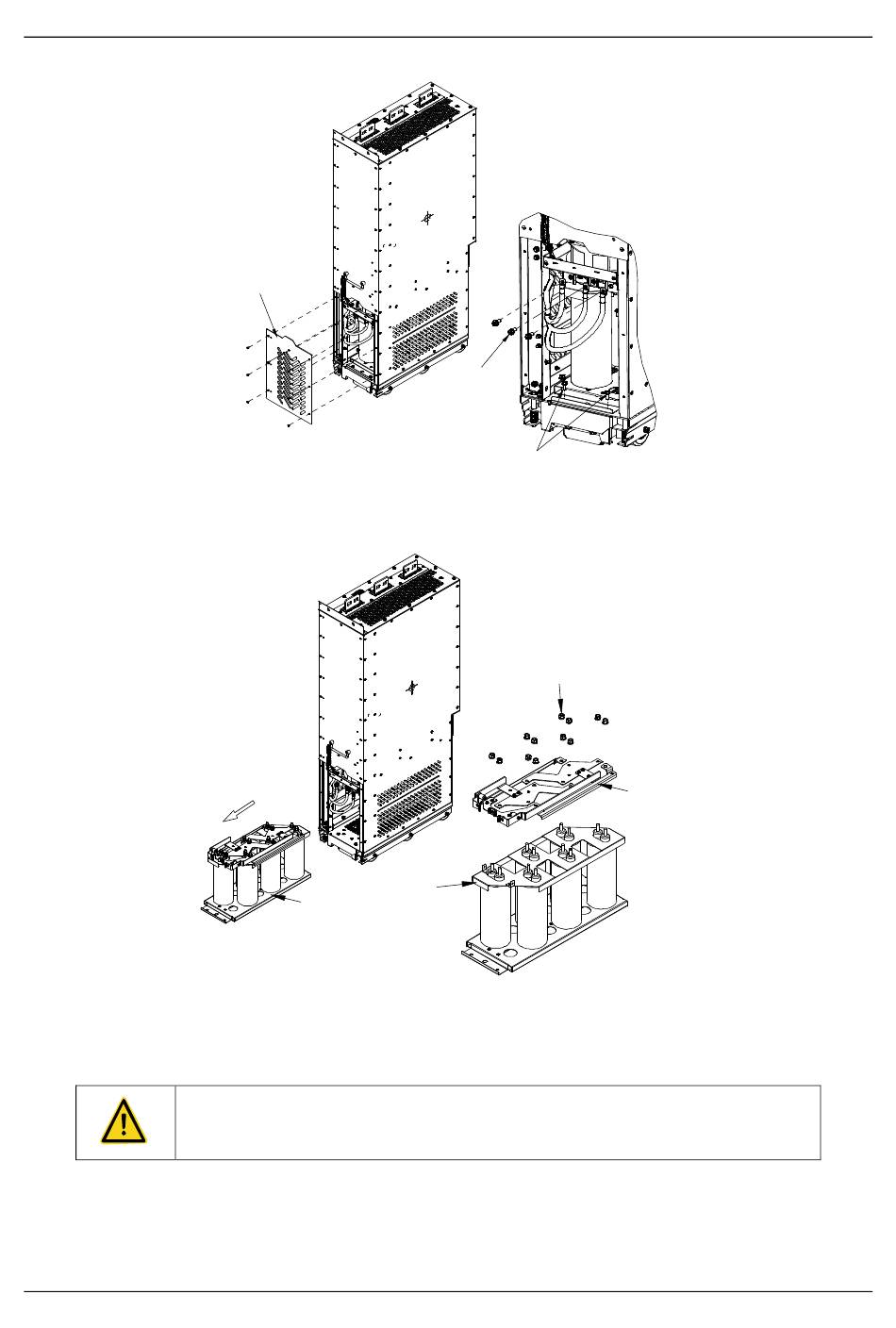

Figure 6-3 Removing front maintenance plate and cables of the active rectifier filter
6.2.3 Fuse replacement
Fuse replacement procedures:
Only qualified electricians can perform this task. Read all the safety precautions.
Ignoring these safety precautions may lead to physical injury or death, or device
damage.
1. Stop the unit, disconnect the AC power supply, and wait for a time no shorter than the waiting time
designated on the unit.
2. Open the cabinet door and check to ensure there is no voltage in the machine.
3. Unscrew four screws of the upper protective plate and remove the upper protective plate.
202305 (V1.0)
Front maintenance plate
Figure 6-4 Removing capacitor assembly of the active rectifier filter
Insulated PC
Capacitor
assembly
Remove the
cable fixing
screws.
Remove the capacitor component fixing
screws.
Nuts+flat
washers
Maintenance and inspection
Copper bar
assembly
58
