2.6 Product structure

2.6.1 Layout of LCL+A8

The following figure shows the layout of LCL+A8.
No.
1
2
3
4
5
202305 (V1.0)
Name
AC fuse
Active rectifier unit
DC fuse

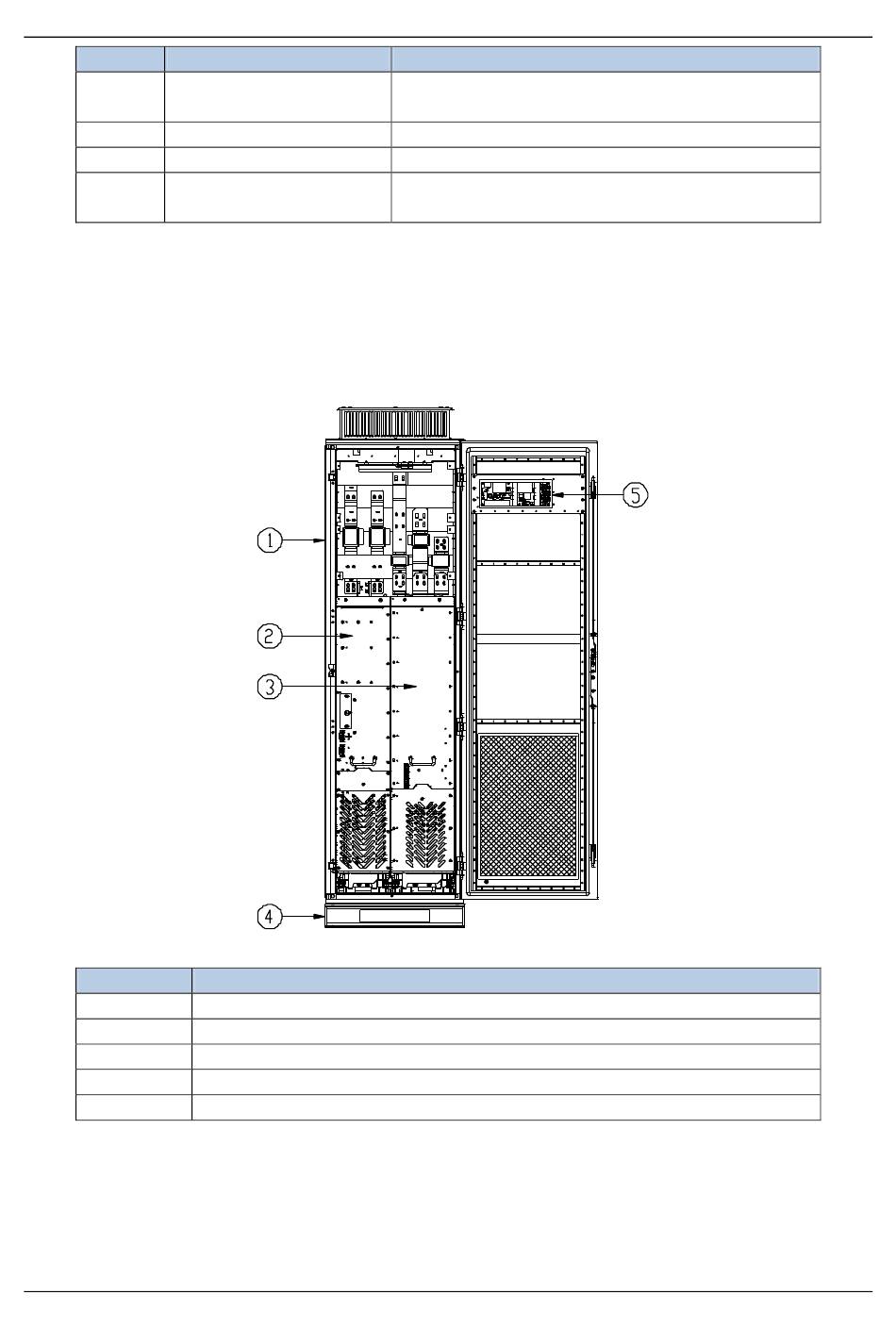

Figure 2-7 Structure of active rectifier frame (LCL+A8)
Description
To protect against overload and short-circuit on the
active rectifier side.
To suppress AC voltage and current harmonics.
To convert AC current to DC current.
To prevent backend short circuit from causing machine
burndown.
Name
Cabinet
Active rectifier unit
Active rectifier filter unit
Channel steel base (optional)
Fan power supply board
Product overview
