Goodrive800 Pro Series Active Rectifier Hardware Manual
3.3.6.6 Unit installation and replacement
The installation procedure is as follows:
1. Insert the unit entry/exit guide rail into the slot of the cabinet front bottom beam. See Figure 3-24.
2. Push the unit into the cabinet.
(1) Align the unit casters to the rail. See Figure 3-25.
(2) Push the active rectifier unit into the cabinet slowly. See Figure 3-26.
202305 (V1.0)

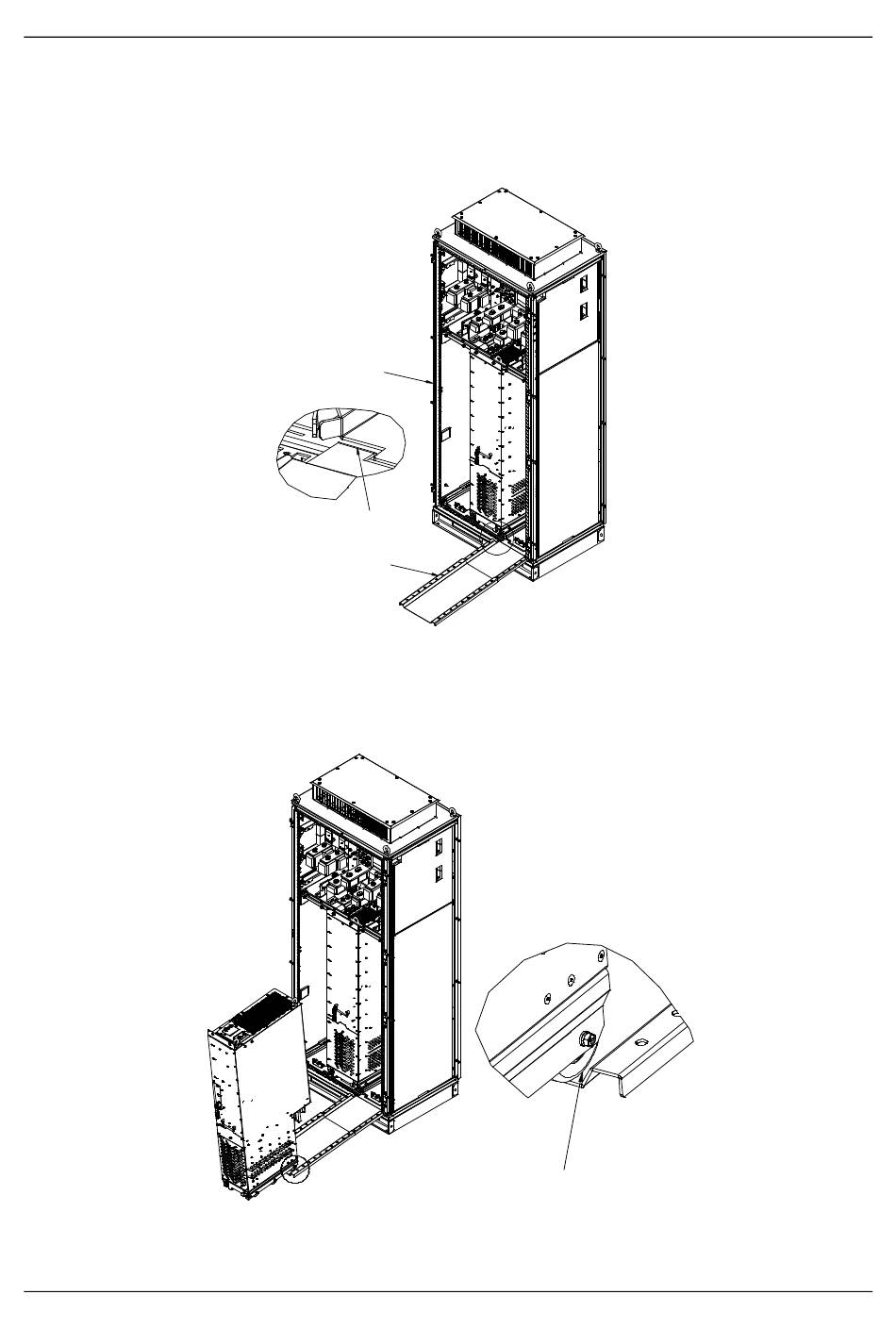

Figure 3-24 Unit entry/exit guide rail placement
Cabinet
Insert the rail plate into
the bottom beam slot
Unit entry/exit
guide rail
Figure 3-25 Unit placement
Align the unit
casters to the rail
Mechanical installation
