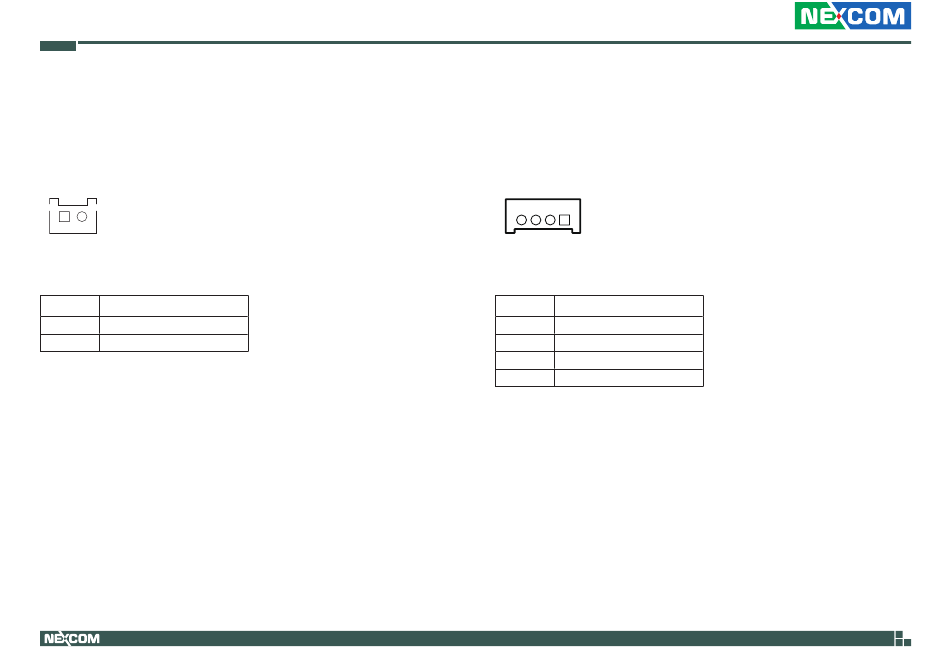

Chapter 2: Jumpers and Connectors
Power Button
Connector type: 1x2 2-pin header JST, 2.0mm pitch
Connector location: J1
1
2
Pin
Definition
1
PWRBT
2
GND
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Backlight Control Input Connector
Connector type: 1x4 4-pin header JST, 2.0mm pitch
Connector location: J8
4
1
Pin
Definition
1
GND
2
Tact Switch input
3
PIR IN
4
VCC3
40
OPPC 1240T/1540T/1740T/1940T Series User Manual
