Front Bezel Design Guide

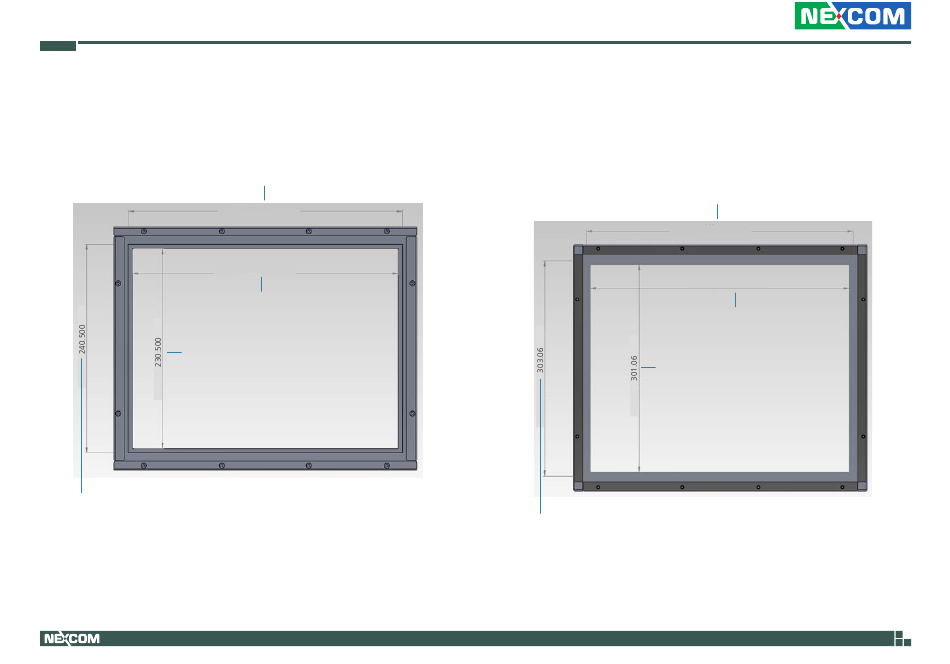

The illustration below shows the dimensions of the panel. It serves as a
guide for you to design the front bezel.
3M for IP65 test tape size 316.5 x 5mm T=1.0
3M for IP65 test tape size 350 x 5mm T=1.0
316.500
378.32
306.500
376.32
Active area cut out size
Active area cut out size
Active area cut out size
Active area cut out size
3M for IP65 test tape size 240.5 x 5mm T=1.0
3M for IP65 test tape size 282.5 x 5mm T=1.0
OPPC 1540T Series
OPPC 1940T Series
74
