Chapter 3: System Setup

Installing a SO-DIMM Memory Module

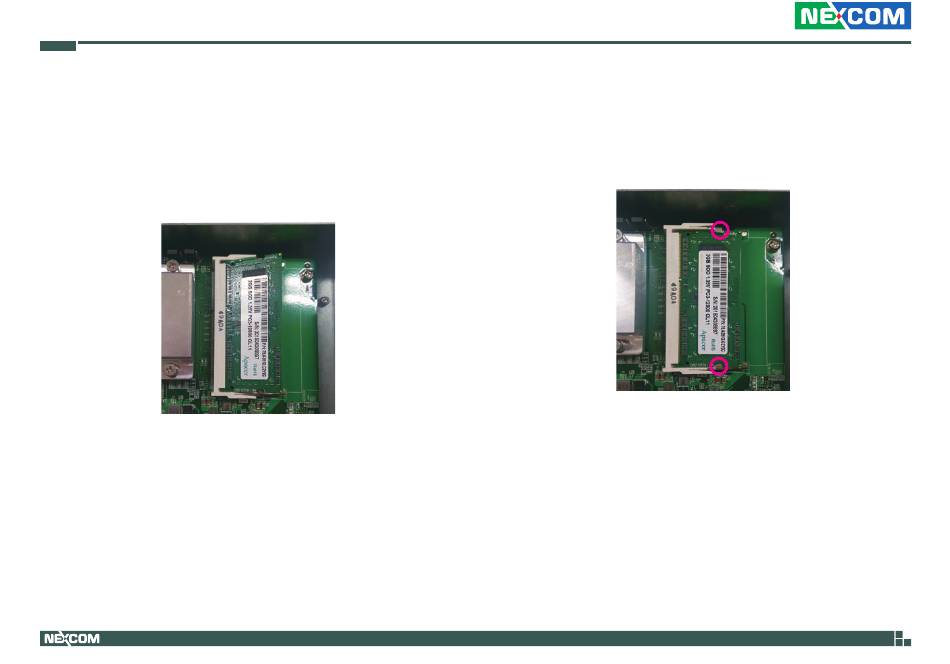

1. With the chassis cover removed, insert the module into the SO-DIMM
socket at an approximately 30 degrees angle. Apply firm even pressure
to each end of the module until it slips into the socket. The gold-plated
connector on the edge of the module will almost completely disappear
inside the socket.
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
2. Push the module down until the clips on both sides of the socket lock
into position. You will hear a distinctive "click" sound, indicating the
module is correctly locked into position.
