Chapter 2: Jumpers and Connectors

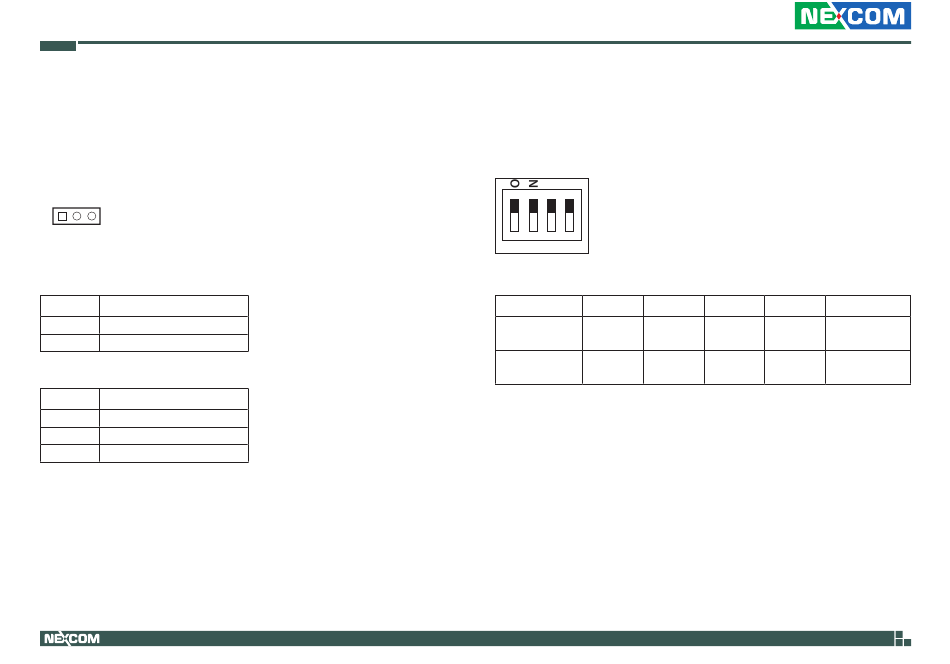

COM2 RI Pin Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP14
1
3
Pin
Settings
1-2 On
RING
2-3 On
+12V
1-2 On: default
Pin
Definition
1
SP2_RI
2
SP2_PSRI
3
12V
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.

Panel Resolution Select

Connector type: 4-pin DIP switch
Connector location: SW2
1 2 3 4
Resolution
SW2-1
1024 x 768
ON
1280 x 1024
OFF
26
SW2-2
SW2-3
SW2-4
OPPC 1540T
OFF
ON
ON
OPPC 1940T
ON
ON
OFF
OPPC 1240T/1540T/1740T/1940T Series User Manual
