Chapter 2: Jumpers and Connectors

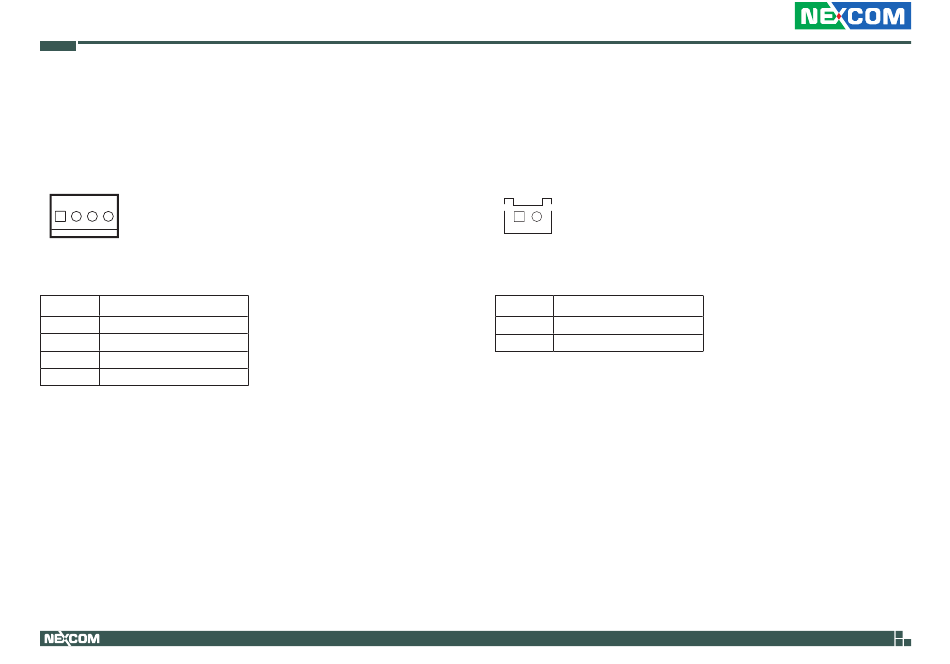

Smart Fan Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: CN4
1
4
Pin
Definition
1
GND
2
+12V
3
CPUFANIN
4
CPUFANOUT
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Battery Connector
Connector type: 1x2 2-pin header JST, 1.25mm pitch
Connector location: J11
1
2
Pin
Definition
1
VBAT
2
GND
42
OPPC 1240T/1540T/1740T/1940T Series User Manual
