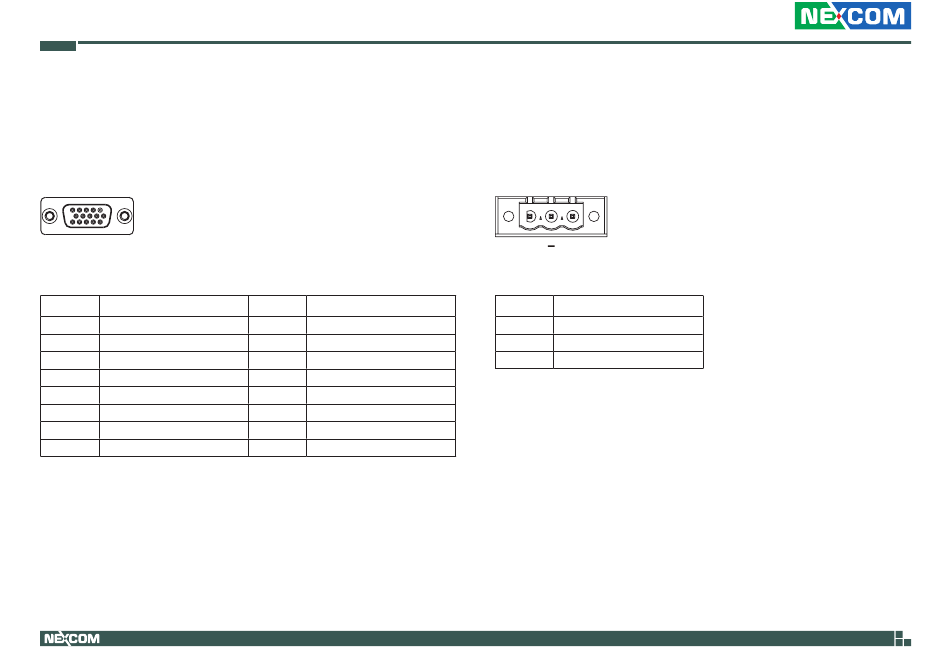

VGA Port

Connector type: DB-15 port, 15-pin D-Sub
Connector location: VGA1
5 1
15 11
Pin Definition
1 Red
3 Blue
5 GND
7 GND
9 +5V
11 N/C
13 HSYNC
15 DDC Clock
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 Green
4 N/C
6 GND
8 GND
10 GND
12 DDC Data
14 VSYNC

12V - 30V DC Power Input

Connector type: Phoenix Contact 1x3 3-pin terminal block
Connector location: CN16
1 3
+
G
Pin Definition
1 DC+
2 DC-
3 GND
